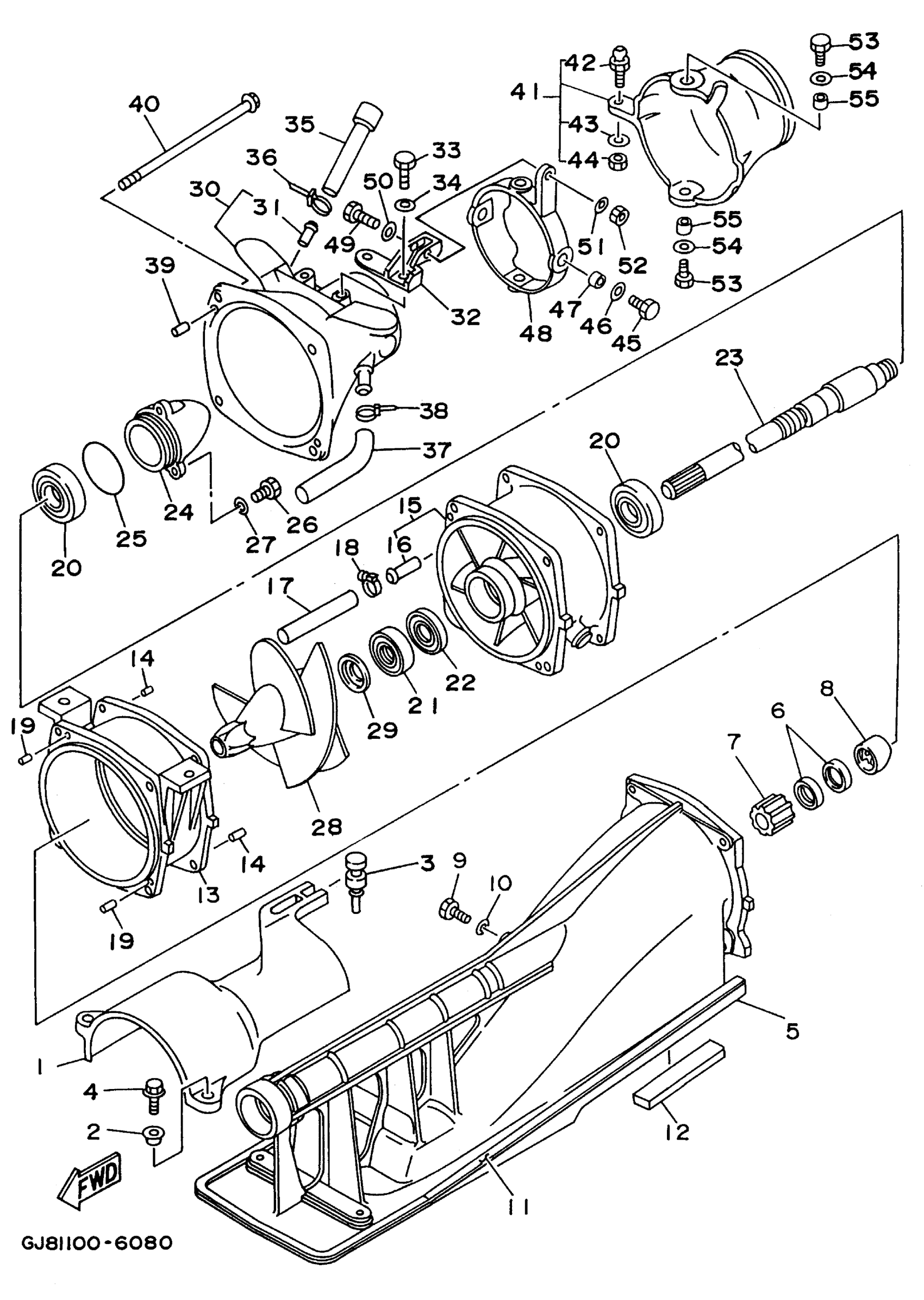

Yamaha RA700BU (WAVE RAIDER 700) 1996 JET UNIT 1 Diagram

#

Description
Price

1

COVER

62T-51381-00-00

Unavailable

2

COLLAR

90387-06M60-00

$6.37

3

GROMMET(6R7)

90480-06M46-00

$9.31

4

BOLT, HEXAGON W/W DEEP RECESS

97E95-06525-00

$1.00

5

DUCT, INTAKE

62T-51311-03-94

Unavailable

6

OIL SEAL(6R8)

93102-18M35-00

Unavailable

7

BUSHING, DRIVE SHAFT

6R8-45318-00-00

Unavailable

8

SPACER

6R8-51348-02-94

Unavailable

9

BOLT

90101-06M27-00

$3.14

10

WASHER, PLAIN (646)

92990-06600-00

$1.84

11

. FELT, PACKING

6R8-51367-01-00

$10.36

12

. FELT, PACKING

63N-51368-00-00

Unavailable

13

HOUSING, IMPELLER

6R8-51312-03-94

$392.41

14

PIN, DOWEL (614)

93606-12019-00

$3.05

15

DUCT, IMPELLER

62T-51315-01-00

Unavailable

16

. NIPPLE

6K8-51129-00-00

$9.62

17

HOSE

90445-14M17-00

Unavailable

18

HOSE CLAMP ASSY(62T)

90450-14M05-00

Unavailable

19

PIN, DOWEL (614)

93606-12019-00

$3.05

20

BEARING (6K8)

93306-205U1-00

Unavailable

21

OIL SEAL(6R7)

93102-25M34-00

Unavailable

22

OIL SEAL(6R7)

93101-25M50-00

Unavailable

23

SHAFT, DRIVE

6R8-45511-00-00

Unavailable

24

CAP

62T-51326-00-00

$71.20

25

. O-RING

93210-46M16-00

$7.15

26

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

27

WASHER, PLAIN (646)

92990-06600-00

$1.84

28

IMPELLER

6R7-51321-00-8S

$328.77

29

SPACER

62T-51348-00-00

$52.82

30

NOZZLE

64R-51318-01-00

$215.14

31

. NIPPLE

6K8-51129-00-00

$9.62

32

STAY

64R-51387-01-94

Unavailable

33

BOLT(7U8)

97080-06020-00

$3.63

34

WASHER, PLAIN (646)

92990-06600-00

$1.84

35

PIPE 1

62T-51673-00-00

Unavailable

36

CLAMP

90465-10098-00

$1.68

37

HOSE (L380)

90445-14M25-00

Unavailable

38

CLAMP

90465-10098-00

$1.68

39

PIN, DOWEL (614)

93606-12019-00

$3.05

40

BOLT(6R8)

90101-06M04-00

Unavailable

41

NOZZLE, DEFLECTOR

62T-51313-02-00

Unavailable

42

. BOLT, JOINT

6R7-42316-00-00

$34.49

43

WASHER, PLATE

90201-06M02-00

$2.20

44

NUT(650)

95380-06700-00

Unavailable

45

BOLT, HEXAGON

97095-08018-00

$3.08

46

.. WASHER, PLATE

92990-08600-00

$2.17

47

COLLAR

90387-08M08-00

$10.75

48

RING,TRIM

62T-51190-01-00

$63.62

49

BOLT(J52)

97080-06035-00

Unavailable

50

WASHER, PLAIN (646)

92990-06600-00

$1.84

51

WASHER, PLATE

90201-06M31-00

$2.80

52

NUT(650)

95380-06700-00

Unavailable

53

BOLT, HEXAGON

97095-08020-00

Unavailable

54

.. WASHER, PLATE

92990-08600-00

$2.17

55

COLLAR(6R7)

90387-08M06-00

Unavailable
