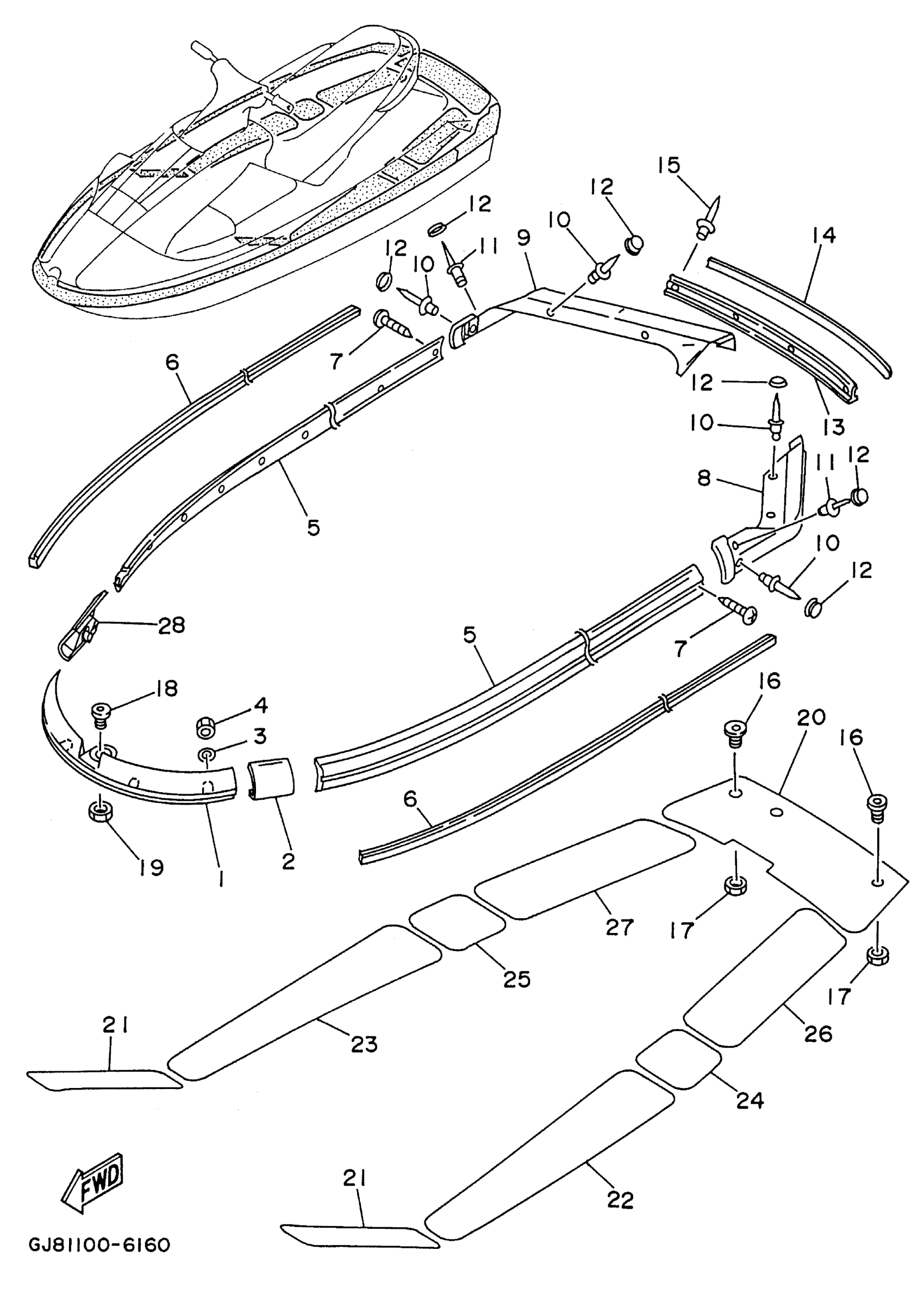

Yamaha RA700BU (WAVE RAIDER 700) 1996 GUNWALE MAT Diagram

#

Description
Price

1

BOW GUNWALE COMP.

GJ1-U2501-10-00

Unavailable

2

JOINT, GUNWALE (LH)

GJ1-6252E-20-00

Unavailable

3

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

4

NUT, SELF-LOCKING

95720-06300-00

Unavailable

5

GUNWALE, SIDE 1

GJ1-U2552-10-00

Unavailable

6

INNER GUNWALE

GJ1-U2519-10-00

Unavailable

7

SCREW,TAPPING

90169-059U1-00

Unavailable

8

GUNWALE, STERN 1

GH1-6251D-20-00

Unavailable

9

GUNWALE, STERN 2

GH1-6251E-20-00

Unavailable

10

RIVET, BLIND

90267-489U8-00

Unavailable

11

RIVET, BLIND

90267-48835-00

Unavailable

12

CAP, HEAD

GH1-6354D-30-00

Unavailable

13

COVER, GUNWALE 1

GJ1-U252C-10-00

Unavailable

14

COVER, GUNWALE 2

GJ1-U252D-10-00

Unavailable

15

RIVET, BLIND

90267-489U8-00

Unavailable

16

ROPE HOLE

FN8-61651-01-00

Unavailable

17

NUT

EU0-61652-00-00

Unavailable

18

ROPE HOLE

GH1-61651-01-00

Unavailable

19

NUT

EU0-61652-00-00

Unavailable

20

MAT, UPPER

GJ1-63581-10-00

Unavailable

21

MAT, STEP 1

GJ1-U351H-10-00

Unavailable

22

MAT, STEP 3

GJ1-U351K-10-00

Unavailable

23

MAT, STEP 4

GJ1-U351M-10-00

Unavailable

24

MAT, STEP 5

GJ1-U351N-10-00

Unavailable

25

MAT, STEP 6

GJ1-U351P-10-00

Unavailable

26

MAT, STEP 7

GH1-6351R-20-00

Unavailable

27

MAT, STEP 8

GH1-6351S-20-00

Unavailable

28

JOINT, GUNWALE (RH)

GJ1-6252F-20-00

Unavailable
