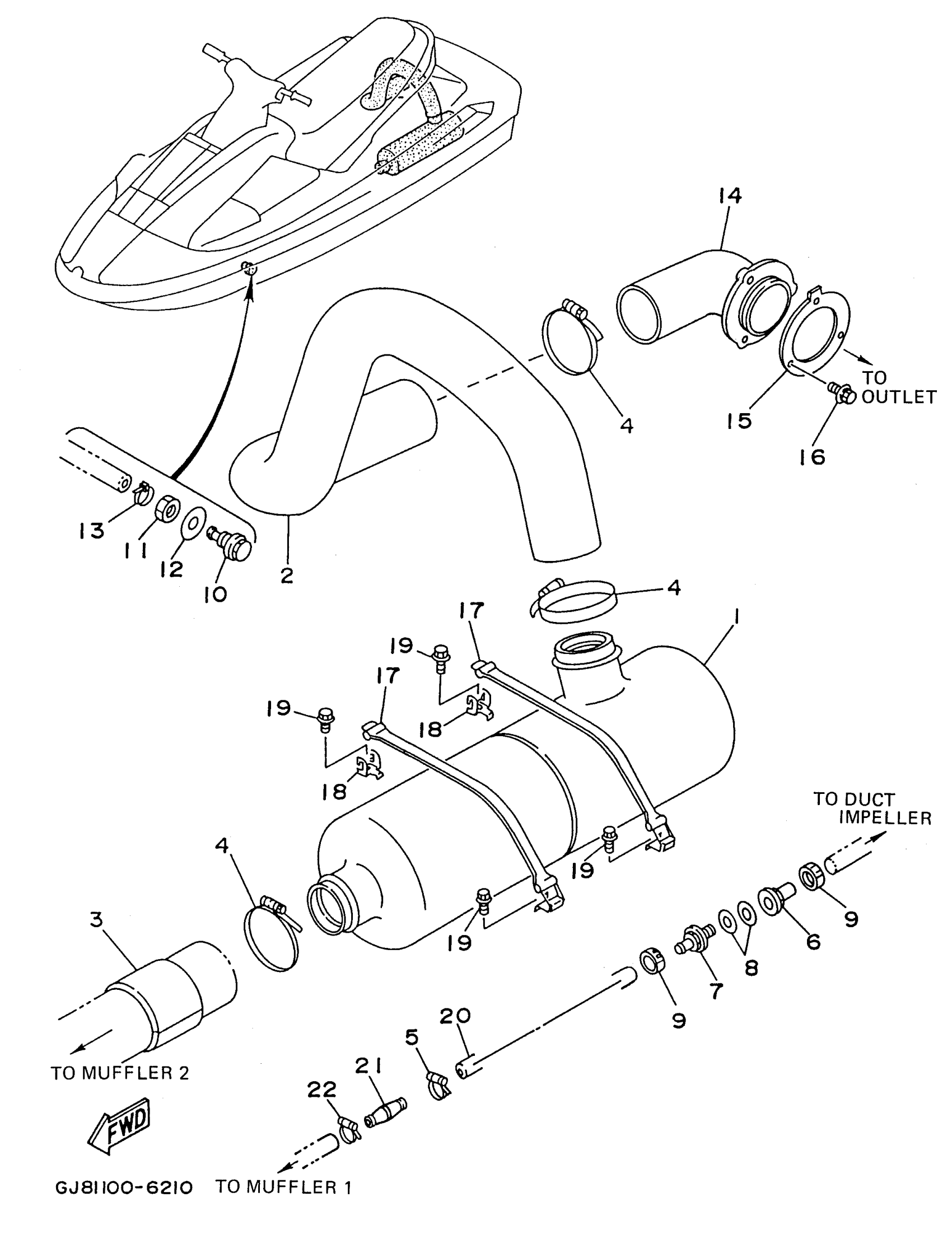

Yamaha RA700BU (WAVE RAIDER 700) 1996 EXHAUST 2 Diagram
#
Description
Price
1
WATER LOCK
GH1-U7550-00-00
Unavailable
2
HOSE
GH6-U7555-00-00
Unavailable
3
PACKING, HOSE 1
GH6-67577-01-00
Unavailable
4
BAND, HOSE 68
90601-168U7-00
Unavailable
5
BAND, HOSE 11
90601-110UC-00
Unavailable
6
CONNECTION, THRU-HULL 1/4
90604-80757-00
Unavailable
7
CONNECTION, THRU-HULL 1/4
90604-80758-00
Unavailable
8
GASKET
90430-13909-00
Unavailable
9
BAND, HOSE 18
90601-118UF-00
Unavailable
10
PILOT, WATER
GJ1-6753B-02-00
Unavailable
11
. NUT
95380-14700-00
Unavailable
13
CLAMP
90465-10098-00
Unavailable
14
THRU-HULL, EXHAUST
GA9-67565-00-00
Unavailable
15
PACKING
GA9-U7525-00-00
Unavailable
16
BOLT, WITH WASHER (EW3)
90119-05912-00
Unavailable
17
HOOK C
GJ1-U7570-00-00
Unavailable
18
HOOK A
EW2-65772-00-00
Unavailable
19
BOLT,FLANGE (EW2)
90105-06900-00
Unavailable
20
HOSE (L1300)
90445-14M22-00
Unavailable
21
CONNECTION
6M6-51142-00-00
Unavailable
22
HOSE CLAMP ASSY(62T)
90450-14M05-00
Unavailable
