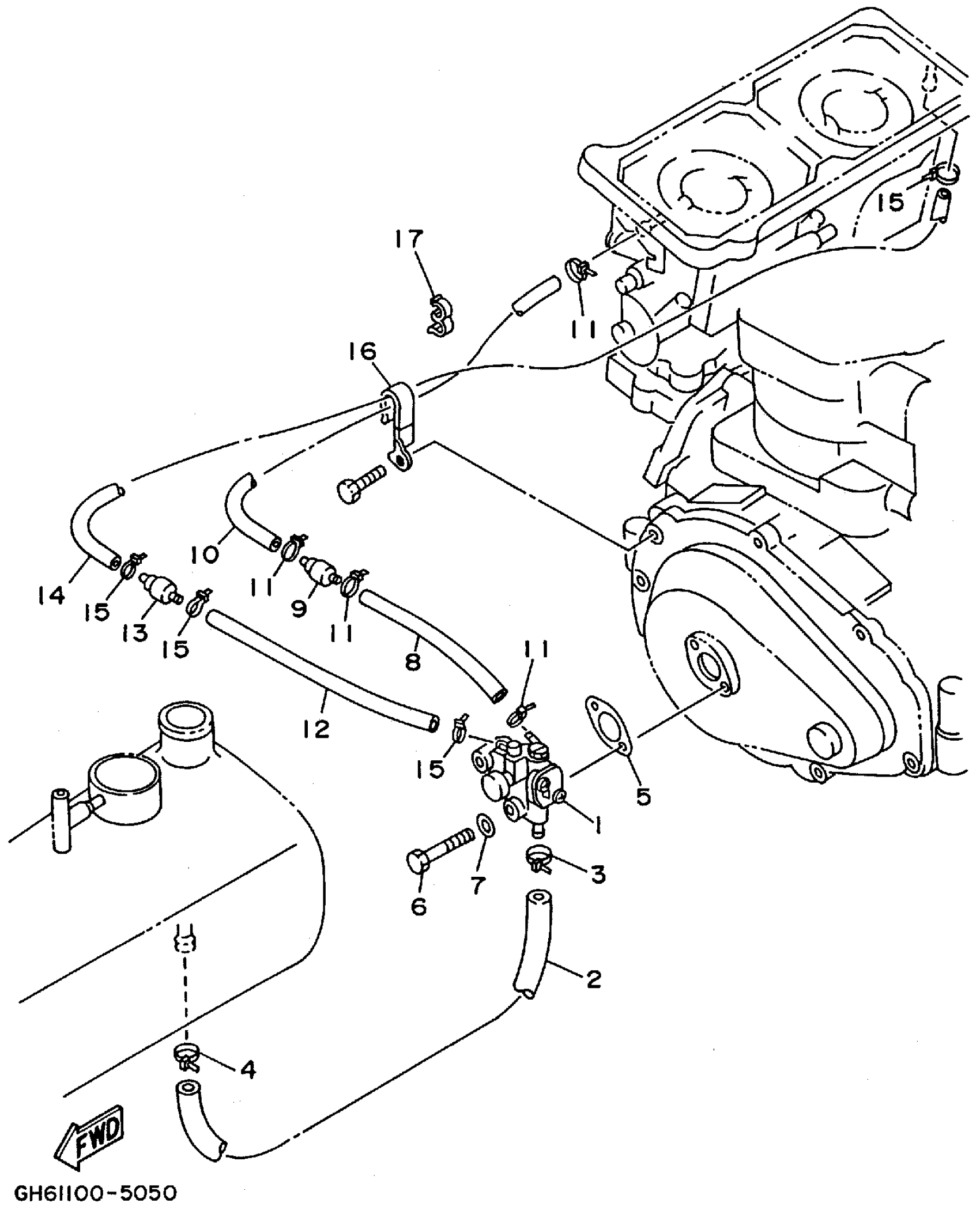

Yamaha RA700AT (WAVE RAIDER DELUXE) 1995 OIL PUMP FOR OIL INJECTION Diagram

#

Description

Price

1

OIL INJECTION PUMP ASSY

62T-13200-13-00

Unavailable

2

HOSE (L700)

90445-117F2-00

$30.99

3

CLAMP

90465-10098-00

Unavailable

4

CLAMP

90465-10098-00

Unavailable

5

. GASKET, PUMP CASE

6R8-13116-A0-00

Unavailable

6

BOLT(J52)

97080-06035-00

Unavailable

7

WASHER, PLAIN (646)

92990-06600-00

$2.80

8

HOSE(62T)

90446-07M48-00

Unavailable

9

VALVE, CHECK

6R3-13183-10-00

Unavailable

10

HOSE(62T)

90446-07M48-00

Unavailable

11

CLAMP

90465-10098-00

Unavailable

12

HOSE(62T)

90446-07M48-00

Unavailable

13

VALVE, CHECK

6R3-13183-10-00

Unavailable

14

HOSE(62T)

90446-07M48-00

Unavailable

15

CLAMP

90465-10098-00

Unavailable

16

CLAMP

90465-08M37-00

Unavailable

17

CLAMP(6R8)

90464-10M38-00

Unavailable
