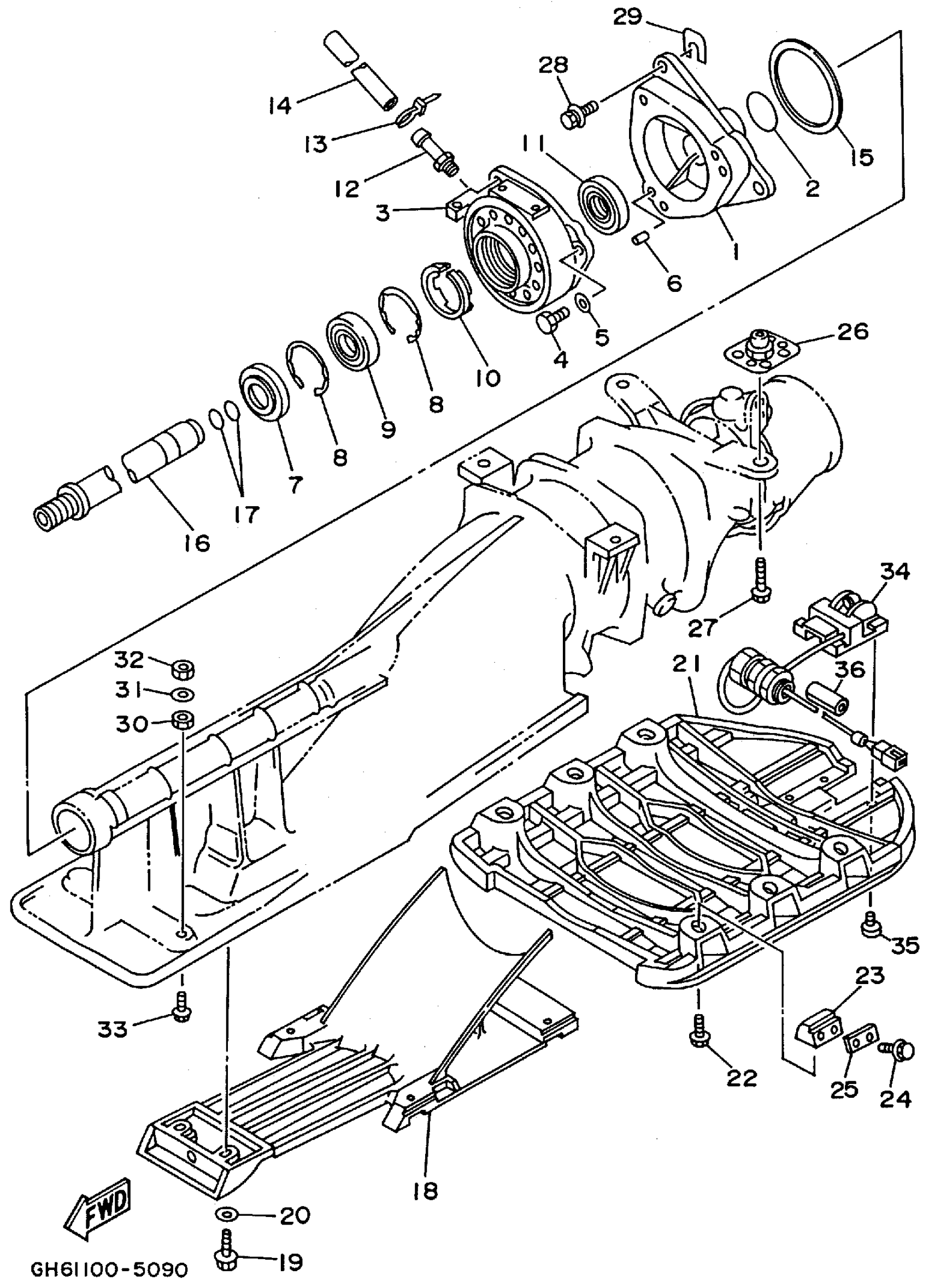

Yamaha RA700AT (WAVE RAIDER DELUXE) 1995 JET UNIT 2 Diagram

#

Description
Price

1

HOUSING, BEARING

62G-45331-01-94

Unavailable

2

O-RING

93210-35M72-00

$11.39

3

HOUSING, BEARING

61X-G5332-00-00

$134.54

4

BOLT (62G)

97095-08025-00

$6.12

5

.. WASHER, PLATE

92990-08600-00

$2.17

6

PIN, DOWEL (614)

93606-12019-00

$3.05

7

OIL SEAL(62T)

93101-25M55-00

$24.36

8

CIRCLIP

93430-47M04-00

$5.18

9

BEARING(62G)

93306-205U6-00

$55.29

10

SPACER

63M-51348-00-00

Unavailable

11

OIL SEAL

93101-24001-00

$30.69

12

NIPPLE, HOSE

61L-45378-00-00

$11.35

13

CLAMP

90465-10098-00

$1.68

14

HOSE (L445)

90445-09M21-00

$20.98

15

SEAL

6K8-45127-00-00

$15.49

16

SHAFT,COUPLER

6R8-51323-10-00

Unavailable

17

O-RING(6R7)

93210-17MA4-00

Unavailable

18

SCREEN, INTAKE

63N-51333-02-94

Unavailable

19

BOLT (FJ0)

97080-06018-00

Unavailable

20

WASHER, PLAIN (646)

92990-06600-00

Unavailable

21

PLATE 2

GJ1-U273B-00-00

Unavailable

22

BOLT, WITH WASHER

90119-08829-00

$3.88

23

PACKING

GJ1-62733-00-00

$44.99

24

BOLT, WITH WASHER

90119-08907-00

$5.45

25

PACKING

GH1-62663-01-00

Unavailable

26

NUT

90179-10925-00

$5.00

27

BOLT

90119-10906-00

Unavailable

28

BOLT, WITH WASHER

90119-08907-00

$5.45

29

SHIM (T=0.5)

GD0-67249-A0-00

$4.99

29

SHIM (T=1.0)

GD0-67249-00-10

Unavailable

29

SHIM (0.5)

GD0-U7249-00-05

$1.94

29

SHIM (0.5)

GD0-U7249-00-05

$1.94

30

NUT, T

90180-06900-00

Unavailable

31

WASHER, PLATE

92990-10600-00

$2.57

32

NUT(624)

95380-10600-00

Unavailable

33

BOLT, WITH WASHER(GH1)

90119-06934-00

Unavailable

34

SENSOR SPEED

GJ1-U8K31-03-00

$131.73

35

SCREW(617)

98780-05012-00

Unavailable

36

GR0MMET

GJ1-6822E-00-00

Unavailable
