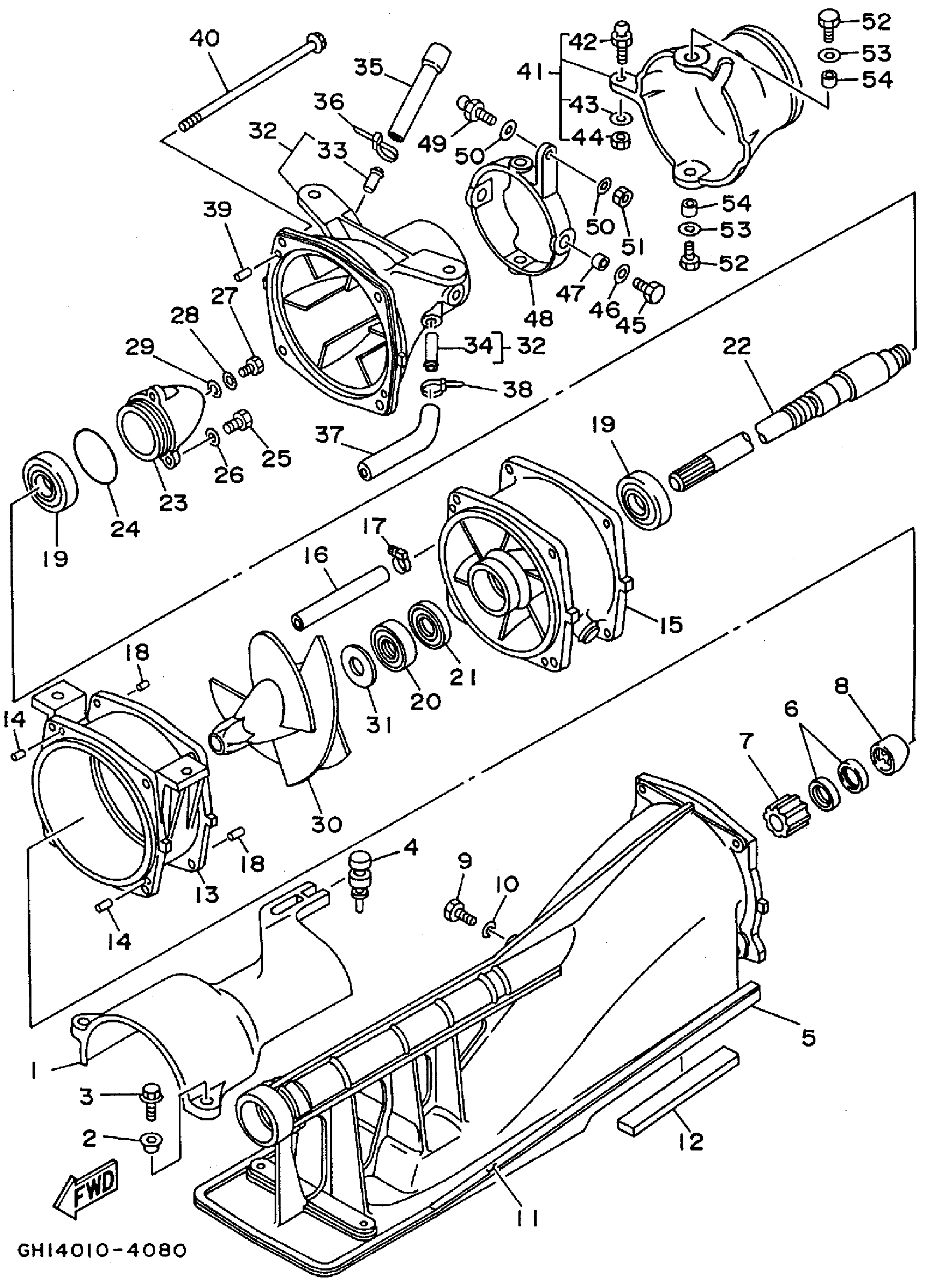

Yamaha RA700AT (WAVE RAIDER DELUXE) 1995 JET UNIT 1 Diagram

#

Description
Price

1

COVER

62T-51381-00-00

Unavailable

2

COLLAR

90387-06M60-00

$6.83

3

BOLT, HEXAGON W/W DEEP RECESS

97E95-06525-00

$1.04

4

GROMMET(6R7)

90480-06M46-00

$9.67

5

DUCT, INTAKE

62T-51311-03-94

Unavailable

6

OIL SEAL(6R8)

93102-18M35-00

Unavailable

7

BUSHING, DRIVE SHAFT

6R8-45318-00-00

Unavailable

8

SPACER

6R8-51348-02-94

Unavailable

9

BOLT

90101-06M27-00

$3.28

10

WASHER, PLAIN (646)

92990-06600-00

$2.80

11

. FELT, PACKING

6R8-51367-01-00

$10.63

12

. FELT, PACKING

63N-51368-00-00

Unavailable

13

HOUSING, IMPELLER

6R8-51312-03-94

$386.55

14

PIN, DOWEL (614)

93606-12019-00

$3.50

15

DUCT, IMPELLER

62T-51315-01-00

Unavailable

16

HOSE

90445-14M17-00

Unavailable

17

HOSE CLAMP ASSY(62T)

90450-14M05-00

Unavailable

18

PIN, DOWEL (614)

93606-12019-00

$3.50

19

BEARING (6K8)

93306-205U1-00

Unavailable

20

OIL SEAL(6R7)

93102-25M34-00

Unavailable

21

OIL SEAL(6R7)

93101-25M50-00

Unavailable

22

SHAFT, DRIVE

6R8-45511-00-00

Unavailable

23

CAP

62T-51326-00-00

$70.13

24

. O-RING

93210-46M16-00

$7.59

25

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

26

WASHER, PLAIN (646)

92990-06600-00

$2.80

27

BOLT(GH1)

97080-06012-00

$2.56

28

WASHER, PLAIN (646)

92990-06600-00

$2.80

29

. GASKET

90430-06M03-00

$2.85

30

IMPELLER

62T-51321-B0-00

Unavailable

31

SPACER

62T-51348-00-00

$49.39

32

NOZZLE

62T-51318-01-94

$208.94

33

. NIPPLE

6K8-51129-00-00

$9.87

34

. NIPPLE

62T-51129-00-00

$18.49

35

PIPE 1

62T-51673-00-00

Unavailable

36

CLAMP (6E5)

90465-13M11-00

Unavailable

37

HOSE (L380)

90445-14M25-00

Unavailable

38

CLAMP (6E5)

90465-13M11-00

Unavailable

39

PIN, DOWEL (614)

93606-12019-00

$3.50

40

BOLT(6R8)

90101-06M04-00

Unavailable

41

NOZZLE, DEFLECTOR

62T-51313-02-00

Unavailable

42

. BOLT, JOINT

6R7-42316-00-00

$34.31

43

WASHER, PLATE

90201-06M02-00

$2.29

44

NUT(650)

95380-06700-00

Unavailable

45

BOLT, HEXAGON

97095-08018-00

$3.02

46

.. WASHER, PLATE

92990-08600-00

$2.41

47

COLLAR

90387-08M08-00

$11.48

48

RING,TRIM

62T-51190-01-00

$62.67

49

. BOLT, JOINT

6R7-42316-00-00

$34.31

50

WASHER, PLATE

90201-06M31-00

$2.80

51

NUT(650)

95380-06700-00

Unavailable

52

BOLT, HEXAGON

97095-08020-00

Unavailable

53

.. WASHER, PLATE

92990-08600-00

$2.41

54

COLLAR(6R7)

90387-08M06-00

Unavailable
