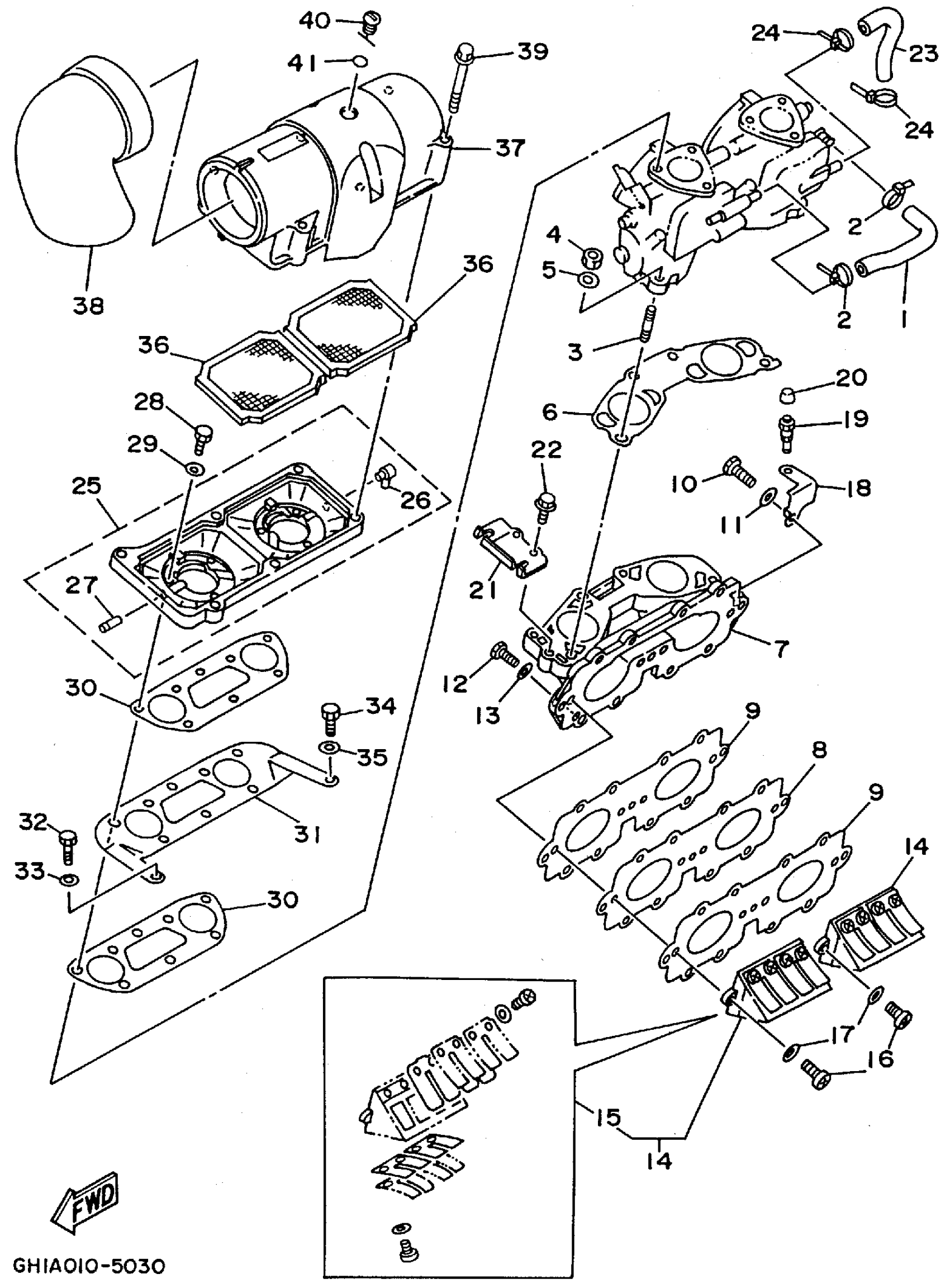

Yamaha RA700AT (WAVE RAIDER DELUXE) 1995 INTAKE Diagram
#
1
PIPE 3
62T-24313-01-00
Unavailable
2
CLAMP
90465-10098-00
Unavailable
3
BOLT,STUD
90116-08M55-00
Unavailable
4
NUT (661)
95380-08600-00
$7.49
5
.. WASHER, PLATE
92990-08600-00
Unavailable
6
. GASKET, MANIFOLD
62T-13556-00-00
Unavailable
7
MANIFOLD, INTAKE
62T-13555-00-00
Unavailable
8
. PLATE,REED VALVE
62T-13624-00-00
Unavailable
9
. GASKET
62T-13566-00-00
Unavailable
10
BOLT(3RV)
97014-06035-00
$2.75
11
WASHER, PLAIN (646)
92990-06600-00
$2.80
12
BOLT
90101-06M27-00
Unavailable
13
WASHER, PLAIN (646)
92990-06600-00
$2.80
14
REED VALVE ASSY
62T-13610-00-00
Unavailable
15
. REED SET
62T-W0004-00-00
Unavailable
16
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
17
WASHER, PLAIN (646)
92990-05600-00
Unavailable
18
PLATE
62T-14243-01-00
Unavailable
19
NIPPLE, GREASE
61L-5169A-00-00
Unavailable
20
CAP, GREASE NIPPLE
663-45119-01-00
Unavailable
21
PLATE
62T-14527-01-00
Unavailable
22
BOLT, WITH WASHER(61B)
97513-06516-00
Unavailable
23
PIPE 4
62T-24314-01-00
Unavailable
24
CLAMP
90465-10098-00
Unavailable
25
COVER, CARBURETOR 2
62T-14284-01-8S
Unavailable
26
NIPPLE, HOSE
6E5-11372-01-00
Unavailable
27
. PIPE, JOINT
6H1-14485-00-00
Unavailable
28
BOLT(7U8)
97080-06020-00
Unavailable
29
WASHER, PLAIN (646)
92990-06600-00
$2.80
30
. GASKET, AIR COOLER COVER 1
62T-13674-00-00
Unavailable
31
PLATE
62T-14255-00-00
Unavailable
32
BOLT (661)
97013-06012-00
Unavailable
33
WASHER, PLAIN (646)
92990-06600-00
$2.80
34
BOLT
90109-06M66-00
Unavailable
35
WASHER, PLATE
90201-06M31-00
Unavailable
36
ELEMENT, AIR CLEANER
62T-14451-00-00
Unavailable
37
COVER, CARBURETOR 1
62T-14283-01-00
Unavailable
38
PIPE
62T-14419-00-00
Unavailable
39
BOLT, WITH WASHER
90119-05M02-00
Unavailable
40
GROMMET
62T-14435-00-00
Unavailable
41
. O-RING
93210-13M63-00
Unavailable
