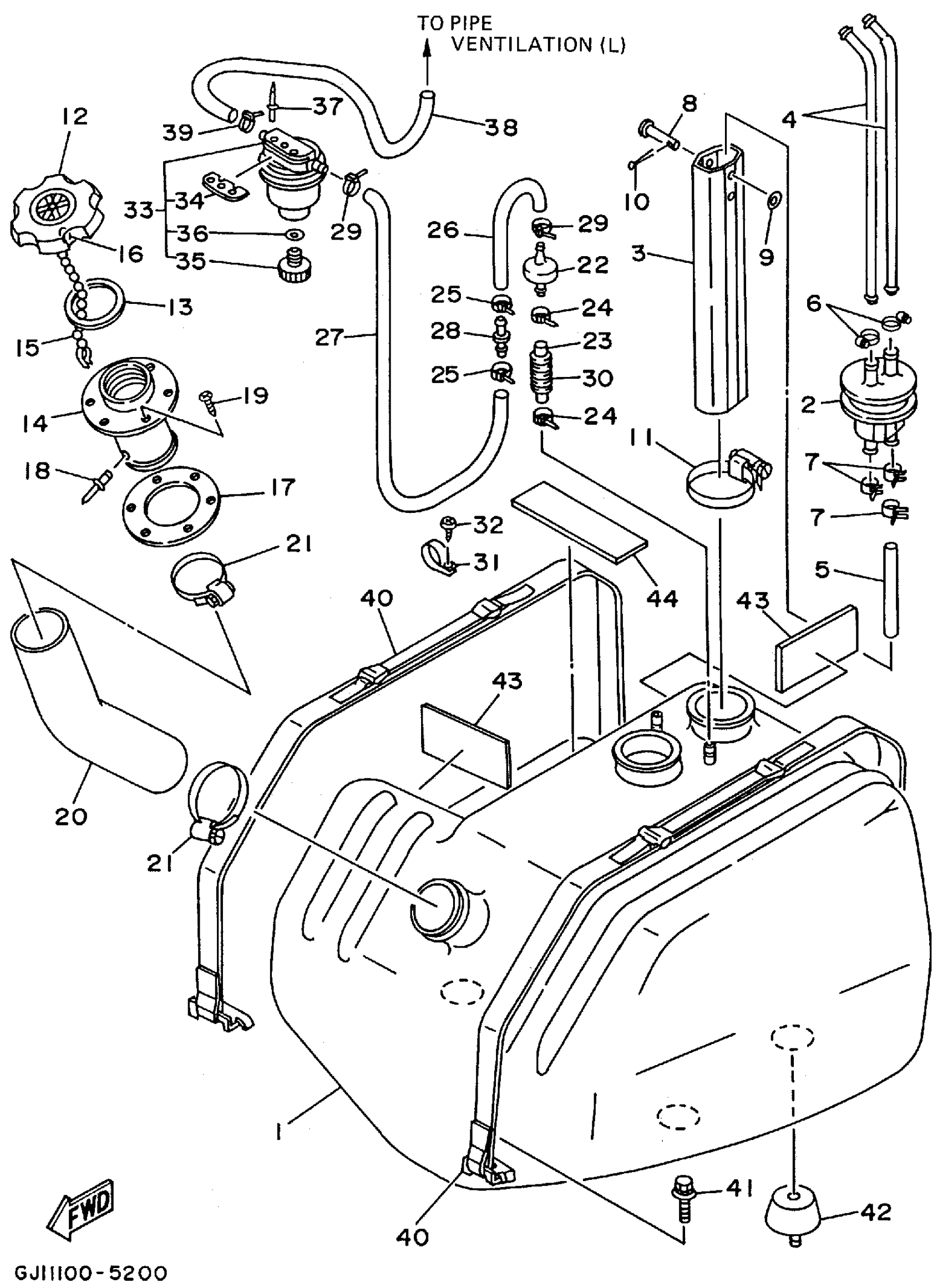

Yamaha RA700AT (WAVE RAIDER DELUXE) 1995 FUEL TANK Diagram
#
1
TANK, FUEL
GJ1-U7711-00-00
Unavailable
2
PIPE, JOINT
FJ0-67713-01-00
Unavailable
3
SLEEVE 1
FJ0-67716-01-00
Unavailable
4
PIPE, SUCTION 3
FJ0-67714-02-00
Unavailable
5
HOSE (L198)
90445-11293-00
$9.49
6
BAND, HOSE 11
90601-11062-00
Unavailable
7
CLIP (7K7)
90467-11044-00
$8.49
8
PIN (FJ0)
91790-05040-00
$7.49
9
WASHER, PLAIN (646)
92990-05600-00
$0.80
10
PIN. COTTER
91490-16010-00
Unavailable
11
BAND, HOSE 62
90601-162U5-00
Unavailable
12
CAP, FUEL FILLER
GA7-67831-01-00
Unavailable
13
PACKING 1
EU0-67832-00-00
Unavailable
14
SOCKET
FN8-67833-00-00
Unavailable
15
. CHAIN BALL
EU0-67835-00-00
Unavailable
16
COUPLING
EU0-67839-00-00
Unavailable
17
PACKING, FUEL FILLER
EU0-67834-00-00
Unavailable
18
. RIVET, BLIND
90267-40935-00
Unavailable
19
SCREW, FLAT HEAD TAPPING
EU0-U7869-00-00
Unavailable
20
HOSE
GJ1-U7844-00-00
Unavailable
21
BAND, HOSE 55
90601-155U4-00
Unavailable
22
CHECK VALVE
EU0-67767-31-00
Unavailable
23
HOSE
90699-50100-00
Unavailable
24
CLAMP
90465-10098-00
Unavailable
25
CLAMP
90465-10098-00
Unavailable
26
HOSE, AIR VENT
EU0-67856-50-00
Unavailable
27
HOSE
90699-50100-00
Unavailable
28
PIPE, JOINT 1
6G8-24376-00-00
Unavailable
29
CLAMP
90465-10098-00
Unavailable
30
TUBE
GJ1-6773D-00-00
Unavailable
31
CLIP, NYLON 18
90600-918U3-00
Unavailable
32
SCREW, PANHEAD TAPPING (J20)
97780-60116-00
Unavailable
33
FILTER, VENT ASSY
F2F-6214A-00-00
Unavailable
34
. PLATE, FILTER
EW2-62142-00-00
Unavailable
35
. PLUG, DRAIN
70R-24543-00-00
Unavailable
36
. O-RING
70R-24489-00-00
Unavailable
37
RIVET, BLIND
90267-489U2-00
Unavailable
38
HOSE (L180)
90445-094K7-00
Unavailable
39
CLAMP
90465-10098-00
Unavailable
40
BELT, TANK 1
GJ1-67743-01-00
Unavailable
41
BOLT, WITH WASHER
90119-08903-00
Unavailable
42
DAMPER,FUEL TANK
GH1-6782B-01-00
Unavailable
43
MAT 1
GJ1-6759B-00-00
Unavailable
44
MAT 2
GJ1-6759C-00-00
Unavailable
