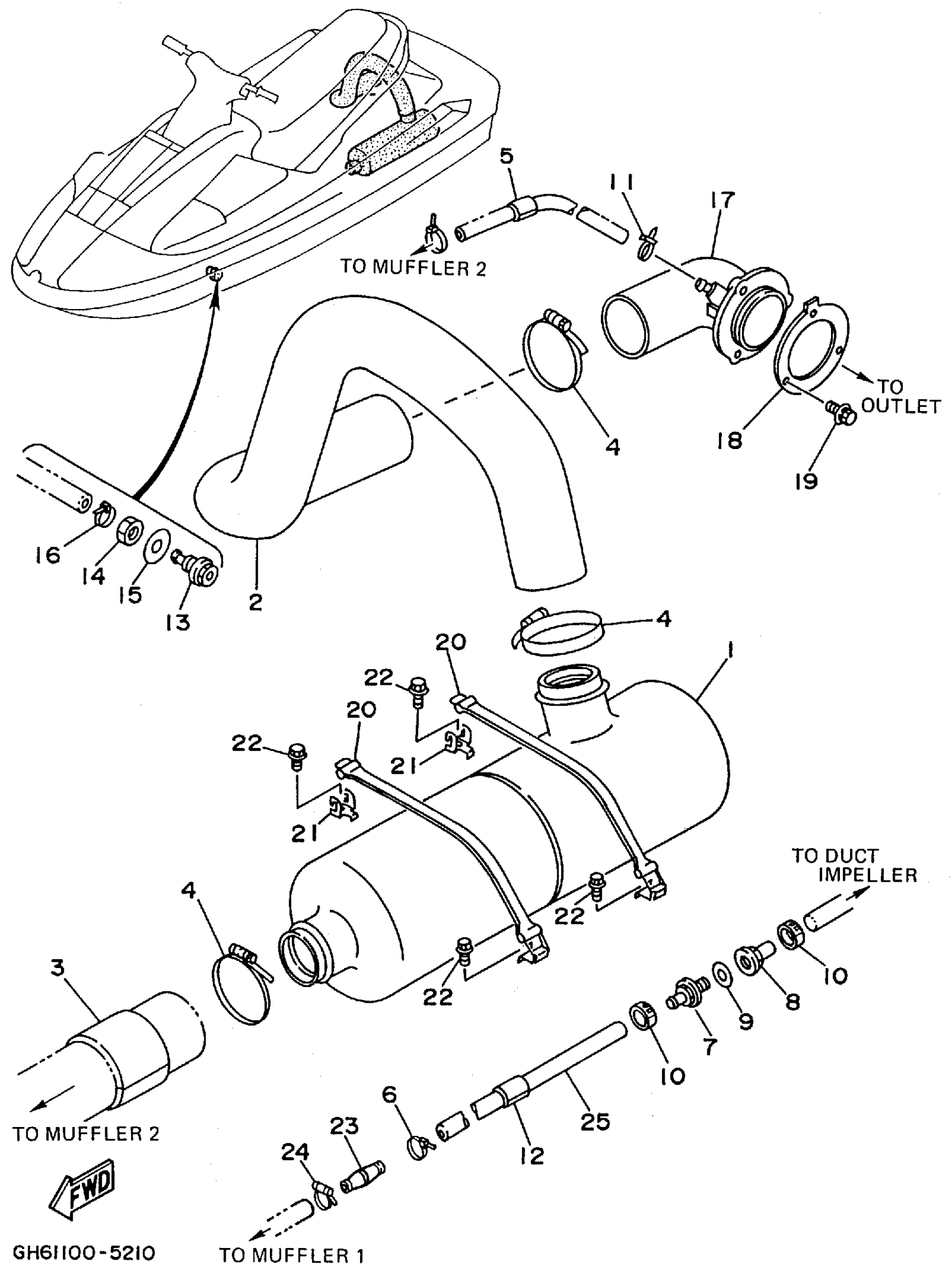

Yamaha RA700AT (WAVE RAIDER DELUXE) 1995 EXHAUST 2 Diagram
#
Description
Price
1
WATER LOCK
GH1-67550-02-00
Unavailable
2
HOSE
GH6-U7555-00-00
Unavailable
3
PACKING, HOSE 1
GH6-67577-01-00
Unavailable
4
BAND, HOSE 68
90601-168U7-00
Unavailable
5
PACKING, HOSE 2
GJ1-67578-10-00
Unavailable
6
BAND, HOSE 11
90601-110UC-00
Unavailable
7
CONNECTION, THRU-HULL 1/4
90604-80758-00
Unavailable
8
CONNECTION, THRU-HULL 1/4
90604-80757-00
Unavailable
9
GASKET
90430-13909-00
Unavailable
10
BAND, HOSE 18
90601-118UF-00
Unavailable
11
BAND
90601-200U1-00
Unavailable
12
PACKING, HOSE 2
GJ1-67578-10-00
Unavailable
13
PILOT, WATER
GJ1-6753B-02-00
Unavailable
14
. NUT
95380-14700-00
Unavailable
16
CLAMP
90465-10098-00
Unavailable
17
EXHAUST, THRU-HALL COMP.
GH6-67560-00-00
Unavailable
18
PACKING
GA9-U7525-00-00
Unavailable
19
BOLT, WITH WASHER (EW3)
90119-05912-00
Unavailable
20
HOOK C
GJ1-U7570-00-00
Unavailable
21
HOOK A
EW2-65772-00-00
Unavailable
22
BOLT,FLANGE (EW2)
90105-06900-00
Unavailable
23
CONNECTION
6M6-51142-00-00
Unavailable
24
HOSE CLAMP ASSY(62T)
90450-14M05-00
Unavailable
25
HOSE (L1300)
90445-14M22-00
Unavailable
