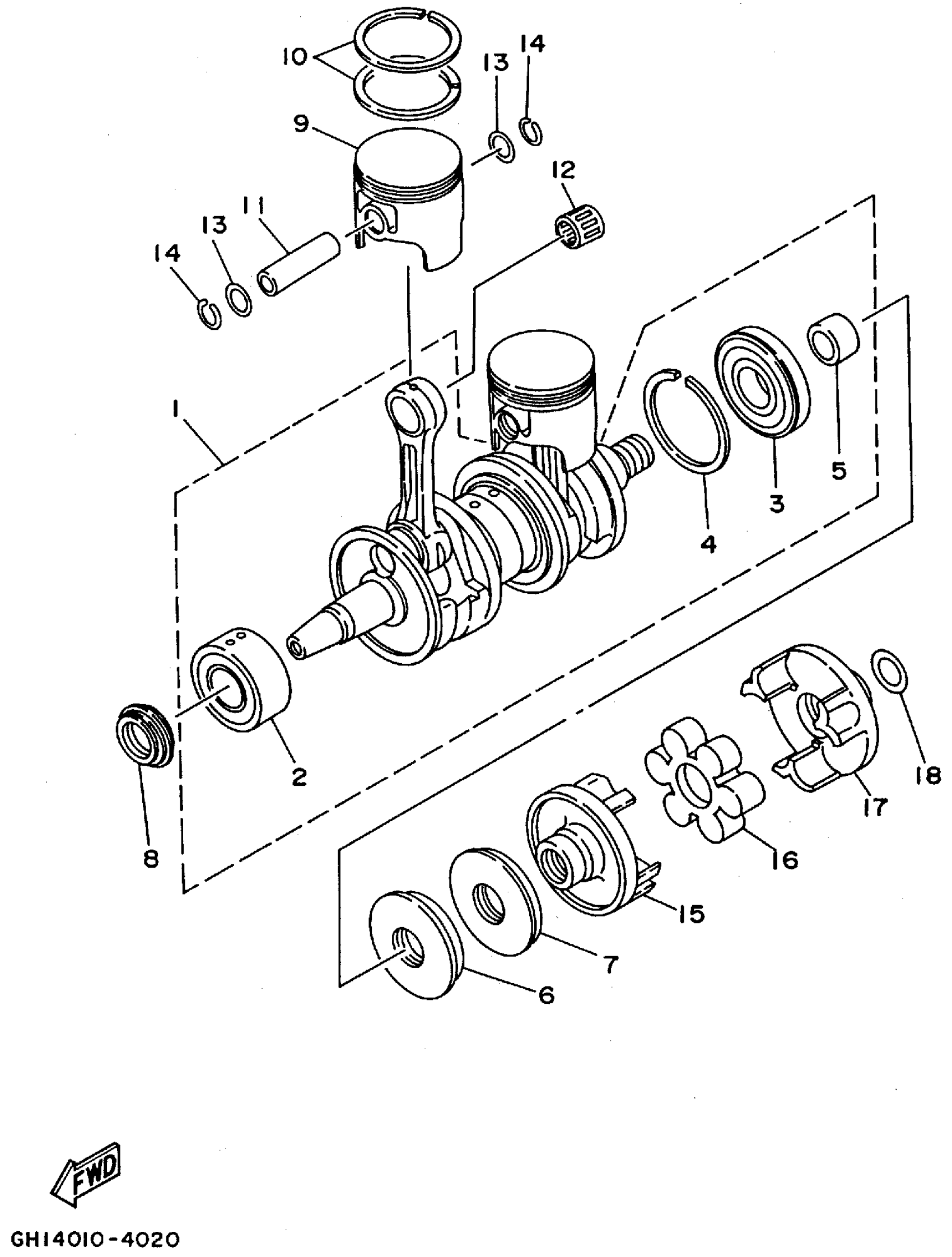

Yamaha RA700AT (WAVE RAIDER DELUXE) 1995 CRANKSHAFT PISTON Diagram

#

Description

Price

1

CRANKSHAFT ASSY

62T-11400-02-00

Unavailable

2

BEARING(8AB)

93305-30601-00

$193.99

3

BEARING(6M6)

93306-307U3-00

Unavailable

4

CIRCLIP (834)

93440-80023-00

$15.99

5

COLLAR, DRIVE SHAFT

6M6-45526-00-00

Unavailable

6

. OIL SEAL

93102-36M33-00

Unavailable

7

. OIL SEAL

93101-36M46-00

Unavailable

8

. OIL SEAL

93103-32M01-00

Unavailable

9

PISTON (STD)

62T-11631-02-92

Unavailable

9

PISTON (0.25MM O/S)

62T-11635-02-00

Unavailable

9

PISTON (0.50MM O/S)

62T-11636-02-00

Unavailable

10

PISTON RING SET (STD)

61X-11603-01-00

Unavailable

10

PISTON RING SET (0.25MM O/S)

61X-11604-01-00

Unavailable

10

PISTON RING SET (0.50MM O/S)

61X-11605-01-00

Unavailable

11

PIN, PISTON

62T-11633-00-00

Unavailable

12

BEARING, CYLINDRICAL(62T)

93310-320U2-00

Unavailable

13

WASHER, PLATE(61X)

90201-20M04-00

Unavailable

14

CIRCLIP (8H0)

93450-21053-00

Unavailable

15

FLANGE, COUPLING

6M6-45813-32-8P

Unavailable

16

RUBBER SHAFT COUPLING

61X-4581J-00-00

Unavailable

17

FLANGE, COUPLING

6M6-45813-22-8P

Unavailable

18

WASHER, PLATE(61X)

90201-24M02-00

Unavailable
