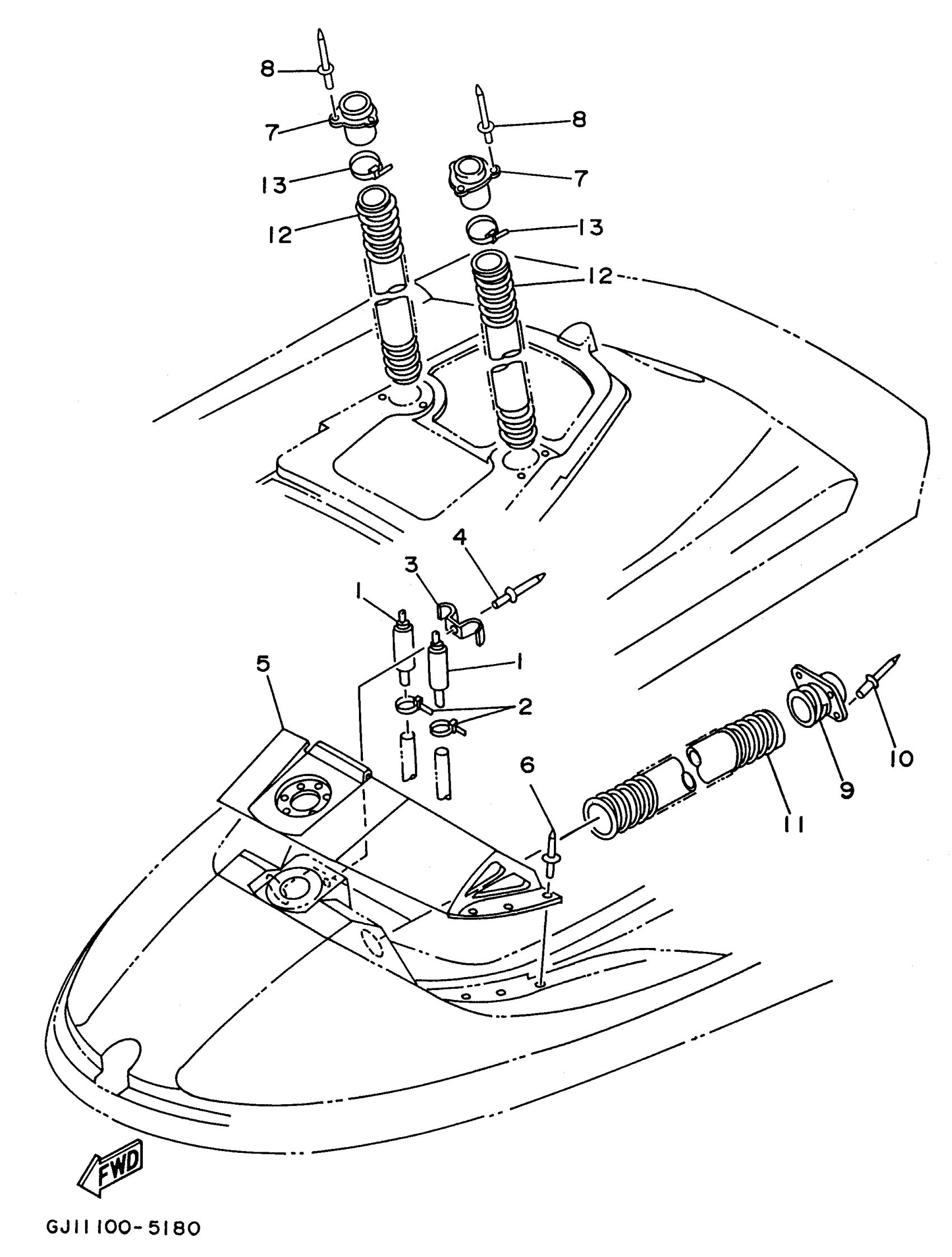

Yamaha RA1100U (WAVE RAIDER 1100) 1996 SEAT UNDER LOCKER 2 Diagram

#

Description
Price

1

AIR, VENT ASSY

EW2-62150-00-00

$20.88

2

CLAMP

90465-10098-00

$2.24

3

PLATE, GUIDE

GH1-6215G-00-00

Unavailable

4

RIVET (EU0)

90267-48938-00

$4.72

5

COVER, BOW

GH1-6521B-20-00

Unavailable

6

RIVET, BLIND

90267-489U6-00

Unavailable

7

VENTILATOR, OUTLET

GH1-62139-00-00

Unavailable

8

RIVET, BLIND

90267-409U5-00

Unavailable

9

BASE, AIR INTAKE

GH1-62127-00-00

Unavailable

10

RIVET, BLIND

90267-48802-00

$1.98

11

HOSE, VENTILATOR 1

GH1-6213F-01-00

Unavailable

12

HOSE, VENTILATOR 2

GH1-6213G-00-00

Unavailable

13

NYLON CLIP 1(GD0)

90601-20016-00

$8.90
