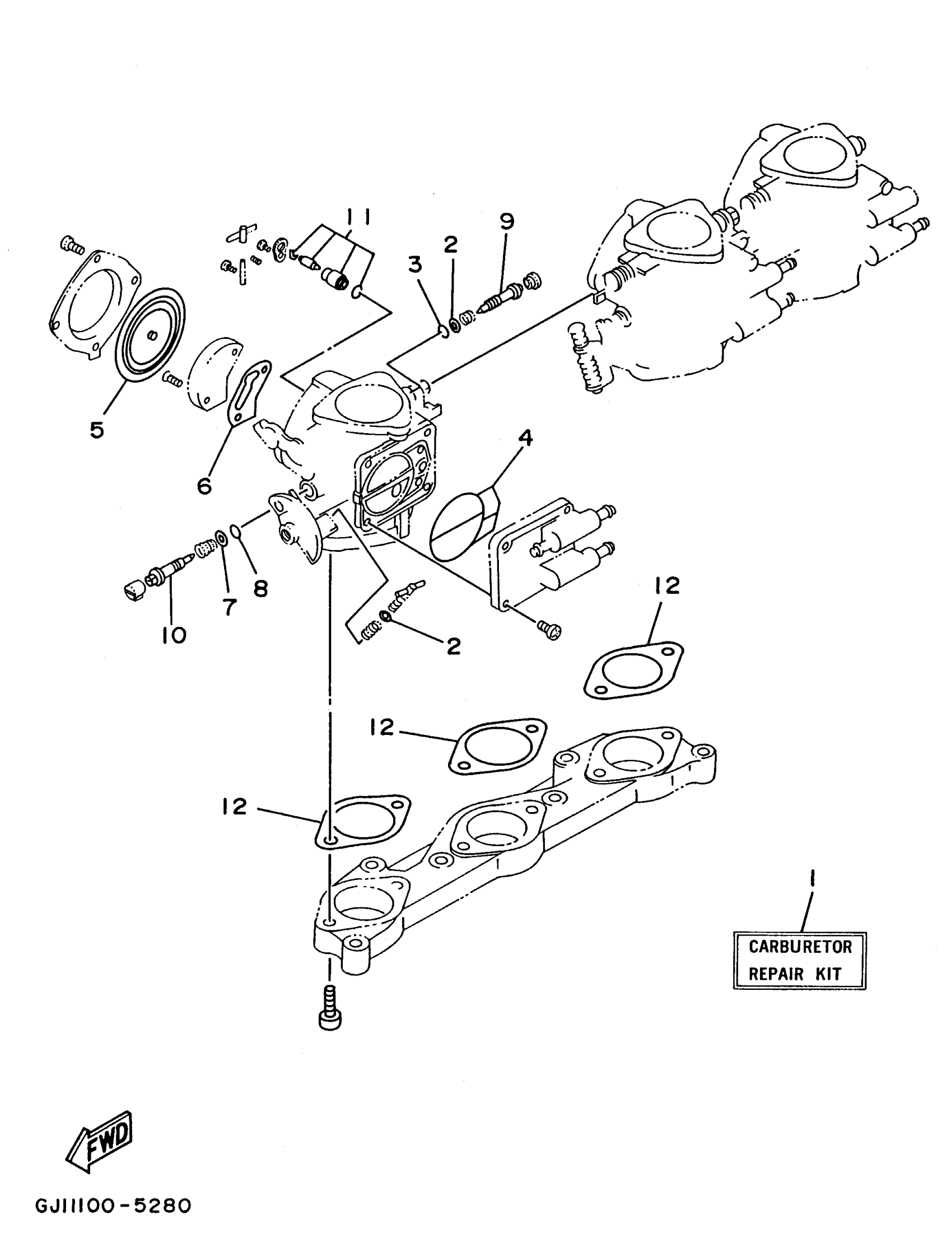

Yamaha RA1100U (WAVE RAIDER 1100) 1996 REPAIR KIT 2 Diagram

#

Description
Price

1

CARBURETOR REPAIR KIT

63M-W0093-00-00

Unavailable

2

WASHER,NEEDLE

812-14235-00-00

$2.44

3

. O-RING

6K8-14562-00-00

$1.88

4

. O-RING

6K8-14564-00-00

$8.51

5

. DIAPHRAGM, PUMP

6R7-14541-00-00

$26.99

6

. GASKET

6K8-14536-11-00

$8.14

7

. WASHER

6K8-14537-00-00

$3.18

8

O-RING

583-14561-00-00

$4.44

9

. PLATE, NEEDLE FITTING

63M-14946-00-00

$18.49

10

. SCREW, PILOT

63M-14923-00-00

Unavailable

11

NEEDLE

61X-14916-16-00

$22.90

12

GASKET

63M-14398-00-00

$16.66
