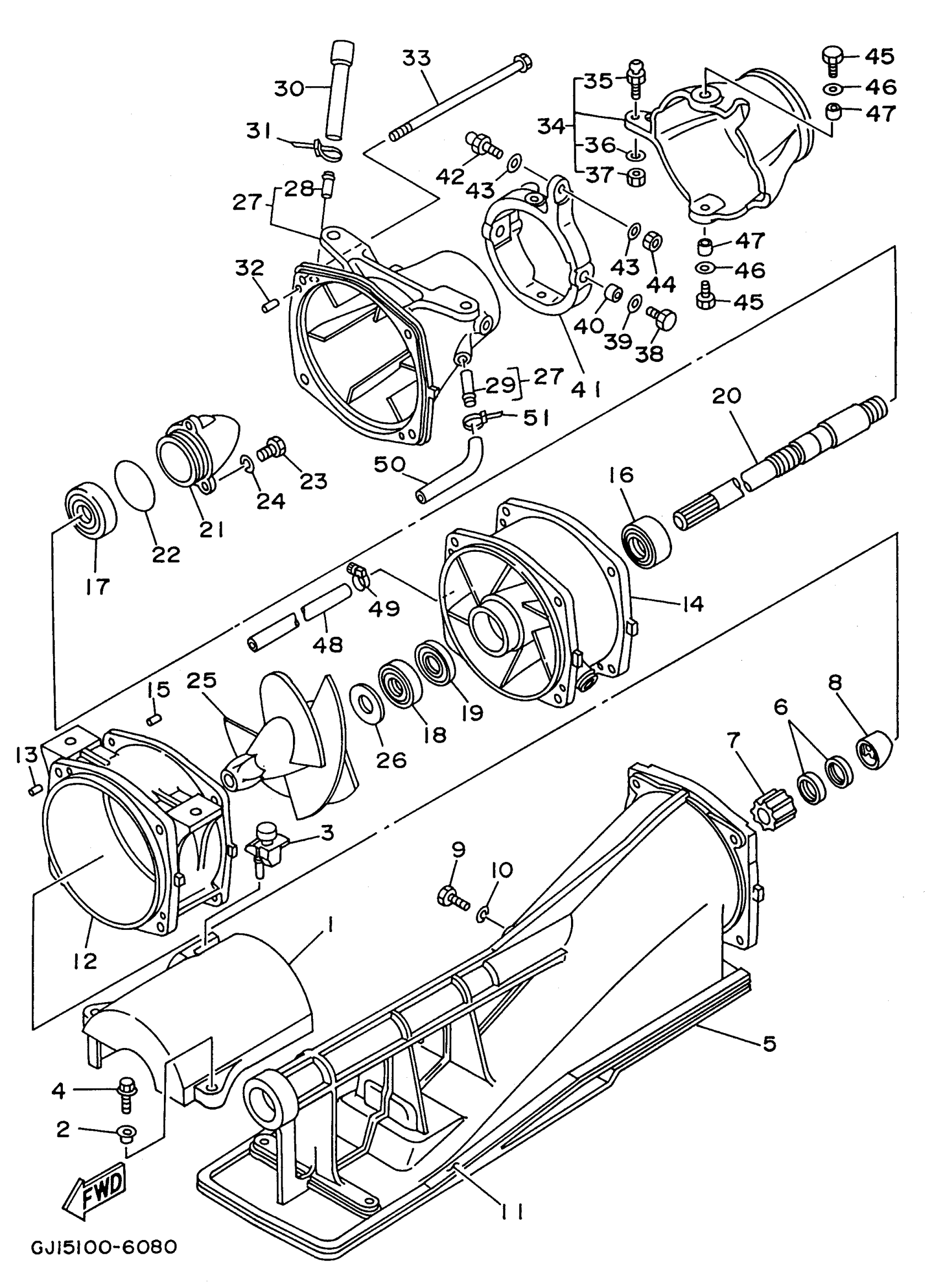

Yamaha RA1100U (WAVE RAIDER 1100) 1996 JET UNIT 1 Diagram
#
1
COVER
63M-51381-00-00
Unavailable
2
COLLAR
90387-06M60-00
Unavailable
3
GROMMET(GD0)
90480-06M69-00
$63.99
4
BOLT, HEXAGON W/W DEEP RECESS
97E95-06525-00
Unavailable
5
DUCT, INTAKE
63M-51311-01-94
Unavailable
6
OIL SEAL(6R8)
93102-18M35-00
Unavailable
7
BUSHING, DRIVE SHAFT
6R8-45318-00-00
Unavailable
8
SPACER
6R8-51348-02-94
Unavailable
9
BOLT
90101-06M27-00
Unavailable
10
WASHER, PLAIN (646)
92990-06600-00
$2.80
11
. FELT, PACKING
6R8-51367-01-00
Unavailable
12
HOUSING, IMPELLER
63M-51312-02-94
Unavailable
13
PIN, DOWEL (614)
93606-12019-00
$4.24
14
DUCT, IMPELLER
63M-51315-02-00
Unavailable
15
PIN, DOWEL (614)
93606-12019-00
$4.24
16
BEARING
93305-205U1-00
Unavailable
17
BEARING (6K8)
93306-205U1-00
Unavailable
18
OIL SEAL(6R7)
93102-25M34-00
Unavailable
19
OIL SEAL(6R7)
93101-25M50-00
Unavailable
20
SHAFT, DRIVE
63M-45511-00-00
Unavailable
21
CAP
62T-51326-00-00
Unavailable
22
. O-RING
93210-46M16-00
Unavailable
23
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
24
WASHER, PLAIN (646)
92990-06600-00
$2.80
25
IMPELLER
63M-51321-A0-00
Unavailable
26
SPACER
62T-51348-00-00
Unavailable
27
NOZZULE
63M-51318-01-5B
Unavailable
28
. NIPPLE
6K8-51129-00-00
Unavailable
29
. NIPPLE,HOSE
63M-51334-00-00
Unavailable
30
PIPE 1
63M-51673-00-00
Unavailable
31
CLAMP
90465-10098-00
Unavailable
32
PIN, DOWEL (614)
93606-12019-00
$4.24
33
BOLT, WASHER BASED(63M)
90105-08M65-00
Unavailable
34
NOZZLE, DEFLECTOR
63M-51313-00-00
Unavailable
35
. BOLT, JOINT
63M-42316-00-00
Unavailable
36
WASHER, PLATE
90201-06M02-00
Unavailable
37
NUT(650)
95380-06700-00
Unavailable
38
BOLT, HEXAGON
97095-08020-00
Unavailable
39
.. WASHER, PLATE
92990-08600-00
Unavailable
40
COLLAR
90387-08M08-00
Unavailable
41
RING,TRIM
63M-51190-00-94
Unavailable
42
. BOLT, JOINT
6R7-42316-00-00
Unavailable
43
WASHER, PLATE
90201-06M31-00
Unavailable
44
NUT(650)
95380-06700-00
Unavailable
45
BOLT, HEXAGON
97095-08020-00
Unavailable
46
.. WASHER, PLATE
92990-08600-00
Unavailable
47
COLLAR(6R7)
90387-08M06-00
Unavailable
48
HOSE (L108)
90445-18M03-00
Unavailable
49
HOSE CLAMP ASSY
90450-18M09-00
Unavailable
50
HOSE (L380)
90445-14M25-00
Unavailable
51
CLAMP (6E5)
90465-13M11-00
Unavailable
