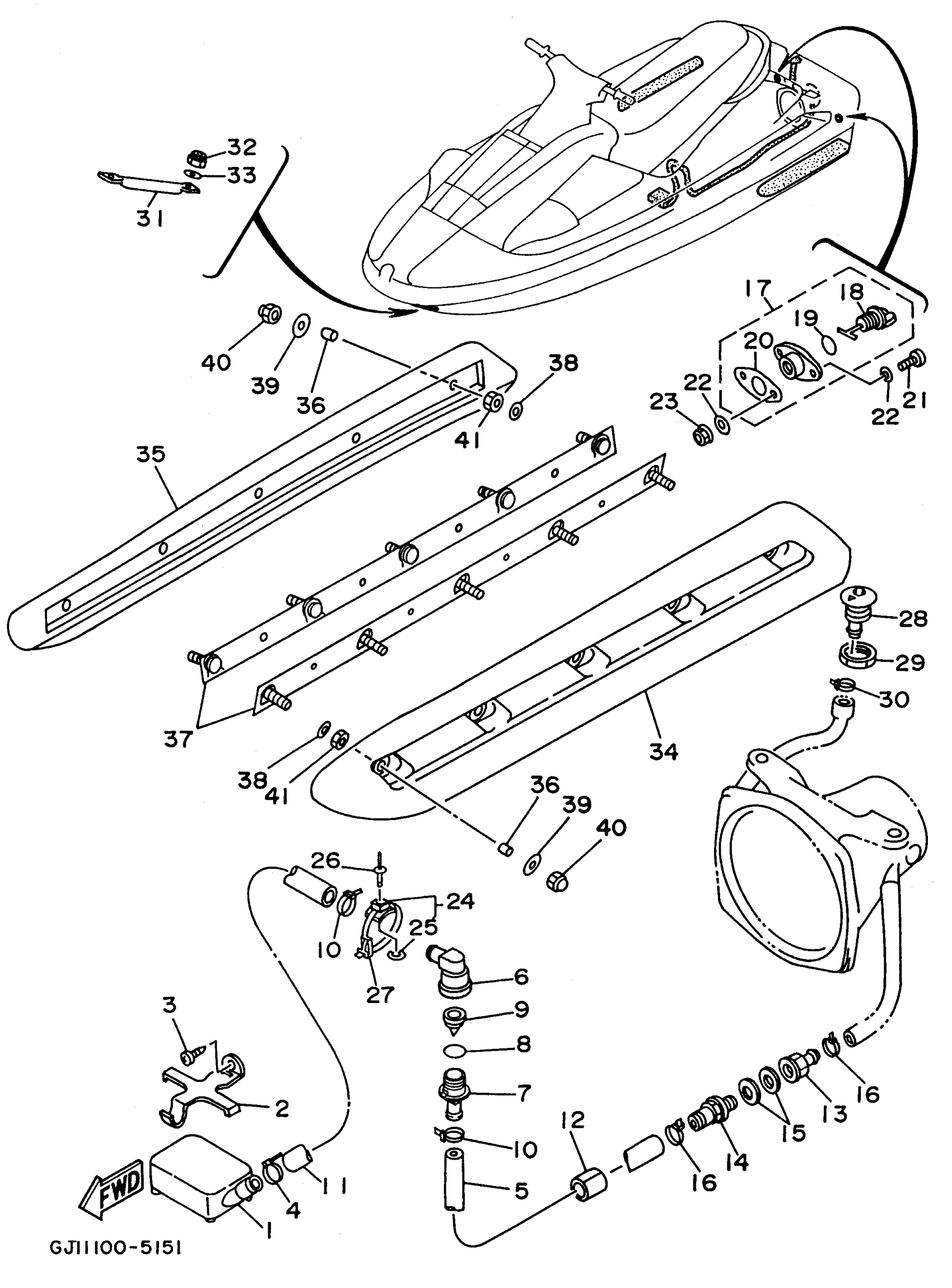

Yamaha RA1100U (WAVE RAIDER 1100) 1996 HULL DECK Diagram

#

Description
Price

1

STRAINER, BILGE

GD0-6761D-00-00

$58.99

2

BASE, STRAINER BLIGE

EW2-67618-00-00

$37.49

3

SCREW, TAPPING(61A)

97780-50612-00

$3.77

4

BAND

90601-200U1-00

$2.77

5

HOSE

90445-19M04-00

Unavailable

6

JOINT, HOSE 2

63M-51165-00-00

Unavailable

7

JOINT, HOSE

68N-5112T-00-00

$48.96

8

O-RING

93210-22ME5-00

$3.93

9

VALVE 1

63M-5316M-00-00

$25.49

10

CLAMP (6E5)

90465-13M11-00

$5.31

11

HOSE

90445-19M01-00

Unavailable

12

PACKING, HOSE 2

GJ1-67578-10-00

$3.64

13

CONNECTION, THRU-HULL 1/4

90604-80759-00

$18.92

14

CONNECTION, THROUGH HALL (GD0)

90604-80775-00

Unavailable

15

GASKET

90430-13909-00

Unavailable

16

BAND

90601-200U1-00

$2.77

17

DRAIN PLUG ASSY

EU0-62280-00-00

$28.23

18

. PLUG, DRAIN

EU0-62282-00-00

$7.40

19

. O-RING

EU0-62283-00-00

$3.70

20

. PACKING DRAIN (EU0)

EU0-62285-01-00

$5.91

21

SCREW, PAN HEAD(6A1)

97885-05020-00

$3.65

22

. WASHER, PLAIN

92990-05200-00

$4.29

23

NUT, FLANGE

95720-05300-00

$1.28

24

CLAMP COMP (EU0)

90600-91736-00

Unavailable

25

. WASHER, PLAIN

90201-05925-00

Unavailable

26

RIVET, BLIND

90267-48802-00

$1.98

27

BAND (EU0)

90601-20009-00

$6.36

28

SPOUT

FN8-6269B-00-00

$22.49

29

NUT

EU0-61652-00-00

$11.48

30

CLAMP

90465-10098-00

$1.68

31

BOWEYE 1

FN8-U1624-00-00

Unavailable

32

. NUT, SELF-LOCKING

95720-08300-00

$3.33

33

WASHER, PLAIN

92990-08200-00

$2.36

34

STABILIZER (L.H)

GH1-6883N-40-00

Unavailable

35

STABILIZER (R.H)

GH1-6883P-40-00

$186.35

36

COLLAR(GH1)

90387-06916-00

Unavailable

37

BRACKET, STABILIZER

GH1-6883T-20-00

Unavailable

38

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

39

WASHER, PLATE

90201-06020-00

Unavailable

40

NUT

90179-06959-00

Unavailable

41

NUT(650)

95380-06700-00

Unavailable
