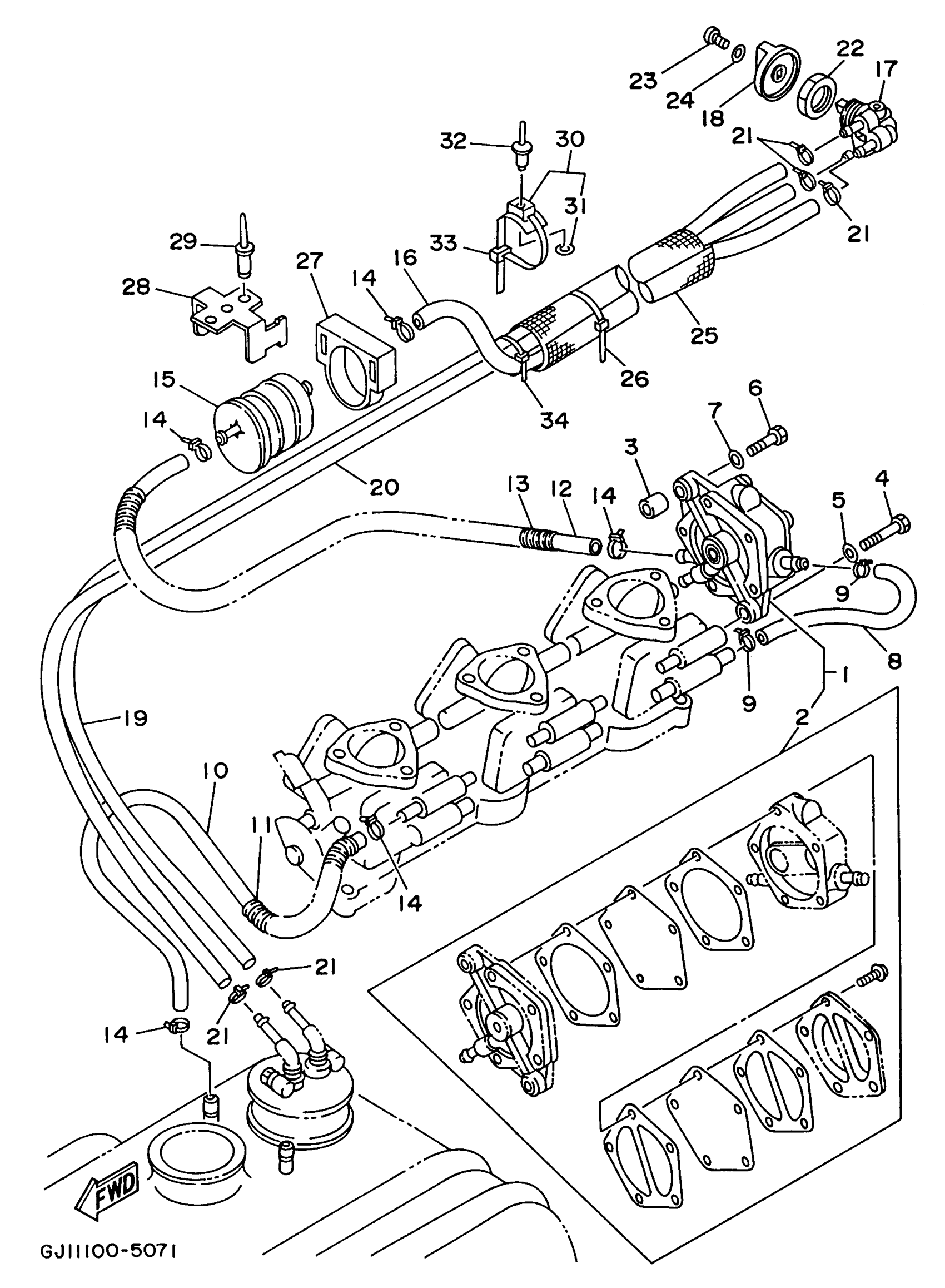

Yamaha RA1100U (WAVE RAIDER 1100) 1996 FUEL Diagram

#

Description
Price

1

FUEL PUMP ASSEMBLY

63M-24410-00-00

$159.77

2

. FUEL PUMP REPAIR KIT

63M-W2442-00-00

Unavailable

3

COLLAR

90387-06M44-00

Unavailable

4

BOLT(J52)

97080-06035-00

Unavailable

5

WASHER, PLAIN (646)

92990-06600-00

$1.84

6

BOLT

97095-06022-00

Unavailable

7

WASHER, PLAIN (646)

92990-06600-00

$1.84

8

PIPE 3

63M-24313-00-00

Unavailable

9

CLAMP

90465-10098-00

$1.68

10

HOSE (L1040)

90445-10MA9-00

$56.27

11

HOSE(6TC)

90446-14M51-00

$5.67

12

HOSE (L1700)

90445-10M87-00

Unavailable

13

HOSE

90446-14M28-00

Unavailable

14

CLAMP

90465-10098-00

$1.68

15

FILTER ASSY

6K8-24560-21-00

$28.64

16

HOSE (L1700)

90445-10M87-00

Unavailable

17

FUEL COCK ASSY 1

6K8-24500-03-00

Unavailable

18

LEVER, COCK

6K8-24524-10-00

$11.84

19

HOSE (L1700)

90445-10M87-00

Unavailable

20

HOSE (L1700)

90445-10M87-00

Unavailable

21

CLAMP

90465-10098-00

$1.68

22

NUT

90170-22M11-00

Unavailable

23

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

24

WASHER, PLAIN (646)

92990-04600-00

Unavailable

25

PROTECTOR, HOSE

GJ1-U773J-00-00

Unavailable

26

NYLON CLIP 1

90610-20015-00

Unavailable

27

HOLDER

EU0-67817-00-00

$13.33

28

BRACKET, FUEL FILTER

FN8-67816-00-00

$16.99

29

RIVET (EU0)

90267-48938-00

$5.00

30

CLAMP COMP (EU0)

90600-91736-00

Unavailable

31

. WASHER, PLAIN

90201-05925-00

Unavailable

32

RIVET, BLIND

90267-48802-00

$1.98

33

BAND (EU0)

90601-20009-00

$6.36

34

BAND

90601-200U1-00

$2.77
