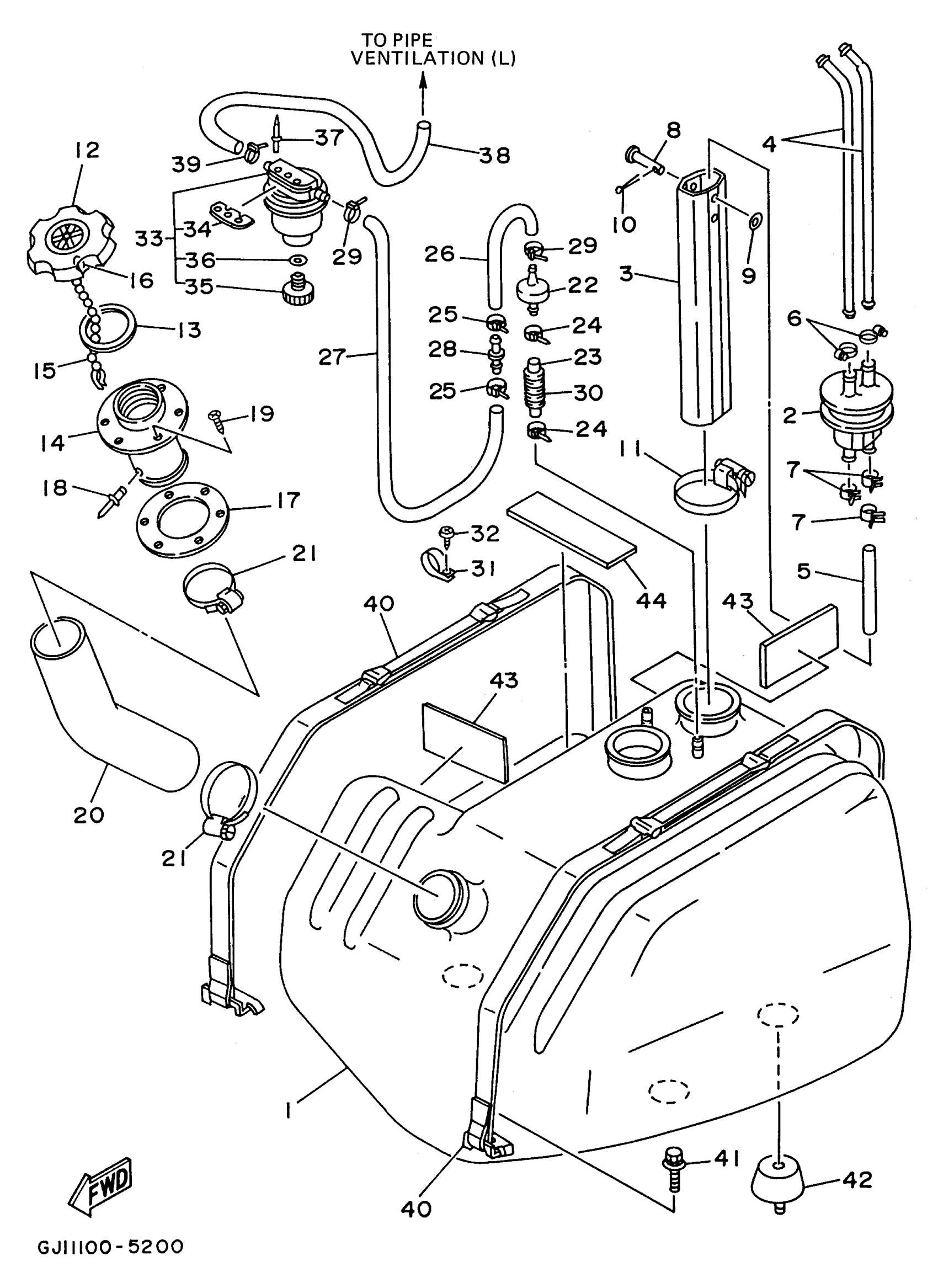

Yamaha RA1100U (WAVE RAIDER 1100) 1996 FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

GJ1-U7711-00-00

Unavailable

2

PIPE, JOINT

FJ0-67713-01-00

Unavailable

3

SLEEVE 1

FJ0-67716-01-00

$22.37

4

PIPE, SUCTION 3

FJ0-67714-02-00

Unavailable

5

HOSE (L198)

90445-11293-00

$6.69

6

BAND, HOSE 11

90601-11062-00

Unavailable

7

CLIP (7K7)

90467-11044-00

$4.89

8

PIN (FJ0)

91790-05040-00

$2.49

9

WASHER, PLAIN (646)

92990-05600-00

Unavailable

10

PIN. COTTER

91490-16010-00

$2.52

11

BAND, HOSE 62

90601-162U5-00

$6.46

12

CAP, FUEL FILLER

GA7-67831-01-00

Unavailable

13

PACKING 1

EU0-67832-00-00

$7.59

14

SOCKET

FN8-67833-00-00

Unavailable

15

. CHAIN BALL

EU0-67835-00-00

$5.31

16

COUPLING

EU0-67839-00-00

$6.27

17

PACKING, FUEL FILLER

EU0-67834-00-00

$25.36

18

. RIVET, BLIND

90267-40935-00

$1.29

19

SCREW, FLAT HEAD TAPPING

EU0-U7869-00-00

Unavailable

20

HOSE

GJ1-U7844-00-00

Unavailable

21

BAND, HOSE 55

90601-155U4-00

$6.17

22

CHECK VALVE

EU0-67767-31-00

$30.97

23

HOSE

90699-50100-00

$26.85

24

CLAMP

90465-10098-00

$2.24

25

CLAMP

90465-10098-00

$2.24

26

HOSE, AIR VENT

EU0-67856-50-00

Unavailable

27

HOSE

90699-50100-00

$26.85

28

PIPE, JOINT 1

6G8-24376-00-00

$5.82

29

CLAMP

90465-10098-00

$2.24

30

TUBE

GJ1-6773D-00-00

Unavailable

31

CLIP, NYLON 18

90600-918U3-00

Unavailable

32

SCREW, PANHEAD TAPPING (J20)

97780-60116-00

Unavailable

33

FILTER, VENT ASSY

F2F-6214A-00-00

$52.14

34

. PLATE, FILTER

EW2-62142-00-00

$44.76

35

. PLUG, DRAIN

70R-24543-00-00

$8.94

36

. O-RING

70R-24489-00-00

$4.93

37

RIVET, BLIND

90267-489U2-00

$1.51

38

HOSE (L180)

90445-094K7-00

Unavailable

39

CLAMP

90465-10098-00

$2.24

40

BELT, TANK 1

GJ1-67743-01-00

$79.09

41

BOLT, WITH WASHER

90119-08800-00

$4.31

42

DAMPER,FUEL TANK

GH1-6782B-01-00

Unavailable

43

MAT 1

GJ1-6759B-00-00

$20.88

44

MAT 2

GJ1-6759C-00-00

$20.88
