SEAT - UNDER LOCKER 1

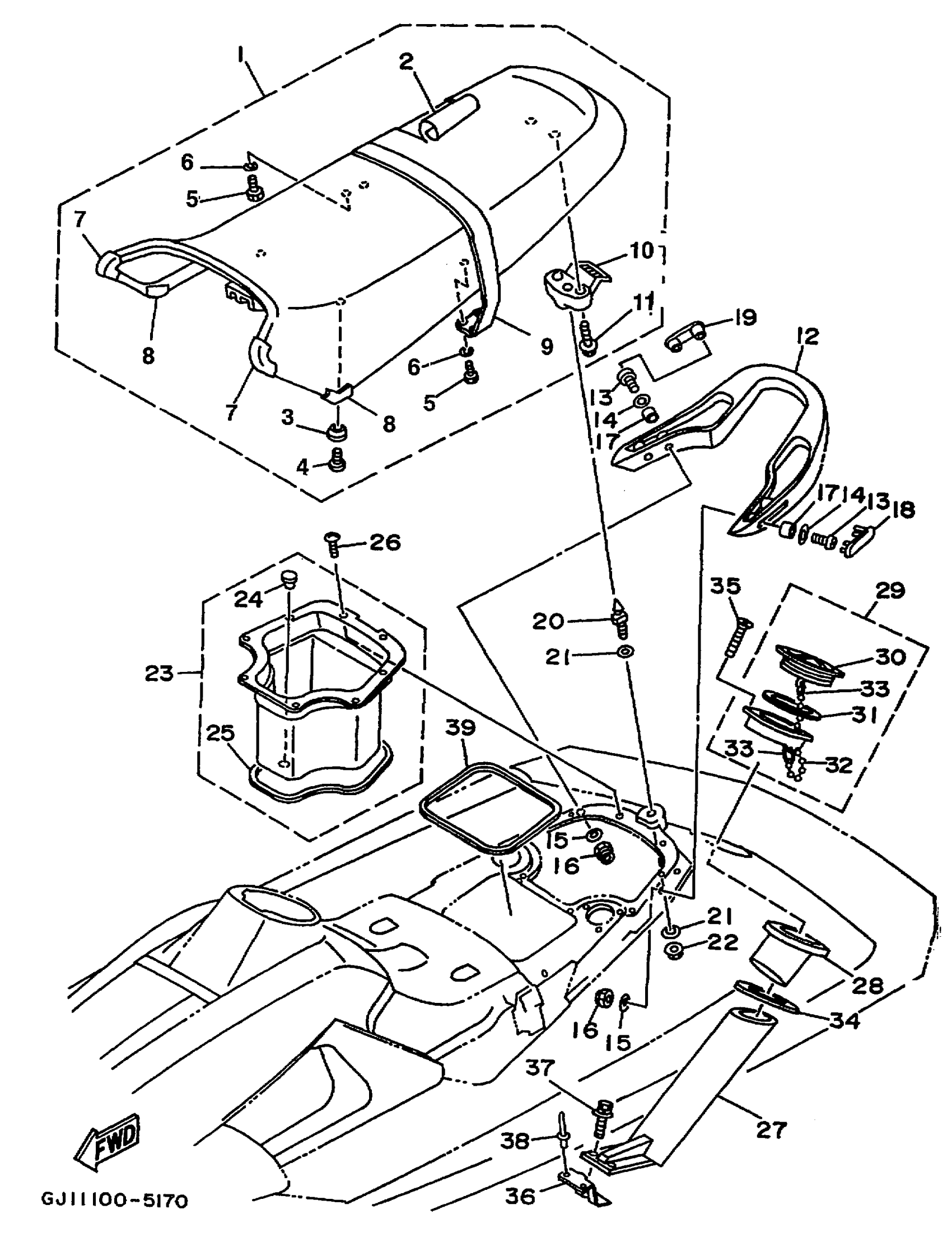

Yamaha RA1100T (WAVE RAIDER 1100) 1995 SEAT - UNDER LOCKER 1 Diagram
#
1
DOUBLE SEAT ASSEMBLY
GJ1-U371A-00-00
Unavailable
2
COVER, SEAT
GJ1-U370B-00-00
Unavailable
3
. STOPPER, SEAT
GH1-63729-00-00
Unavailable
4
. SCREW, WITH WASHER
97980-06116-00
Unavailable
5
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
$2.76
6
WASHER, SPRING
92995-06100-00
Unavailable
7
. PAD, SEAT 1
GJ1-U375A-00-00
Unavailable
8
. PAD, SEAT 2
GJ1-U375B-00-00
Unavailable
9
. BAND, SEAT COMP
GJ1-U373D-00-00
Unavailable
10
SEAT LOCK ASSEMBLY
GJ1-63850-00-00
Unavailable
11
BOLT, WITH WASHER
90119-06930-00
Unavailable
12
GRIP, HAND
GH1-6271B-10-00
Unavailable
13
SCREW, PAN HEAD(6B0)
97885-06025-00
Unavailable
14
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
15
WASHER, PLATE
90201-06020-00
$9.49
16
NUT, SELF-LOCKING
95720-06300-00
Unavailable
17
COLLAR
90387-06914-00
Unavailable
18
CAP, GRIP HAND LH
GH1-6271C-10-00
Unavailable
19
CAP, GRIP HAND RH
GH1-6271D-10-00
Unavailable
20
PIN
GH1-63774-01-00
Unavailable
21
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
22
NUT, FLANGE
95780-10300-00
Unavailable
23
UNDER LOCKER 2
GJ1-U4742-00-00
Unavailable
24
PLUG(EU0)
90605-50201-00
Unavailable
25
. PACKING 3
GH1-6266B-00-00
Unavailable
26
SCREW
90149-04943-00
Unavailable
27
BOX, FIRE EXTINGUISHER
GA7-65983-00-00
Unavailable
28
GROMMET
GA7-65984-00-00
Unavailable
29
INSPECTION CVR ASY
EU0-62720-31-00
Unavailable
30
COVER, INSPECTION
EU0-62721-31-00
Unavailable
31
. RING
93211-03902-00
Unavailable
32
. CHAIN BALL
EU0-67835-30-00
Unavailable
33
COUPLING
EU0-67839-00-00
Unavailable
34
PLATE, FIRE EXTINGUISHER
GA7-6593J-00-00
Unavailable
35
SCREW,FLAT HEAD
98780-04535-00
Unavailable
36
BRKT, FIRE EXTINGUISHER
GJ1-6593H-00-00
Unavailable
37
BOLT, WITH WASHER
90119-06908-00
Unavailable
38
RIVET (EU0)
90267-48938-00
Unavailable
39
PACKING 5
GJ1-U266D-01-00
Unavailable
