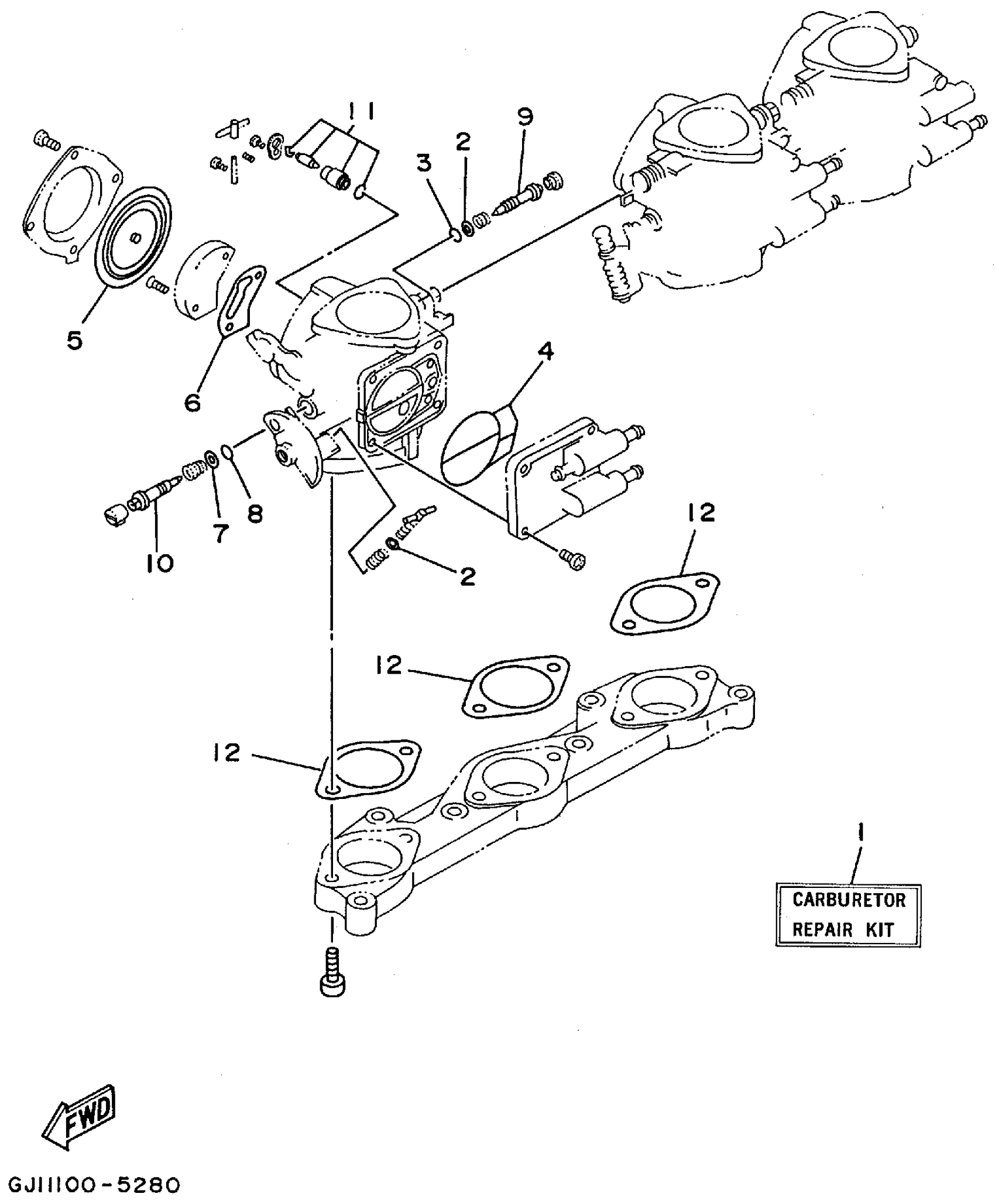

Yamaha RA1100T (WAVE RAIDER 1100) 1995 REPAIR KIT 2 Diagram

#

Description

Price

1

CARBURETOR REPAIR KIT

63M-W0093-00-00

Unavailable

2

WASHER,NEEDLE

812-14235-00-00

Unavailable

3

. O-RING

6K8-14562-00-00

Unavailable

4

. O-RING

6K8-14564-00-00

Unavailable

5

. DIAPHRAGM, PUMP

6R7-14541-00-00

Unavailable

6

. GASKET

6K8-14536-11-00

Unavailable

7

. WASHER

6K8-14537-00-00

Unavailable

8

O-RING

583-14561-00-00

$5.49

9

. PLATE, NEEDLE FITTING

63M-14946-00-00

Unavailable

10

. SCREW, PILOT

63M-14923-00-00

Unavailable

11

NEEDLE

61X-14916-16-00

Unavailable

12

GASKET

63M-14398-00-00

Unavailable
