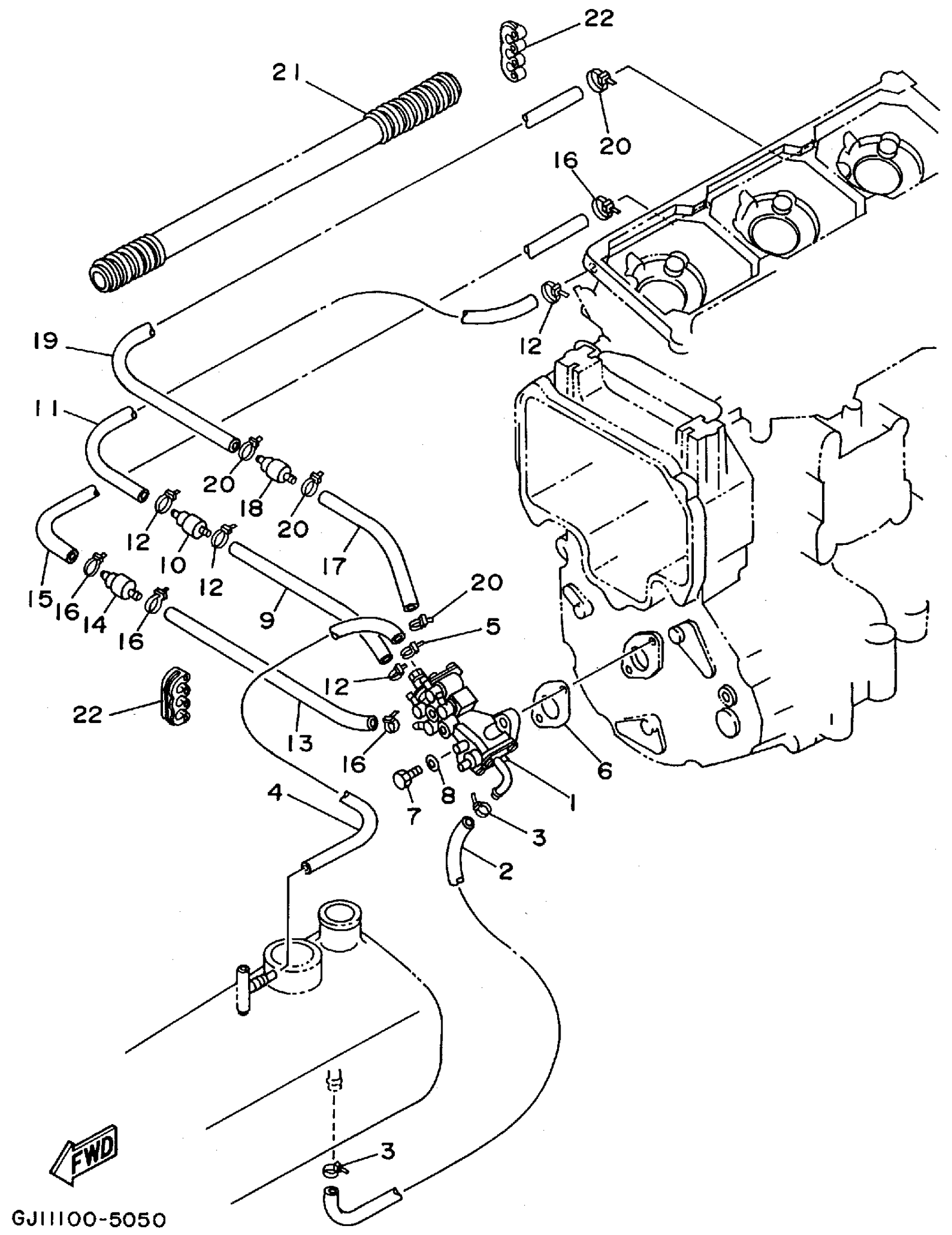

Yamaha RA1100T (WAVE RAIDER 1100) 1995 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

63M-13200-01-00

Unavailable

2

HOSE (L700)

90445-117F2-00

$30.99

3

CLAMP

90465-10098-00

Unavailable

4

HOSE (L770)

90445-07006-00

Unavailable

5

CLAMP

90465-10098-00

Unavailable

6

GASKET, PUMP CASE

63M-13116-00-00

Unavailable

7

BOLT(7U8)

97080-06020-00

Unavailable

8

WASHER, PLAIN (646)

92990-06600-00

$2.80

9

HOSE(62T)

90446-07M48-00

Unavailable

10

VALVE, CHECK

6R3-13183-10-00

Unavailable

11

HOSE(62T)

90446-07M48-00

Unavailable

12

CLAMP

90465-10098-00

Unavailable

13

HOSE(62T)

90446-07M48-00

Unavailable

14

VALVE, CHECK

6R3-13183-10-00

Unavailable

15

HOSE(62T)

90446-07M48-00

Unavailable

16

CLAMP

90465-10098-00

Unavailable

17

HOSE(62T)

90446-07M48-00

Unavailable

18

VALVE, CHECK

6R3-13183-10-00

Unavailable

19

HOSE(62T)

90446-07M48-00

Unavailable

20

CLAMP

90465-10098-00

Unavailable

21

HOSE

90446-24M83-00

Unavailable

22

CLAMP

90464-07M05-00

Unavailable
