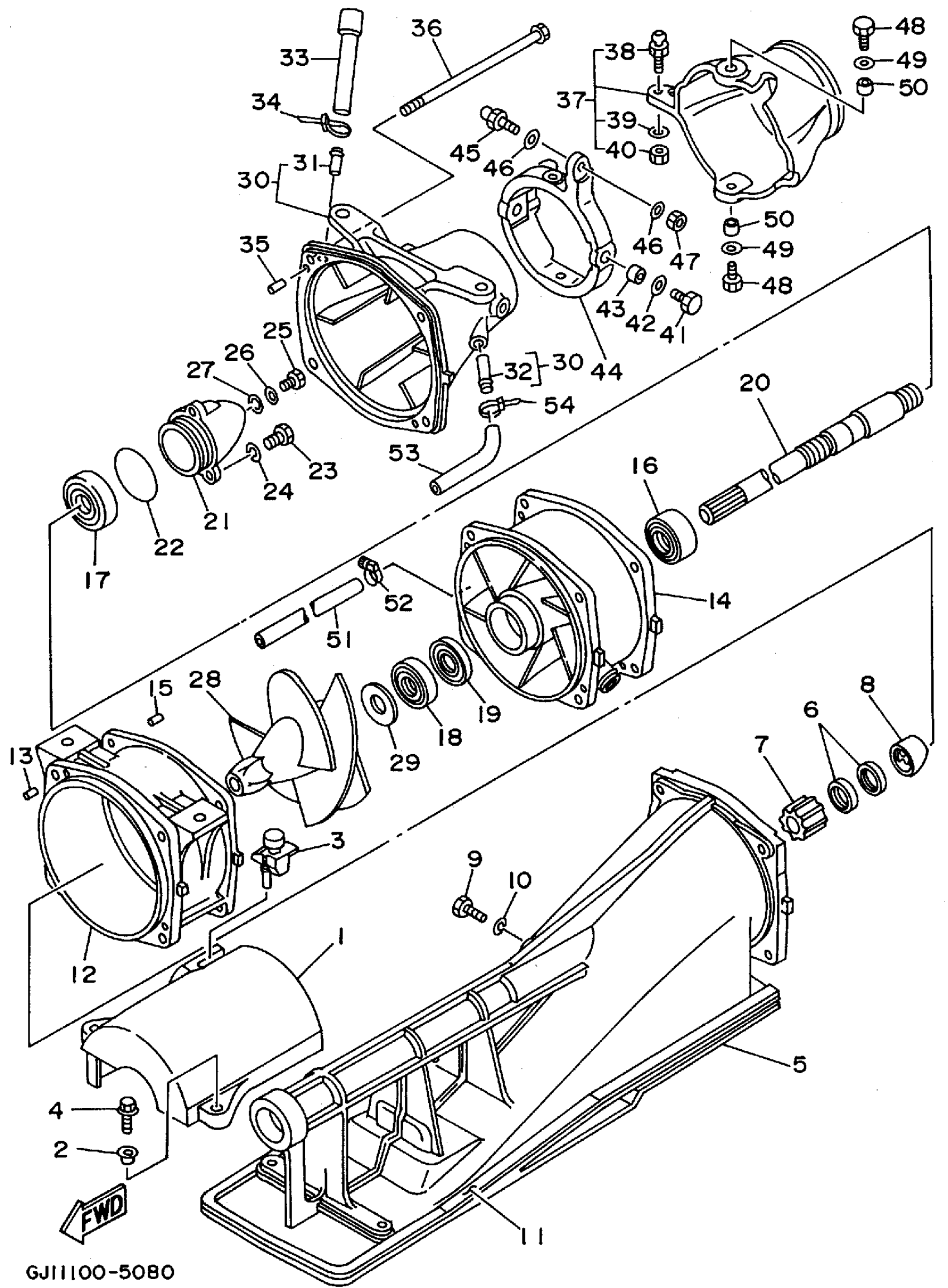

Yamaha RA1100T (WAVE RAIDER 1100) 1995 JET UNIT 1 Diagram

#

Description
Price

1

COVER

63M-51381-00-00

Unavailable

2

COLLAR

90387-06M60-00

$6.37

3

GROMMET(GD0)

90480-06M69-00

$51.86

4

BOLT, HEXAGON W/W DEEP RECESS

97E95-06525-00

$1.00

5

DUCT, INTAKE

63M-51311-01-94

Unavailable

6

OIL SEAL(6R8)

93102-18M35-00

Unavailable

7

BUSHING, DRIVE SHAFT

6R8-45318-00-00

Unavailable

8

SPACER

6R8-51348-02-94

Unavailable

9

BOLT

90101-06M27-00

$3.14

10

WASHER, PLAIN (646)

92990-06600-00

$1.84

11

. FELT, PACKING

6R8-51367-01-00

$10.36

12

HOUSING, IMPELLER

63M-51312-02-94

Unavailable

13

PIN, DOWEL (614)

93606-12019-00

$3.05

14

DUCT, IMPELLER

63M-51315-02-00

Unavailable

15

PIN, DOWEL (614)

93606-12019-00

$3.05

16

BEARING

93305-205U1-00

$104.53

17

BEARING (6K8)

93306-205U1-00

Unavailable

18

OIL SEAL(6R7)

93102-25M34-00

Unavailable

19

OIL SEAL(6R7)

93101-25M50-00

Unavailable

20

SHAFT, DRIVE

63M-45511-00-00

Unavailable

21

CAP

62T-51326-00-00

$71.20

22

. O-RING

93210-46M16-00

$7.15

23

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

24

WASHER, PLAIN (646)

92990-06600-00

$1.84

25

BOLT(GH1)

97080-06012-00

$2.56

26

WASHER, PLAIN (646)

92990-06600-00

$1.84

27

. GASKET

90430-06M03-00

$2.80

28

IMPELLER

63M-51321-A0-00

Unavailable

29

SPACER

62T-51348-00-00

$52.82

30

NOZZULE

63M-51318-01-5B

Unavailable

31

. NIPPLE

6K8-51129-00-00

$9.62

32

. NIPPLE,HOSE

63M-51334-00-00

$21.95

33

PIPE 1

63M-51673-00-00

Unavailable

34

CLAMP (6E5)

90465-13M11-00

Unavailable

35

PIN, DOWEL (614)

93606-12019-00

$3.05

36

BOLT, WASHER BASED(63M)

90105-08M65-00

Unavailable

37

NOZZLE, DEFLECTOR

63M-51313-00-00

Unavailable

38

. BOLT, JOINT

63M-42316-00-00

Unavailable

39

WASHER, PLATE

90201-06M02-00

$2.20

40

NUT(650)

95380-06700-00

Unavailable

41

BOLT, HEXAGON

97095-08020-00

Unavailable

42

.. WASHER, PLATE

92990-08600-00

$2.17

43

COLLAR

90387-08M08-00

$10.75

44

RING,TRIM

63M-51190-00-94

$89.38

45

. BOLT, JOINT

6R7-42316-00-00

$34.49

46

WASHER, PLATE

90201-06M31-00

$2.80

47

NUT(650)

95380-06700-00

Unavailable

48

BOLT, HEXAGON

97095-08020-00

Unavailable

49

.. WASHER, PLATE

92990-08600-00

$2.17

50

COLLAR(6R7)

90387-08M06-00

Unavailable

51

HOSE (L108)

90445-18M03-00

Unavailable

52

HOSE CLAMP ASSY

90450-18M09-00

$9.82

53

HOSE (L380)

90445-14M25-00

Unavailable

54

CLAMP (6E5)

90465-13M11-00

Unavailable
