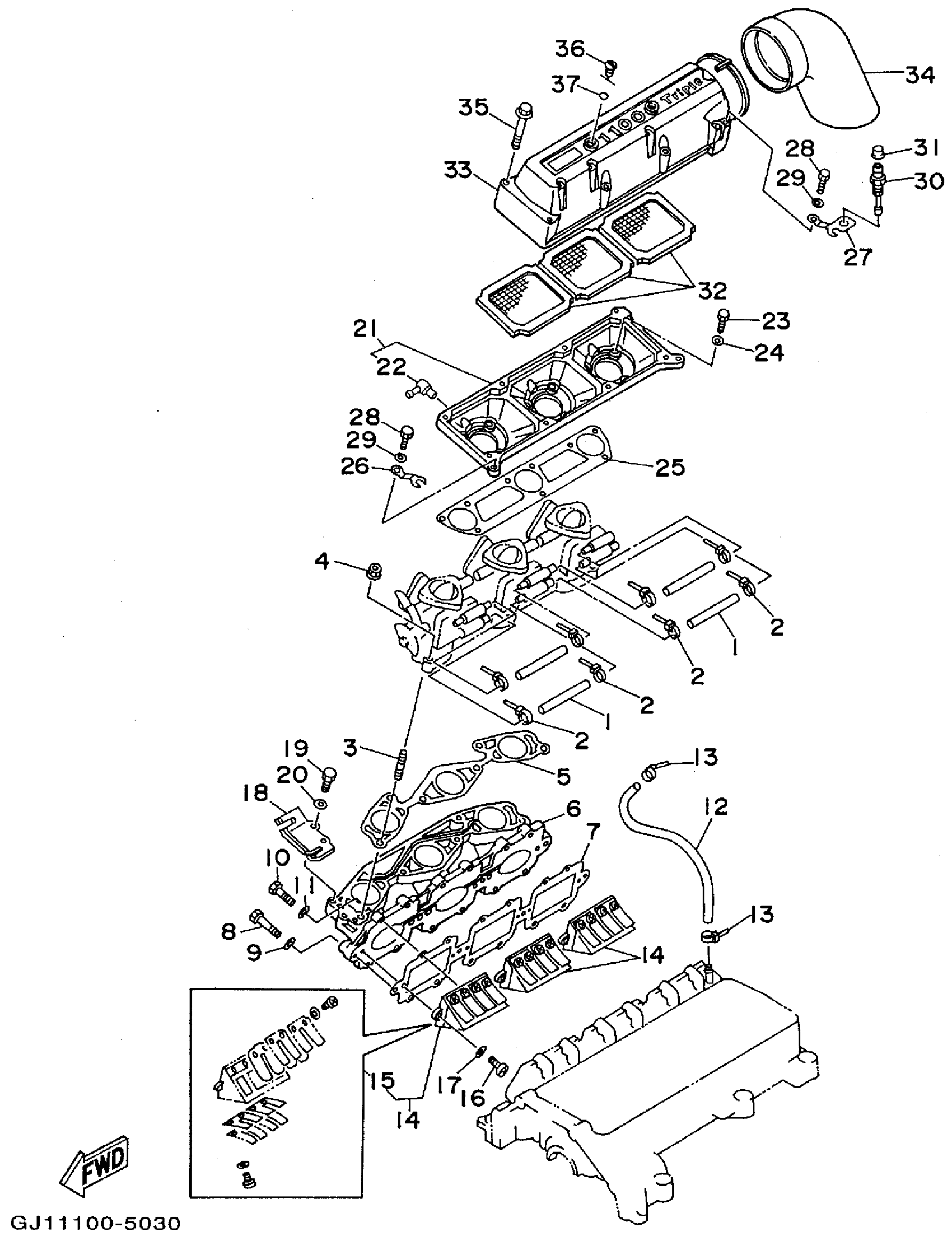

Yamaha RA1100T (WAVE RAIDER 1100) 1995 INTAKE Diagram

#

Description
Price

1

HOSE (L400)

90445-10M43-00

$5.96

2

CLAMP

90465-10098-00

$1.68

3

BOLT,STUD

90116-08M55-00

Unavailable

4

NUT

90179-08M15-00

$6.37

5

GASKET, MANIFOLD

63M-13556-00-00

$39.38

6

MANIFOLD, INTAKE

63M-13555-00-94

$301.50

7

GASKET

63M-13566-00-00

$37.86

8

BOLT(3RV)

97014-06035-00

$1.54

9

WASHER, PLAIN (646)

92990-06600-00

$1.84

10

BOLT

90101-06M27-00

$3.14

11

WASHER, PLAIN (646)

92990-06600-00

$1.84

12

HOSE (L400)

90445-10M43-00

$5.96

13

CLAMP

90465-10098-00

$1.68

14

REED VALVE ASSEMBLY

63M-13610-00-00

Unavailable

15

. REED SET

63M-W0004-00-00

Unavailable

16

SCREW, PAN HEAD(6B0)

97885-05016-00

$4.09

17

WASHER, PLAIN (646)

92990-05600-00

Unavailable

18

PLATE

62T-14527-01-00

Unavailable

19

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

20

WASHER, PLAIN (646)

92990-06600-00

$1.84

21

COVER, CARBURETOR 2

63M-14284-00-98

Unavailable

22

NIPPLE, HOSE

6E5-11372-01-00

$9.99

23

BOLT(7U8)

97080-06020-00

$3.63

24

WASHER, PLAIN (646)

92990-06600-00

$1.84

25

GASKET, AIR COOLER COVER 1

63M-13674-00-00

$10.49

26

PLATE

63M-14255-00-00

Unavailable

27

PLATE

63M-14255-10-00

Unavailable

28

BOLT (661)

97013-06012-00

Unavailable

29

WASHER, PLAIN (646)

92990-06600-00

$1.84

30

NIPPLE, GREASE

61L-5169A-00-00

$7.40

31

CAP, GREASE NIPPLE

663-45119-01-00

Unavailable

32

ELEMENT, AIR CLEANER

62T-14451-00-00

$38.49

33

COVER, CARBURETOR 1

63M-14283-00-00

Unavailable

34

PIPE

63M-14419-00-00

Unavailable

35

BOLT, WITH WASHER

90119-05M02-00

$3.46

36

GROMMET

62T-14435-00-00

$3.70

37

. O-RING

93210-13M63-00

$3.52
