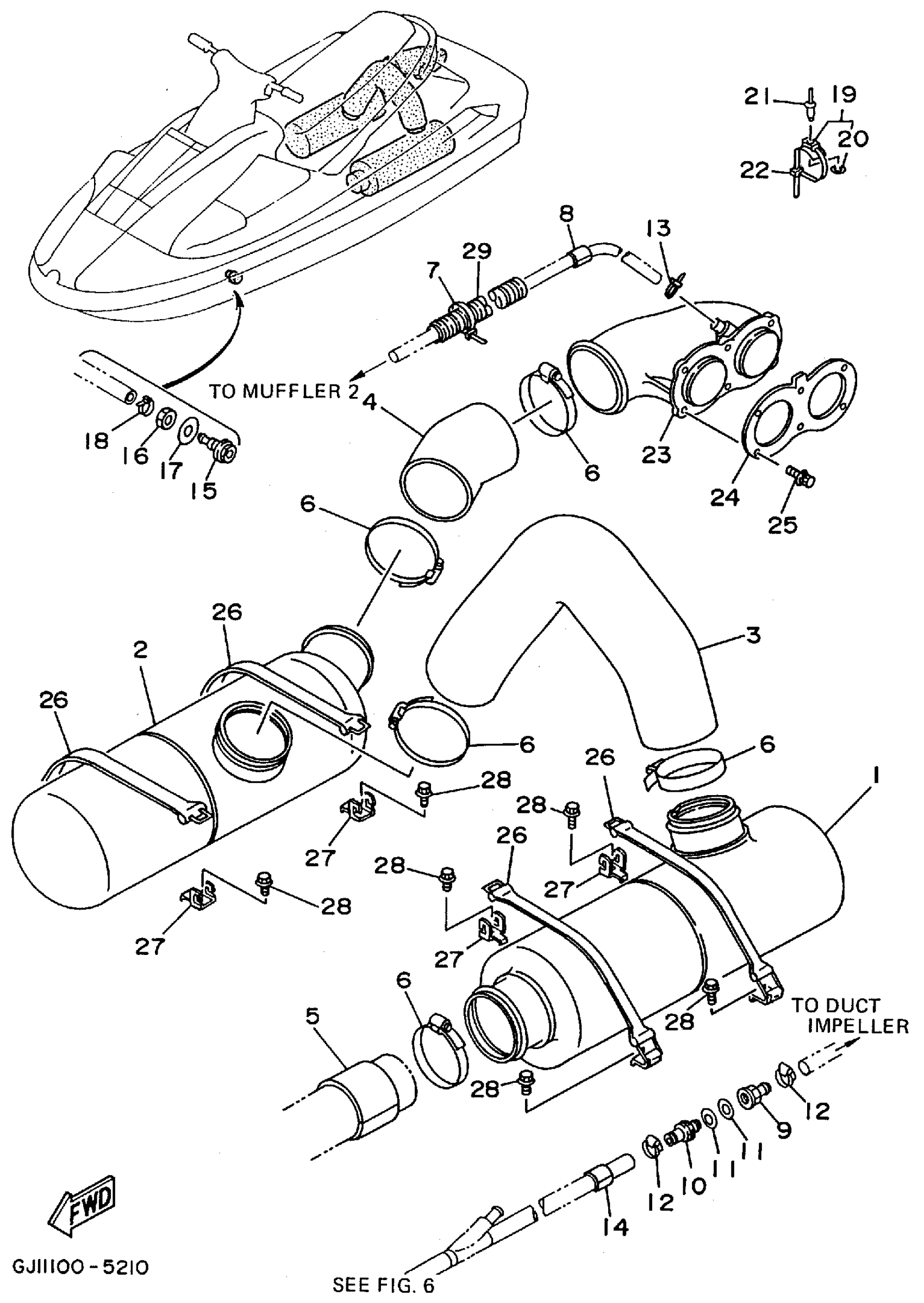

Yamaha RA1100T (WAVE RAIDER 1100) 1995 EXHAUST 2 Diagram
#
1
WATER LOCK
GJ1-67550-01-00
Unavailable
2
MUFFLER
GJ1-U751B-00-00
Unavailable
3
HOSE
GJ1-U7555-00-00
Unavailable
4
HOSE, EXHAUST 2
GJ1-U758C-00-00
Unavailable
5
PACKING, HOSE 1
GJ1-67577-00-00
Unavailable
6
BAND, HOSE 95
90601-195UD-00
Unavailable
7
BAND
90601-20008-00
Unavailable
8
PACKING, HOSE 2
GJ1-67578-10-00
Unavailable
9
THROUGH-HULL CONNECTION 3/8"
90604-80793-00
Unavailable
10
THROGUH-HULL CONNECTION 3/8
90604-80794-00
Unavailable
11
GASKET(GJ1)
90430-16910-00
Unavailable
12
BAND, HOSE 18
90601-118UF-00
Unavailable
13
BAND
90601-200U1-00
Unavailable
14
PACKING, HOSE 2
GJ1-67578-10-00
Unavailable
15
PILOT, WATER
GJ1-6753B-02-00
Unavailable
16
. NUT
95380-14700-00
Unavailable
17
WASHER, PLAIN
92990-14200-00
Unavailable
18
CLAMP
90465-10098-00
Unavailable
19
CLAMP COMP (EU0)
90600-91736-00
Unavailable
20
. WASHER, PLAIN
90201-05925-00
Unavailable
21
RIVET, BLIND
90267-48802-00
Unavailable
22
BAND (EU0)
90601-20009-00
Unavailable
23
EXHAUST, THRU-HALL COMP.
GJ1-67560-00-00
Unavailable
24
PACKING
GJ1-U7525-00-00
Unavailable
25
BOLT, WITH WASHER (EW3)
90119-05912-00
Unavailable
26
HOOK C
GJ1-U7570-00-00
Unavailable
27
HOOK A
EW2-65772-00-00
Unavailable
28
BOLT,FLANGE (EW2)
90105-06900-00
Unavailable
29
HOSE(63M)
90446-27M55-00
Unavailable
