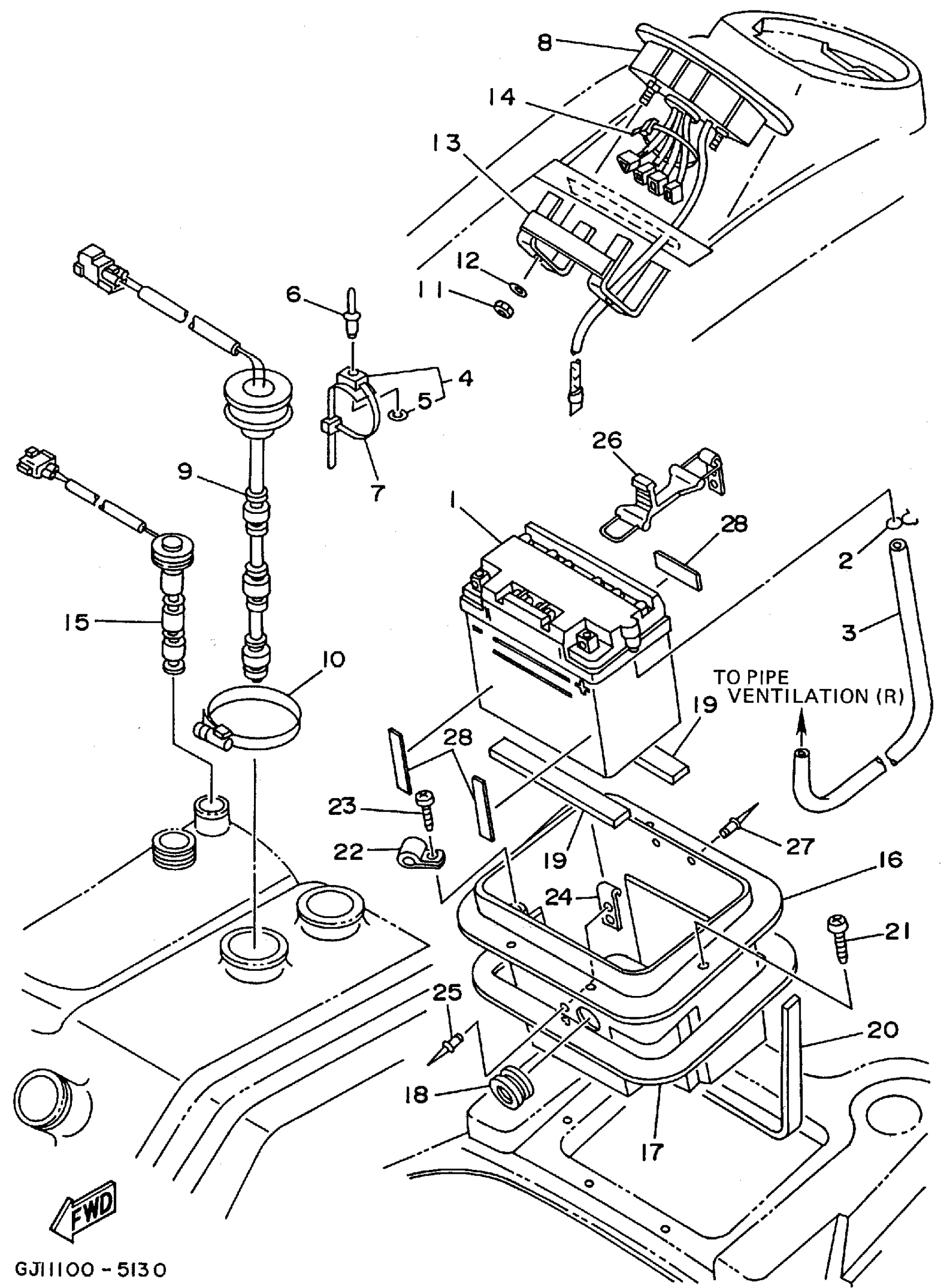

Yamaha RA1100T (WAVE RAIDER 1100) 1995 ELECTRICAL 2 Diagram

#

Description
Price

1

YB16CLB YUASA BATTERY

YB1-6CLB0-00-00

Unavailable

2

CLIP

90467-08M10-00

Unavailable

3

HOSE, AIRVENT 3

GE1-U7856-30-00

Unavailable

4

CLAMP COMP (EU0)

90600-91736-00

$8.49

5

. WASHER, PLAIN

90201-05925-00

Unavailable

6

RIVET, BLIND

90267-48802-00

Unavailable

7

BAND (EU0)

90601-20009-00

Unavailable

8

METER ASY

GH3-6820A-20-00

Unavailable

9

SENDER, FUEL

GJ1-6824B-00-00

Unavailable

10

BAND, HOSE 62

90601-162U5-00

Unavailable

11

NUT, FLANGE

95720-05300-00

Unavailable

12

. WASHER, PLAIN

92990-05200-00

Unavailable

13

BRACKET, METER

GJ1-68238-00-00

Unavailable

14

BAND (EU0)

90601-20009-00

Unavailable

15

SENDER, OIL

GJ1-6824C-01-00

Unavailable

16

BATTERY CASE COMP.

GJ1-U8211-00-00

Unavailable

17

PACKING 3

GJ1-6266B-00-00

Unavailable

18

GROMMET

FJ0-68222-01-00

Unavailable

19

PAD, BATTERY 1

FJ0-68221-00-00

Unavailable

20

PAD, BATTERY 2

FJ0-68221-30-00

Unavailable

21

SCREW

90149-05984-00

Unavailable

22

CLIP, NYLON 14

90601-31402-00

Unavailable

23

SCREW, TAPPING

97780-40116-00

Unavailable

24

HOOK A

GA7-65772-00-00

Unavailable

25

RIVET, BLIND

90267-489U7-00

Unavailable

26

HOOK COMP

GJ1-66607-00-00

Unavailable

27

RIVET, BLIND

90267-489U7-00

Unavailable

28

MAT 3

EU0-67593-40-00

Unavailable
