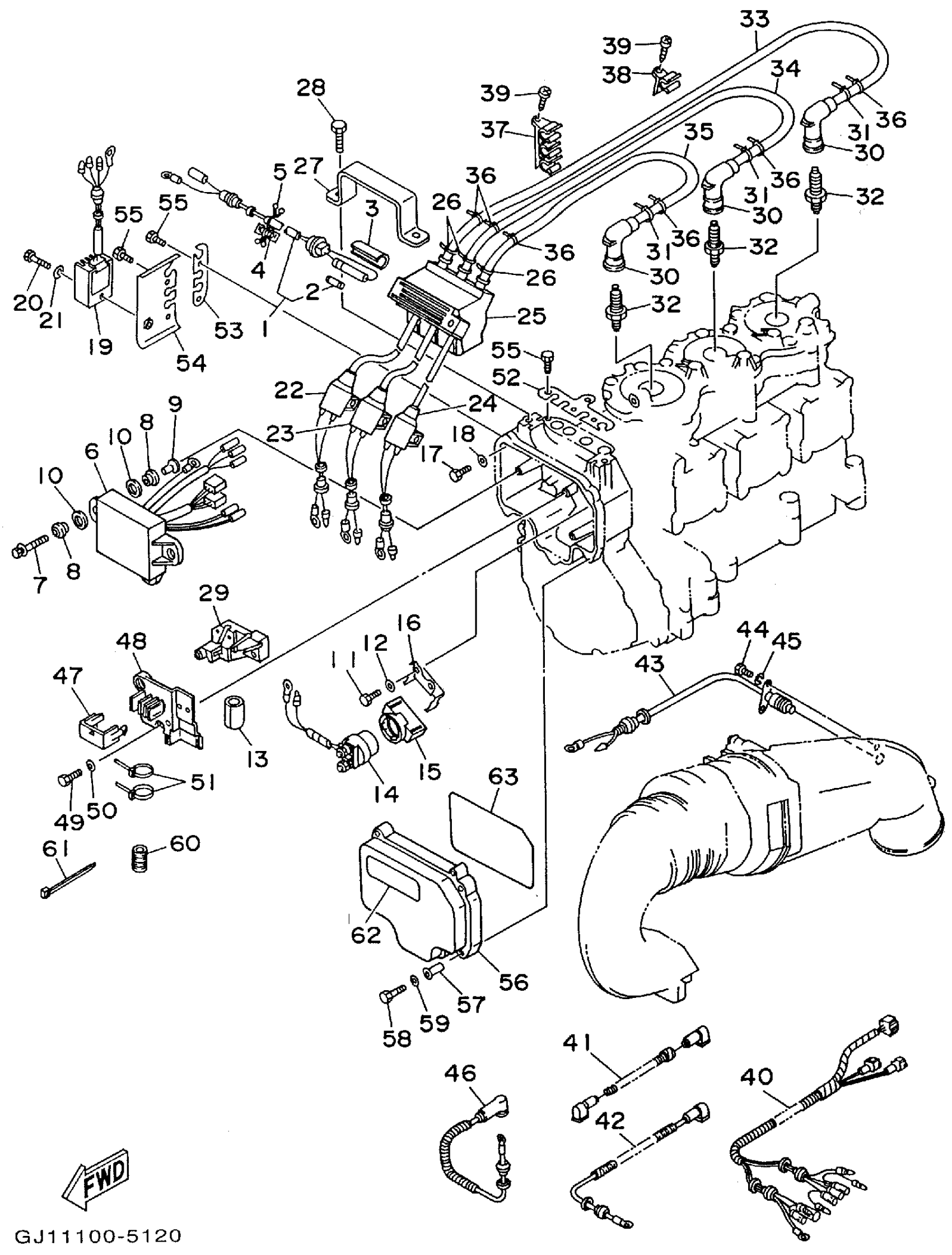

Yamaha RA1100T (WAVE RAIDER 1100) 1995 ELECTRICAL 1 Diagram

#

Description
Price

1

FUSE HOLDER ASSEMBLY

63M-82150-00-00

Unavailable

2

FUSE (10A)

1E6-82151-00-00

$5.80

3

DAMPER

63M-82176-00-00

Unavailable

4

FUSE SPEAR

63M-82159-00-00

Unavailable

5

CLAMP

90464-07M44-00

Unavailable

6

CDI UNIT ASSY

99999-03255-00

Unavailable

7

BOLT, WITH WASHER

90119-06293-00

Unavailable

8

GROMMET

90480-09M25-00

$6.64

9

COLLAR

90387-06M03-00

$7.70

10

WASHER, PLATE

90201-16M00-00

$4.41

11

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

12

WASHER, PLAIN (646)

92990-06600-00

$1.84

13

PROTECTER, WIRE HARNESS

63M-82589-00-00

Unavailable

14

STARTER RELAY ASSY

6G1-81941-10-00

$65.25

15

HOLDER, RELAY

6H4-81952-00-00

Unavailable

16

PLATE, SWITCH FITTING

63M-81945-00-00

Unavailable

17

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

18

WASHER, PLAIN (646)

92990-06600-00

$1.84

19

RECTIFIER & REGULATOR ASSY

63M-81960-00-00

Unavailable

20

BOLT(GH1)

97080-06012-00

$2.56

21

WASHER, PLAIN (646)

92990-06600-00

$1.84

22

IGNITION COIL ASSEMBLY

63M-85570-00-00

Unavailable

23

IGNITION COIL ASSEMBLY

63M-85570-10-00

Unavailable

24

IGNITION COIL ASSEMBLY

63M-85570-20-00

Unavailable

25

DAMPER

63M-85547-00-00

Unavailable

26

CLAMP

90465-10098-00

$1.68

27

BRACKET

63M-85542-00-00

Unavailable

28

BOLT(GH1)

97080-06012-00

$2.56

29

GROMMET

63M-85516-00-00

Unavailable

30

PLUG CAP ASSY

63M-82370-00-00

$77.80

31

CLAMP

90465-10098-00

$1.68

32

BR8HS NGK SCREW TOP PLUG 4PK

BR8-HS000-00-00

$4.28

33

TUBE, CORD

63M-82351-00-00

$13.40

34

TUBE, CORD

63M-82351-00-00

$13.40

35

TUBE, CORD

63M-82351-00-00

$13.40

36

CLAMP

90465-10098-00

$1.68

37

CLAMP, CORD

63M-81317-00-00

Unavailable

38

CLAMP, CORD

63M-81317-10-00

Unavailable

39

SCREW, PANHEAD (97701-50515-00)

90149-059U1-00

Unavailable

40

EXTENSION, WIRE LEAD

63M-82553-00-00

Unavailable

41

WIRE, LEAD

61L-82117-00-00

$106.05

42

WIRE, LEAD

63M-82117-10-00

Unavailable

43

THERMO SWITCH ASSEMBLY

63M-82560-00-00

Unavailable

44

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

45

WASHER, SPRING

92995-06100-00

$2.95

46

WIRE, LEAD

63M-82117-20-00

Unavailable

47

BAND

63M-85546-00-00

Unavailable

48

HOLDER

63M-85548-00-00

Unavailable

49

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

$1.57

50

WASHER, PLAIN (646)

92990-06600-00

$1.84

51

CLAMP

90465-13M60-00

$2.27

52

COVER

63M-85599-01-00

Unavailable

53

COVER

63M-85525-00-00

$15.89

54

PLATE

63M-85644-00-00

Unavailable

55

BOLT(GH1)

97080-06012-00

$2.56

56

COVER, IGNITION COIL

63M-82314-00-00

Unavailable

57

COLLAR (3H5)

90387-060A3-00

Unavailable

58

BOLT, HEXAGON

97013-05020-00

Unavailable

59

WASHER, PLAIN (646)

92990-05600-00

Unavailable

60

HOSE(64X)

90446-14M66-00

Unavailable

61

CLAMP

90465-11M59-00

$2.07

62

MARK 3

6R7-83623-40-00

$7.27

63

MARK 3

63M-83623-00-00

Unavailable
