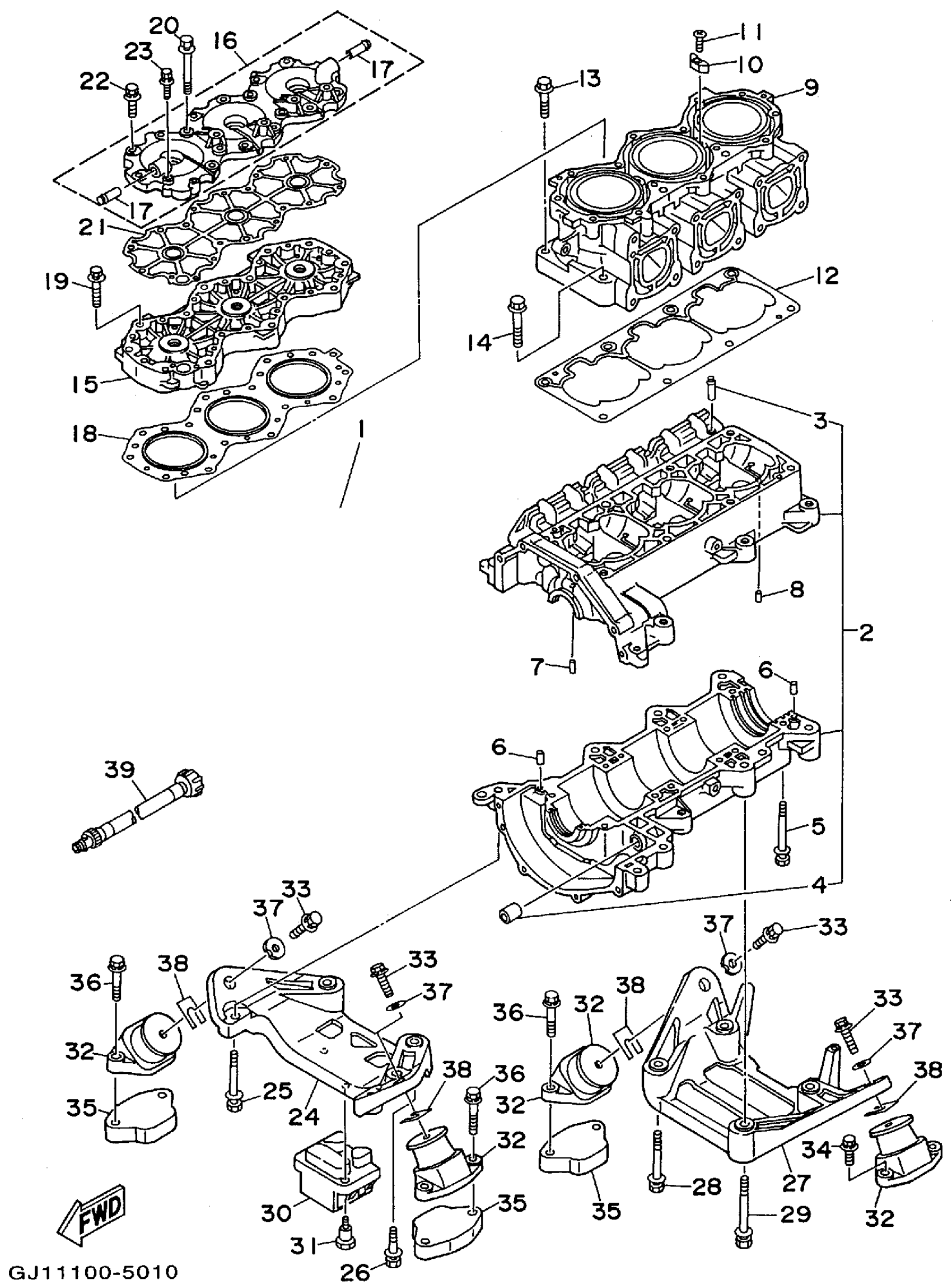

Yamaha RA1100T (WAVE RAIDER 1100) 1995 CYLINDER - CRANKCASE Diagram

#

Description
Price

1

CRANK CYLINDER ASSY

63M-W0090-01-8P

$8,342.41

2

CRANKCASE ASSY

63M-15100-00-00

Unavailable

3

NIPPLE

62T-14251-10-00

$4.51

4

. BUSH, SOLID

90380-12M29-00

Unavailable

5

BOLT, WITH WASHER

90119-08M55-00

$2.95

6

PIN, DOWEL (614)

93606-12019-00

$3.05

7

PIN (2H7)

93603-10049-00

Unavailable

8

PIN, DOWEL (8H1)

93604-07141-00

$1.29

9

CYLINDER 1

63M-11311-00-8S

Unavailable

10

ANODE

6E5-11325-00-00

$4.08

11

SCREW, FLAT HEAD(GA5)

98780-04014-00

$1.97

12

GASKET, CYLINDER

63M-11351-01-00

$31.57

13

BOLT, WITH WASHER

90119-10M56-00

$10.24

14

BOLT (6F5)

90119-10M07-00

$4.21

15

HEAD, CYLINDER 1

63M-11111-00-8S

$356.05

16

COVER, CYLINDER HEAD 1

63M-11191-00-8S

Unavailable

17

. NIPPLE

6K8-51129-00-00

$9.62

18

GASKET, CYLINDER HEAD 1

63M-11181-01-00

$124.23

19

BOLT, WITH WASHER

90119-08019-00

$4.79

20

BOLT, WITH WASHER

90119-08015-00

$2.79

21

GASKET, HEAD COVER 1

63M-11193-01-00

$53.99

22

BOLT, WITH WASHER(64T)

97513-08630-00

Unavailable

23

BOLT, W/WASHER

97513-06630-00

Unavailable

24

BRACKET, FRONT UPPER 1

63M-21415-03-00

$366.65

25

BOLT, WITH WASHER

90119-10M23-00

$10.24

26

BOLT, WITH WASHER

90119-10M72-00

$5.55

27

BRACKET, REAR UPPER 1

63M-21425-01-00

$313.62

28

BOLT, WITH WASHER

90119-10M23-00

$10.24

29

BOLT, WITH WASHER

90119-10M03-00

$9.08

30

STOPPER, UPPER MOUNT

63M-44532-00-00

Unavailable

31

BOLT

90109-06M70-00

Unavailable

32

MOUNT RUBBER

63M-44517-01-94

$96.95

33

BOLT, WITH WASHER

90119-08904-00

$3.18

34

BOLT, WITH WASHER

90119-08038-00

$4.99

35

SPACER, ENGINE MOUNT

GJ1-6721B-00-00

Unavailable

36

BOLT, WITH WASHER

90119-089U1-00

$3.23

37

PLATE

EU0-67324-00-00

$8.14

38

SHIM (T=0.1)

EU0-67354-A0-00

$4.51

38

SHIM (T=0.1)

EU0-67354-A0-00

$4.51

38

SHIM (T=0.3)

EU0-67354-B0-00

$5.45

38

SHIM (T=0.3)

EU0-67354-B0-00

$5.45

38

SHIM (T=0.5)

EU0-67354-C0-00

$4.55

38

SHIM (T=0.5)

EU0-67354-C0-00

$4.55

38

SHIM (T=1.0)

EU0-67354-D0-00

$4.09

38

SHIM (T=1.0)

EU0-67354-D0-00

$4.09

38

SHIM (T=2.0)

EU0-67354-E0-00

$4.09

38

SHIM (T=2.0)

EU0-67354-E0-00

$4.09

39

CONDUCTION ASSY (US)

67X-E2590-00-00

$2.08
