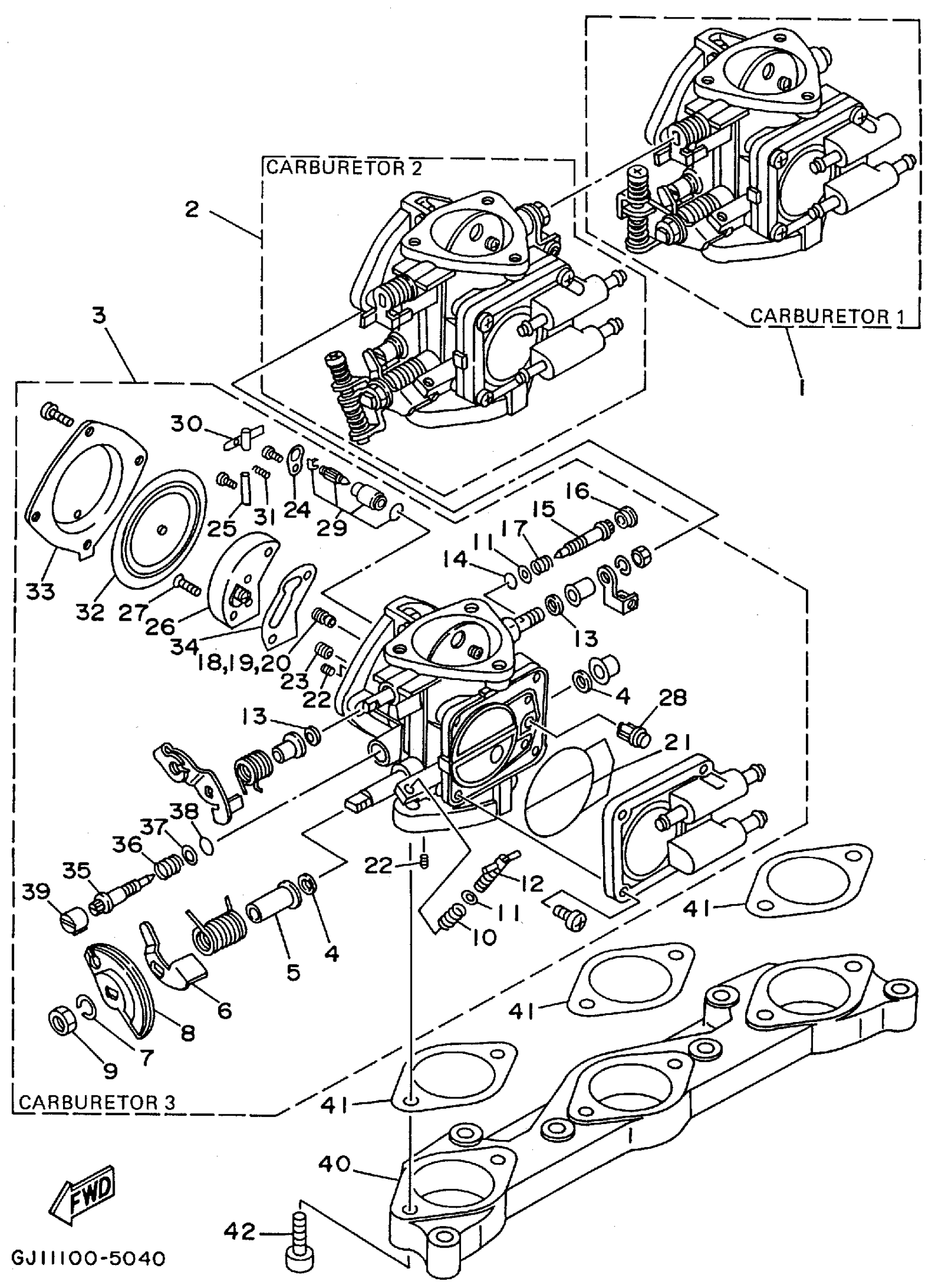

Yamaha RA1100T (WAVE RAIDER 1100) 1995 CARBURETOR Diagram
#
1
CARBURETOR ASY 1
64T-14301-01-00
Unavailable
2
CARBURETOR ASSY 2
64T-14302-01-00
Unavailable
3
CARBURETOR ASSY 3
64T-14303-01-00
Unavailable
4
. WASHER
6R7-14596-01-00
Unavailable
5
. COLLAR
6K8-14534-10-00
Unavailable
6
. BRACKET, THROTTLE 1
6K8-14926-10-00
Unavailable
7
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
8
. THROTTLE SHAFT ASSEMBLY
6K8-14930-00-00
Unavailable
9
. NUT
95380-08700-00
Unavailable
10
. SPRING, ADJUST SCREW
6K8-14531-00-00
Unavailable
11
WASHER,NEEDLE
812-14235-00-00
Unavailable
12
SCREW,ADJUST
6M6-14521-01-00
Unavailable
13
. WASHER
6K8-14597-11-00
Unavailable
14
. O-RING
6K8-14562-00-00
Unavailable
15
. PLATE, NEEDLE FITTING
63M-14946-00-00
Unavailable
16
. CAP, CARBURETOR
6K8-14471-10-00
Unavailable
17
. SPRING, ADJUST SCREW
6K8-14533-00-00
Unavailable
18
JET,MAIN #107.5
3G2-1423A-72-00
Unavailable
19
JET, MAIN (# 95)
3G2-14231-19-00
Unavailable
20
JET,MAIN #107.5
3G2-1423A-72-00
Unavailable
21
. O-RING
6K8-14564-00-00
Unavailable
22
. SCREW
6K8-14521-10-00
Unavailable
23
. JET, MAIN (# 75)
830-14231-15-00
Unavailable
24
. PLATE
6K8-14527-11-00
Unavailable
25
. PIN, FLOAT
6K8-14579-00-00
Unavailable
26
. BODY 1
6R7-24412-01-00
Unavailable
27
SCREW, STOP
6K8-14523-12-00
Unavailable
28
. STRAINER
6R7-14569-00-00
Unavailable
29
NEEDLE
61X-14916-16-00
Unavailable
30
. ARM, FLOAT
6K8-14547-01-00
Unavailable
31
. SPRING
6R7-14253-00-00
Unavailable
32
. DIAPHRAGM, PUMP
6R7-14541-00-00
Unavailable
33
. BODY, PUMP 1
6R7-14542-00-00
Unavailable
34
. GASKET
6K8-14536-11-00
Unavailable
35
. SCREW, PILOT
63M-14923-00-00
Unavailable
36
. SPRING
6K8-14923-00-00
Unavailable
37
. WASHER
6K8-14537-00-00
Unavailable
38
O-RING
583-14561-00-00
Unavailable
39
. CAP, CARBURETOR
6K8-14481-10-00
Unavailable
40
PLATE
63M-14243-00-00
Unavailable
41
GASKET
63M-14398-00-00
Unavailable
42
BOLT, HOLDING
63M-14162-00-00
Unavailable
