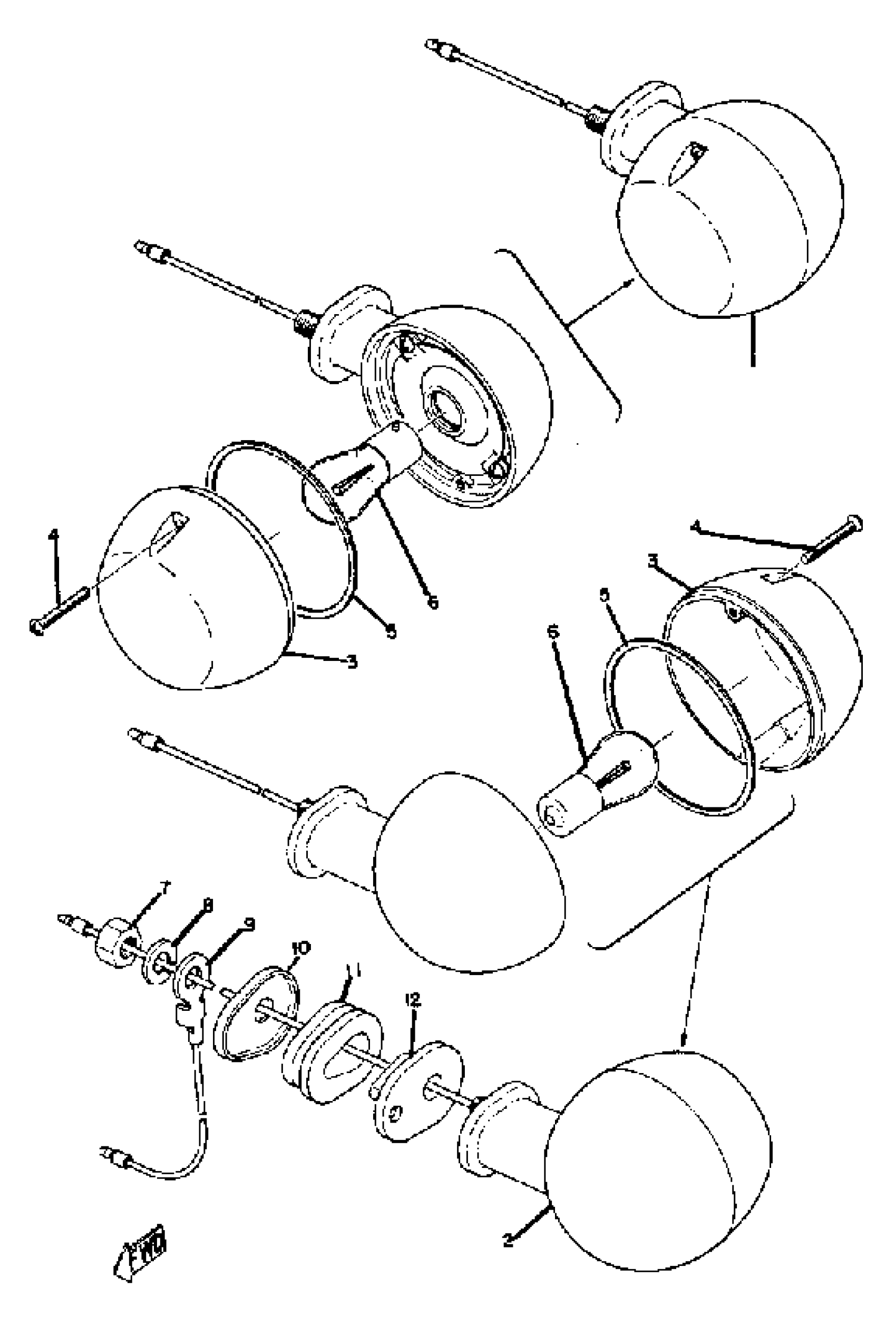

Yamaha R5 (R5) 1970 TURNSIGNAL R5 Diagram

FRT FLSHR LITE ASSEMBLY

278-83310-71-93

Unavailable

R FLSHR LITE ASSEMBLY

(278-83330-76-93)

Unavailable

LENS, FLASHER

183-83312-70-00

Unavailable

. LENS, REAR RED FLASHER

211-83332-75-00

Unavailable

SCREW, LENS FITTING (3X32)

183-83333-71-00

$8.99

GASKET,FLASHER LANS

183-83313-70-00

Unavailable

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

NUT(6L2)

95333-08600-00

$2.49

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

WIRE, EARTH (GROUND)

256-84313-01-00

Unavailable

WASHER, SPEC''L SHAP

90209-08028-00

Unavailable

DAMPER, FLASHER 1

256-83321-00-00

Unavailable

COLLAR, FLASHER 1

256-83316-00-00

Unavailable
