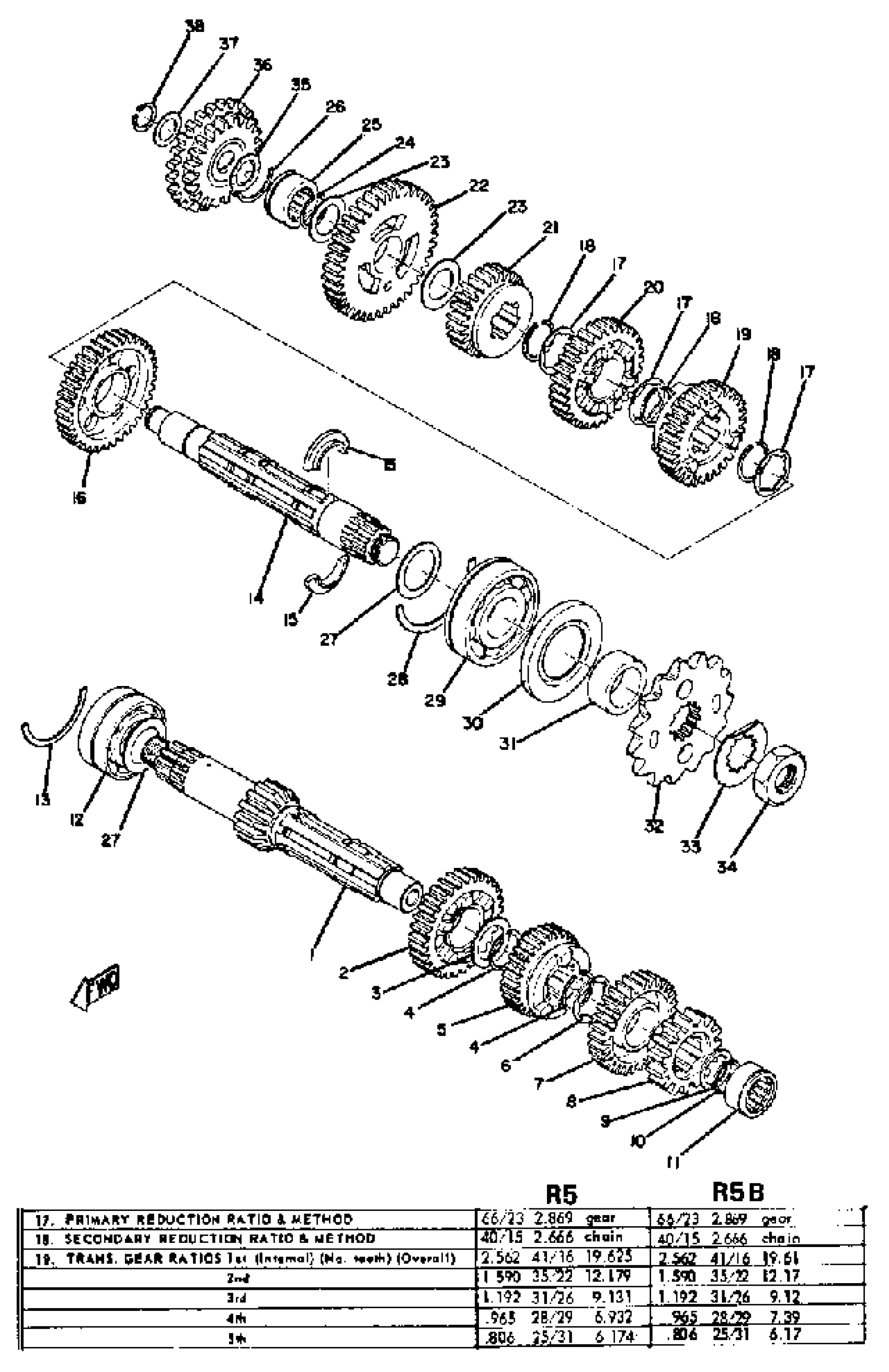

Yamaha R5 (R5) 1970 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

(278-17411-00-00)

Unavailable

2

GEAR, 5TH PINION

(278-17151-00-00)

Unavailable

3

WASHER PLATE 152172260000

90201-25490-00

$10.49

4

CIRCLIP (4L0)

93440-25084-00

$5.60

5

GEAR, 3RD PINION

(278-17131-00-00)

Unavailable

6

WASHER, SPEC''L SHAP

(90209-21081-00)

Unavailable

6

WASHER, SPEC''L SHAP

90209-21106-00

Unavailable

7

GEAR, 4TH PINION

(278-17141-00-00)

Unavailable

8

GEAR, 2ND PINION

(278-17121-00-00)

Unavailable

9

WASHER PLATE 132172160000

90201-20266-00

$9.49

10

CIRCLIP(1AR)

99009-20400-00

$8.49

11

BRG,CYL-CAL ROLLER 36G NT

93311-22027-00

$52.99

12

BRG,R-B 5205 52MM 190G KY

93305-20502-00

Unavailable

13

CLIP

278-17414-00-00

Unavailable

13

CLIP

(278-17414-09-00)

Unavailable

14

AXLE, DRIVE

(278-17421-00-00)

Unavailable

15

SPACER, DRIVE AXLE

156-17429-00-00

Unavailable

16

GEAR, 2ND WHEEL

(278-17221-00-00)

Unavailable

17

WASHER, SPEC''L SHAP

(90209-21081-00)

Unavailable

17

WASHER, SPEC''L SHAP

90209-21106-00

Unavailable

18

CIRCLIP (4L0)

93440-25084-00

$5.60

19

GEAR, 4TH WHEEL

(278-17241-00-00)

Unavailable

20

GEAR, 5TH PINION

(278-17151-00-00)

Unavailable

21

GEAR, 5TH WHEEL

(278-17251-00-00)

Unavailable

22

GEAR, 1ST WHEEL

(278-17211-00-00)

Unavailable

23

WASHER PLATE 168171160000

90201-20278-00

Unavailable

24

CIRCLIP(1AR)

99009-20400-00

$8.49

25

BEARING, CYL.#11

93311-42045-00

Unavailable

26

CIR CLIP

278-17425-00-00

Unavailable

27

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

Unavailable

27

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

Unavailable

28

CIRCLIP

278-17424-01-00

Unavailable

29

BRG,R-B 6305 62MM 225G NK

93306-30504-00

Unavailable

30

OIL SEAL (35X62X6-371)

93102-35109-00

Unavailable

31

COLLAR(1AE)

90387-253M9-00

Unavailable

32

SPROCKET DRIVE

9384E-15155-00

Unavailable

33

WASHER, LOCK(3LD)

90215-21290-00

Unavailable

34

NUT 152174630000

90179-18020-00

Unavailable

35

WASHER WAVE 137156430000

90206-15021-00

Unavailable

36

IDLE GEAR ASSEMBLY

(278-15650-00-00)

Unavailable

37

SHIM, MAIN AXLE (1.0)

164-17417-00-10

Unavailable

38

CIRCLIP(1AR)

99009-15400-00

Unavailable
