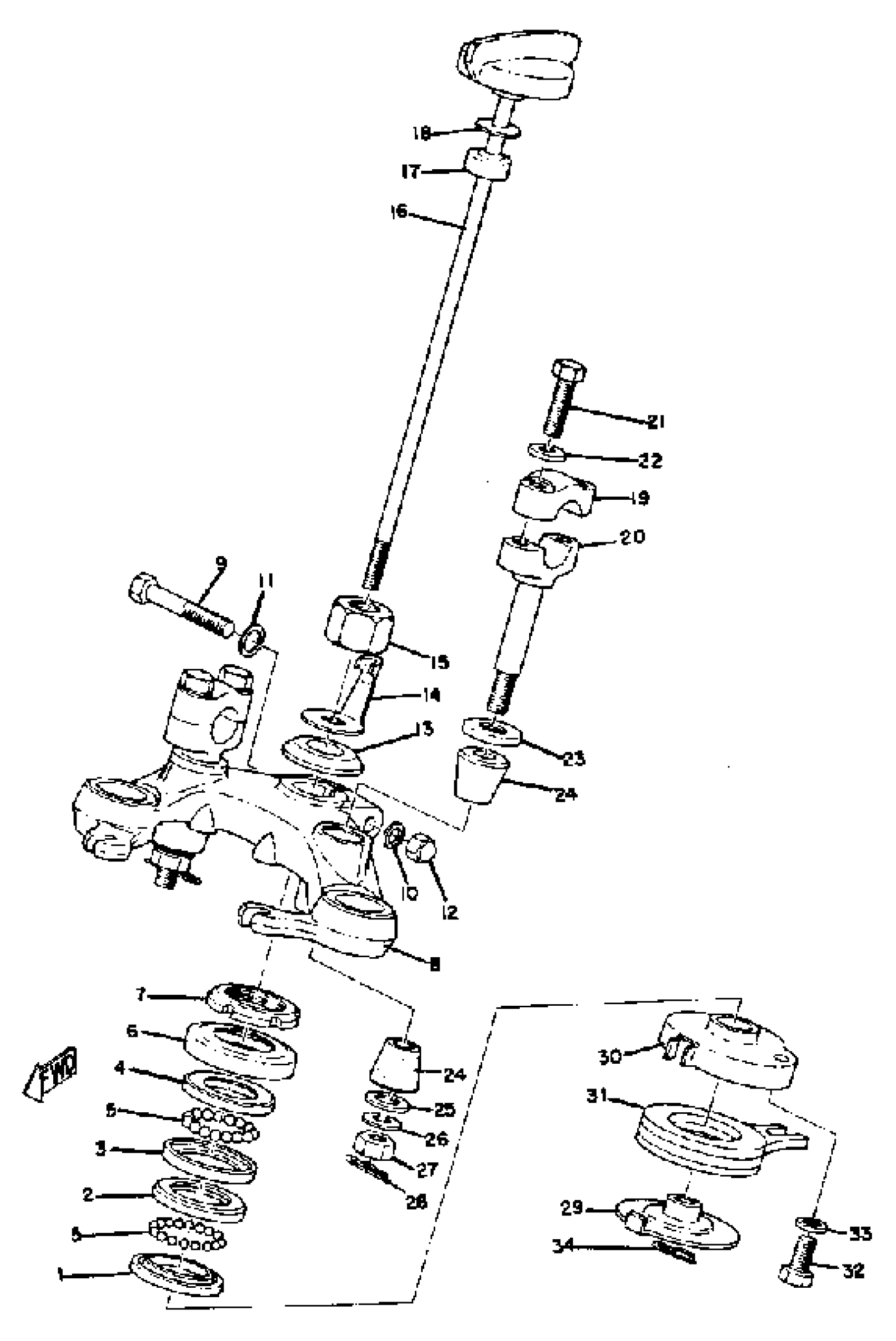

Yamaha R5 (R5) 1970 STEERING Diagram

#

Description
Price

1

RACE, BALL 1

B6E-23411-00-00

$8.49

2

RACE, BALL 2

B6E-23412-00-00

$13.49

3

RACE,BALL 2

4FP-F3412-10-00

Unavailable

4

RACE, BALL 1

4FP-F3411-20-00

$9.99

5

BALL

93501-04011-00

$8.49

6

COVER, BALL RACE

136-23415-00-00

$8.99

7

NUT

90179-25004-00

$24.99

8

CROWN, HANDLE

(278-23435-00-00)

Unavailable

9

BOLT, HEXAGON

97013-08055-00

$2.55

10

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

11

WASHER, PLATE 1562722600

90201-08083-00

$9.49

12

NUT, CROWN

95303-08800-00

$9.49

13

WASHER, SPEC''L SHAP

90209-17057-00

Unavailable

14

SPRING

(246-23428-00-00)

Unavailable

15

NUT (95301-16600)

95303-16600-00

Unavailable

16

SHAFT, DAMPER

278-23419-00-00

Unavailable

17

WASHER, PLATE 1412342700

90202-06008-00

Unavailable

18

WASHER, PLATE

90201-06061-00

Unavailable

19

HOLDER, HANDLE UPPER

401-23441-00-98

Unavailable

20

HOLDER, HANDLE LWR

256-23442-00-98

Unavailable

21

BOLT, HEXAGON

97013-08030-00

Unavailable

22

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

23

WASHER 278234480000

90209-12102-00

Unavailable

24

BUSH, SPEC''L RUBBER

(90385-12020-00)

Unavailable

25

WASHER, PLATE (3X3)

90201-15797-00

Unavailable

26

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

27

NUT (682)

95380-10700-00

Unavailable

28

CLIP 136253750000

90468-12006-00

Unavailable

29

PLATE, DAMPER 1

(169-23421-00-33)

Unavailable

30

PLATE, DAMPER 3

(246-23423-00-00)

Unavailable

31

PLATE, DAMPER 2

(169-23422-01-00)

Unavailable

32

BOLT(62E)

97013-08012-00

Unavailable

32

BOLT(JA9)

90101-08691-00

Unavailable

33

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

34

CLIP (156-83525-00)

90468-10050-00

Unavailable
