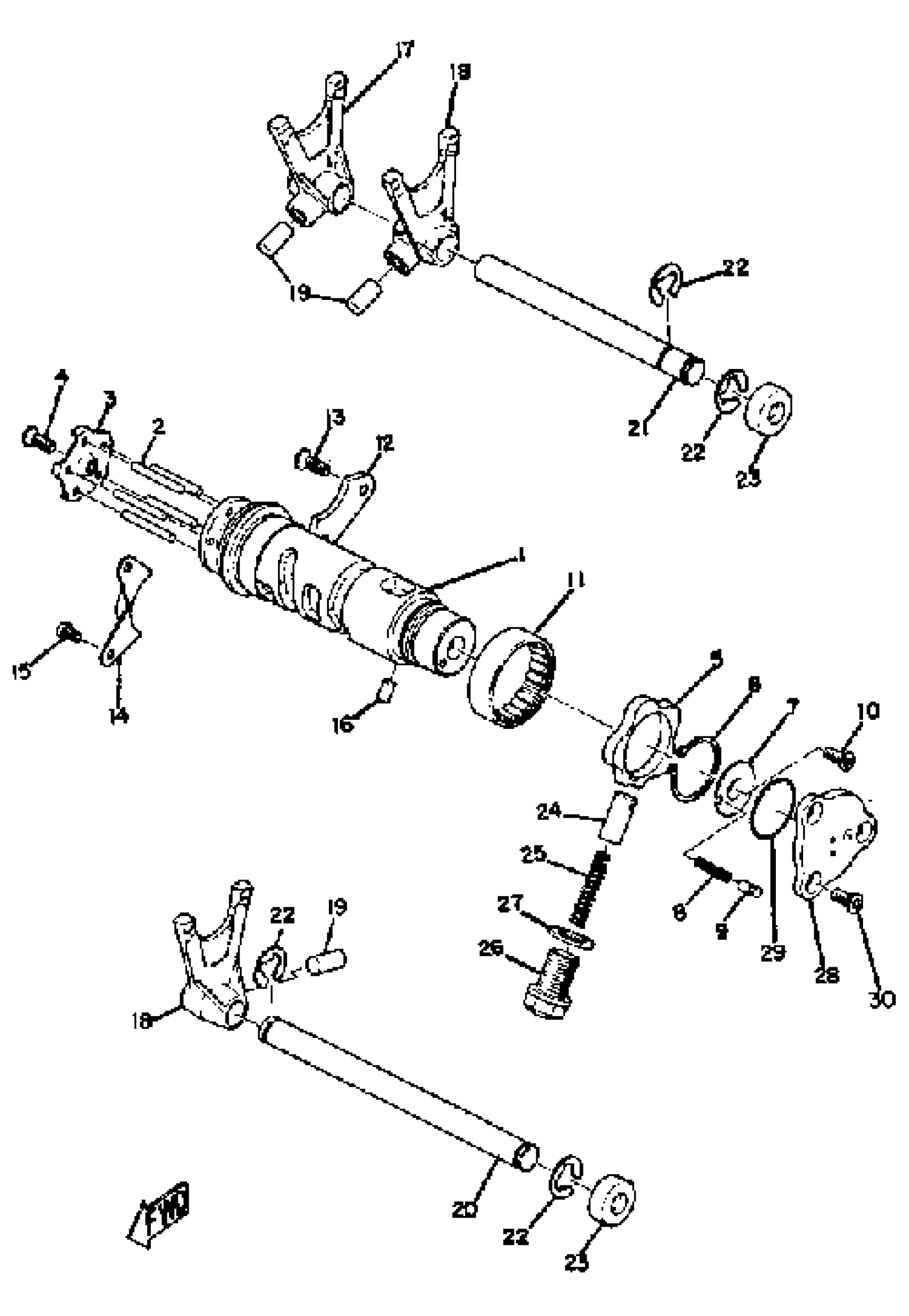

Yamaha R5 (R5) 1970 SHIFT CAM - FORK Diagram

CAM, SHIFT

(278-18541-00-00)

Unavailable

PIN,DOWEL (620)

93604-22050-00

$8.49

PLATE, SIDE 1

(278-18561-00-00)

Unavailable

SCREW, FLAT

98707-05012-00

$1.71

PLATE, STOPPER

(278-18141-00-00)

Unavailable

CIRCLIP(4A6)

99009-30400-00

$8.49

PLATE, SIDE 2

278-18566-00-00

Unavailable

SPRING COMPRESSION278185450000

90501-06022-00

$8.49

POINT, NEUTRAL

4UN-18542-00-00

$8.99

SCREW, FLAT

98707-05012-00

$1.71

BRG,CYL-CAL ROLLER 22G NT

93315-23612-00

$33.99

PLATE, STOPPER 2

(278-18562-00-00)

Unavailable

SCREW, FLAT

98707-06014-00

$8.49

GUIDE

(278-18179-00-00)

Unavailable

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

PIN, DOWEL (278)

93604-08071-00

Unavailable

FORK, SHIFT 1

278-18511-00-00

Unavailable

FORK, SHIFT 2

278-18512-00-00

Unavailable

PIN, STRAIGHT

90250-08017-00

Unavailable

BAR, SHIFT FORK GUIDE 1

278-18531-00-00

Unavailable

BAR, SHIF FRK GDE 2

(278-18535-00-00)

Unavailable

CIRCLIP

99006-10600-00

Unavailable

PLUG(3AJ)

90338-22207-00

Unavailable

STOPPER, CAM

(278-18547-00-00)

Unavailable

STOPPER, CAM

278-18547-02-00

Unavailable

SPRING COMPRESSION278185570000

90501-10062-00

Unavailable

BOLT (1K8)

90109-14485-00

Unavailable

WASHER, PROTECTOR

4F4-14766-00-00

Unavailable

NEUTRAL SWITCH ASSY

1L9-82540-00-00

Unavailable

O-RING (371)

93210-29196-00

Unavailable

O-RING

93210-31MJ5-00

Unavailable

SCREW, FLAT

98707-05012-00

$1.71
