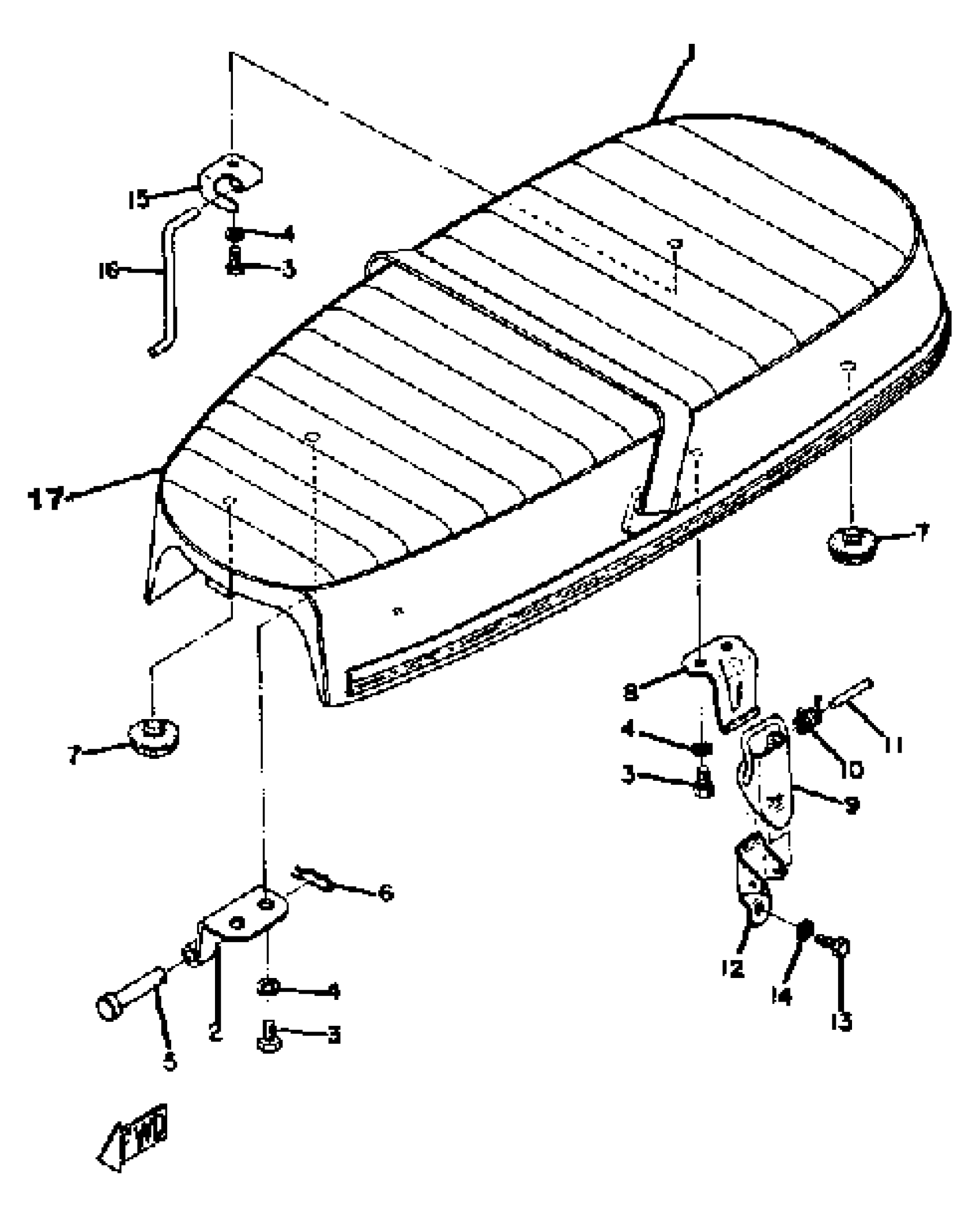

Yamaha R5 (R5) 1970 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY

360-24730-06-00

Unavailable

2

HINGE, SEAT

248-24726-00-33

Unavailable

3

BOLT (661)

97013-06012-00

$4.40

4

WASHER, SPRING

92995-06100-00

$2.95

5

PIN, CLEVIS

91701-05055-00

$5.70

6

CLIP (156-83525-00)

90468-10050-00

$2.16

7

PAD, SEAT

1L9-24741-00-00

$8.31

8

BRACKET, SEAT

278-24728-00-00

Unavailable

9

LEVER, SEAT

214-24776-00-33

Unavailable

10

. SPRING, TORSION

90508-10012-00

Unavailable

11

. PIN, SPECIAL SHAPE

90249-04068-00

Unavailable

12

BRACKET, SEAT

214-24718-00-00

Unavailable

13

BOLT(3JP)

97017-06010-00

$2.44

14

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

15

BRACKET, SEAT

(278-24748-00-00)

Unavailable

16

STOPPER

(278-24768-00-00)

Unavailable

17

COVER, DOUBLE SEAT

(278-24731-00-00)

Unavailable
