1970 Yamaha R5 (R5) Fender Diagram

← All diagrams

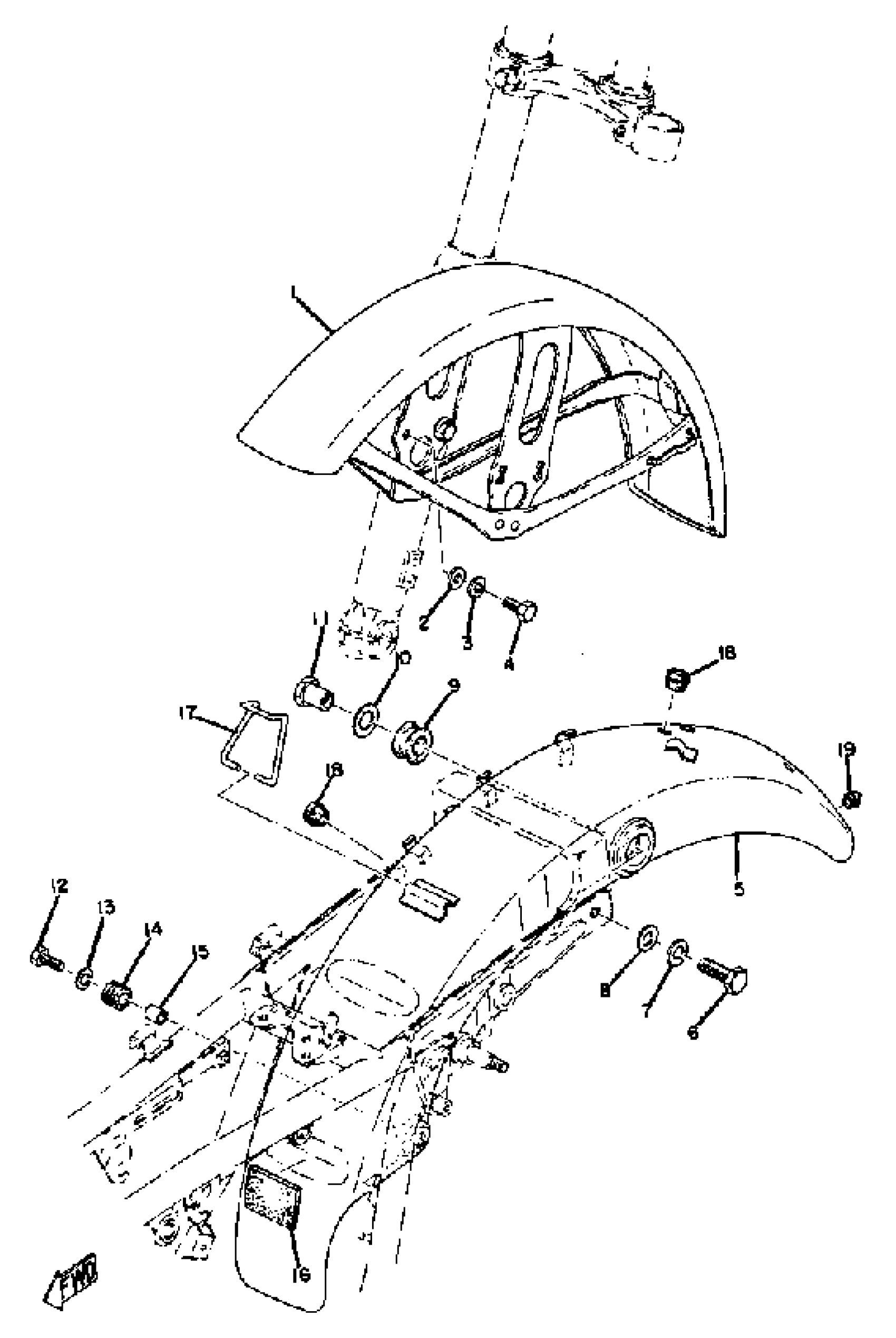

Find the part on the Fender diagram for your 1970 Yamaha R5 (R5), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha R5 (R5) Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT

(278-21510-00-93)

1
Out of stock

2

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

3

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

4

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

5

FENDER, REAR

(351-21610-00-93)

1
Out of stock

6

BOLT(N02)

97070-10035-00

1

$11.38

In stock

7

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

8

1

$3.00

In stock

9

DAMPER, REAR

168-21639-00-00

1
Out of stock

10

WASHER, PLATE

90201-15239-00

1
Out of stock

11

NUT, SPEC''L SHAPE

90179-10123-00

1
Out of stock

12

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

13

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

14

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

15

COLLAR (J10)

90387-06026-00

1

$6.91

In stock

16

SEAL

(214-21268-00-00)

1
Out of stock

17

CLAMP, WIRE HRNES 2

(278-21336-00-00)

1
Out of stock

18

GROMMET 152845180000

90480-12013-00

—
Out of stock

19

DAMPER 2

5A8-21639-00-00

—

$8.17

In stock
