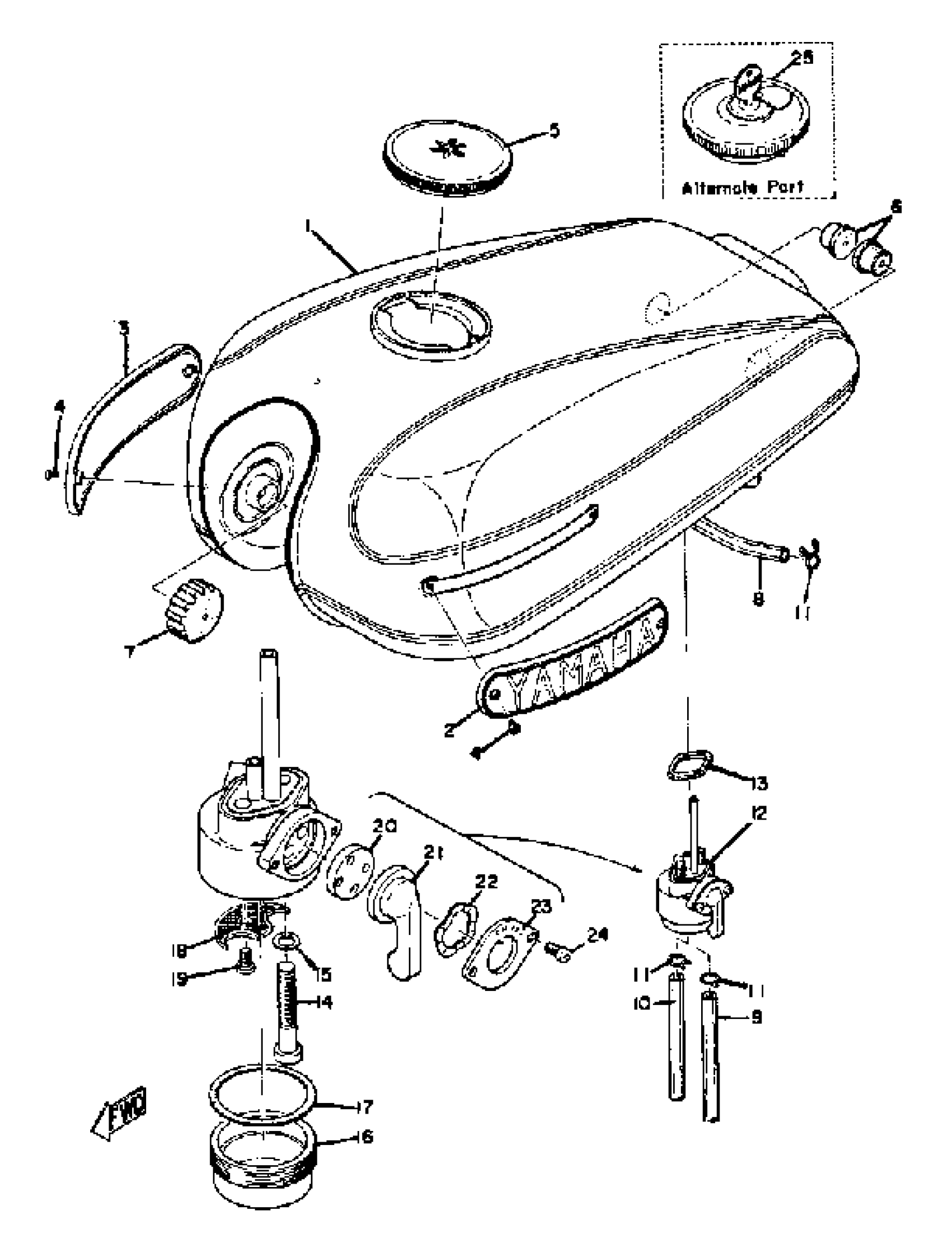

Yamaha R5 (R5) 1970 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

(278-24110-00-01)

Unavailable

1

FUEL TANK

(278-24110-00-03)

Unavailable

1

FUEL TANK

(278-24110-00-04)

Unavailable

1

EMBLEM 1

278-24161-60-00

Unavailable

3

EMBLEM 2

278-24162-60-00

Unavailable

4

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

5

CAP ASSY

7V5-24610-01-00

$48.99

6

DAMPER, LOCATING 2

122-24182-01-00

Unavailable

7

DAMPER, LOCATING 1

3TB-24181-00-00

$14.49

8

HOSE (L420)

90445-092K1-00

$12.49

9

HOSE (L420)

90445-092K1-00

$12.49

10

HOSE (L420)

90445-092K1-00

$12.49

11

CLIP 101235600

90467-08003-00

$10.49

12

FUEL COCK ASSEMBLY 1

360-24500-00-00

Unavailable

13

GASKET, BODY

168-24512-00-00

$14.49

14

SCREW, PAN HEAD(6H4)

97885-06035-00

Unavailable

15

GASKET(J17)

90430-06218-00

Unavailable

16

. CUP, FILTER

360-24521-00-00

Unavailable

17

. GASKET

168-24522-00-00

Unavailable

18

. NET, FILTER 2

168-24515-00-00

Unavailable

19

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

20

VALVE

137-24523-00-00

Unavailable

21

. LEVER, COCK

168-24524-00-00

Unavailable

22

WASHER, WAVE

132-24518-00-00

Unavailable

23

PLATE, LEVER FITTING

(132-24525-01-00)

Unavailable

24

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

25

CAP ASSY

7V5-24610-01-00

$48.99
