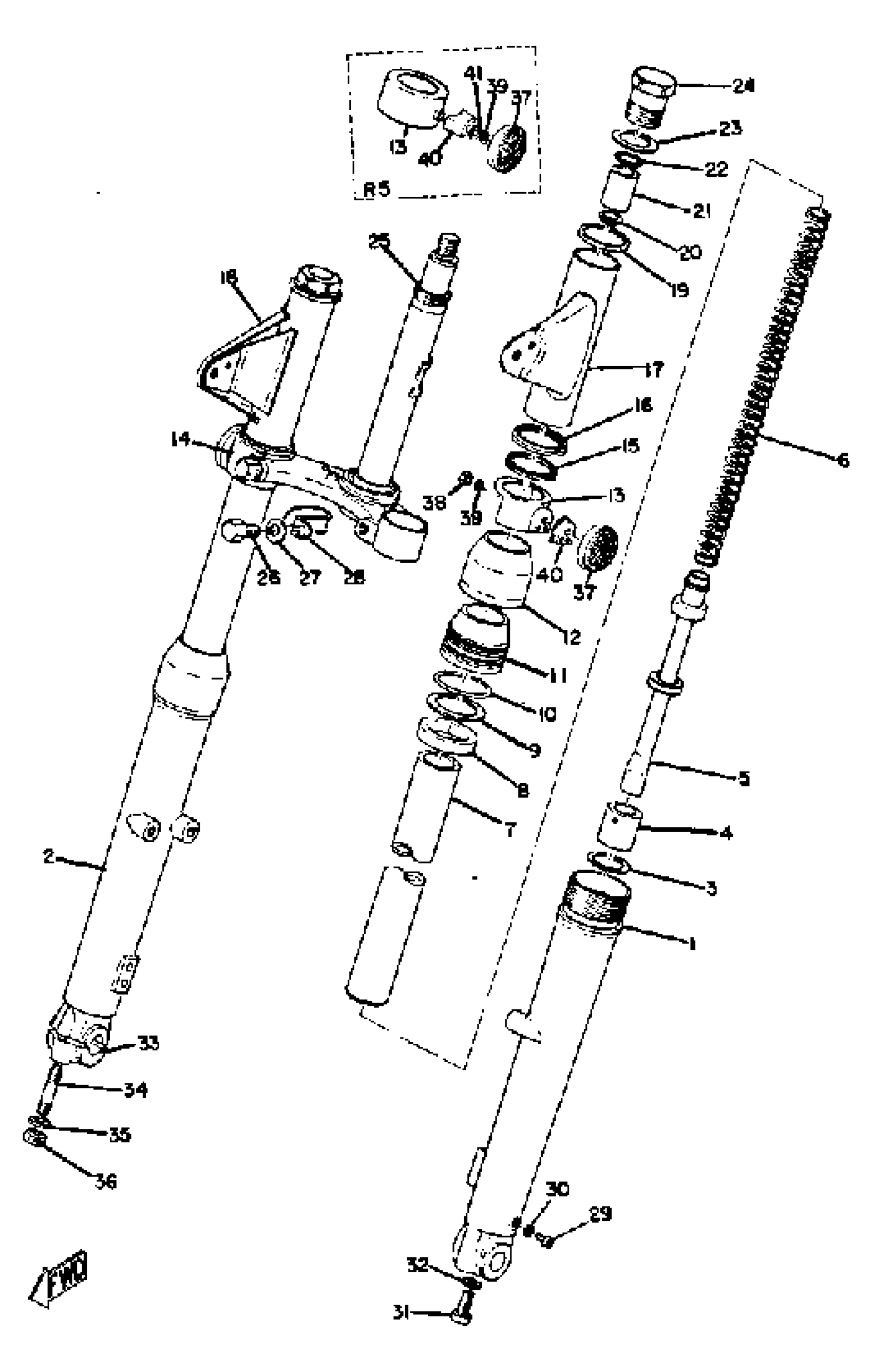

Yamaha R5 (R5) 1970 FRONT FORK Diagram

#

Description

Price

1

FRONT FORK ASSEMBLY

(278-23100-50-34)

Unavailable

1

FRONT FORK ASSEMBLY

(278-23100-61-71)

Unavailable

1

TUBE, OUTER 1

(278-23126-50-00)

Unavailable

2

TUBE, OUTER 2

(278-23136-50-00)

Unavailable

3

. CIRCLIP, INNER

93450-30033-00

Unavailable

4

PISTON, FRONT FORK

(278-23171-50-00)

Unavailable

5

CYLINDER, FRONT FORK

(278-23170-50-00)

Unavailable

6

SPRING, FRONT FORK

(278-23141-50-00)

Unavailable

7

TUBE, INNER 1

(278-23124-50-00)

Unavailable

8

OIL SEAL

584-23145-50-00

$62.99

9

.. WASHER, OIL SEAL

214-23146-00-00

Unavailable

10

.. CLIP, OIL SEAL

214-23156-00-00

Unavailable

11

SEAL,DUST

278-23144-50-00

Unavailable

12

. COVER, DUST SEAL

278-23148-50-00

Unavailable

13

COVER, OUTER 1

(275-23122-60-00)

Unavailable

13

COVER, OUTER 1

(278-23122-61-00)

Unavailable

14

COVER, OUTER 1

(275-23122-60-00)

Unavailable

14

COVER, OUTER 2

(278-23132-61-00)

Unavailable

15

. GASKET (LAMP STAY)

291-23163-61-00

Unavailable

16

. GUIDE, COVER LOWER

447-23116-52-00

Unavailable

17

COVER, UPPER 1

(278-23121-50-71)

Unavailable

17

. UNAVAILABLE IN PRICE BOOK

278-23122-50-34

Unavailable

18

COVER, UPPER 2

(278-23131-50-34)

Unavailable

18

COVER, UPPER 2

(278-23131-50-71)

Unavailable

19

. GUIDE, COVER UPPER

168-23115-00-00

Unavailable

20

. SEAT, SPRING UPPER

278-23142-50-00

Unavailable

21

SPACER

(214-23118-00-00)

Unavailable

22

. GASKET

214-23114-00-00

Unavailable

23

WASHER, CAP

(256-23112-61-00)

Unavailable

24

BOLT, CAP

(256-23111-60-00)

Unavailable

25

UNDER BRACKET

(278-23340-31-33)

Unavailable

26

BOLT 1

(278-23346-50-00)

Unavailable

27

. UNAVAILABLE IN PRICE BOOK

92909-10100-00

Unavailable

28

HOLDER, CABLE 1

(256-23318-60-00)

Unavailable

29

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

30

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

31

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

32

GASKET

509-23158-L0-00

Unavailable

33

HOLDER, AXLE

(278-23167-50-00)

Unavailable

34

BOLT, STUD (278)

90116-08261-00

Unavailable

35

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

36

NUT(6L2)

95333-08600-00

Unavailable

37

. REFLECTOR, FRONT 1

341-85111-00-00

Unavailable

38

NUT, HEXAGON (663)

95380-05600-00

Unavailable

39

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

40

COVER, RFLCTR STAY

(256-23162-60-00)

Unavailable

40

DAMPER

(278-85113-00-00)

Unavailable

41

. WASHER, PLAIN

92990-05200-00

Unavailable
