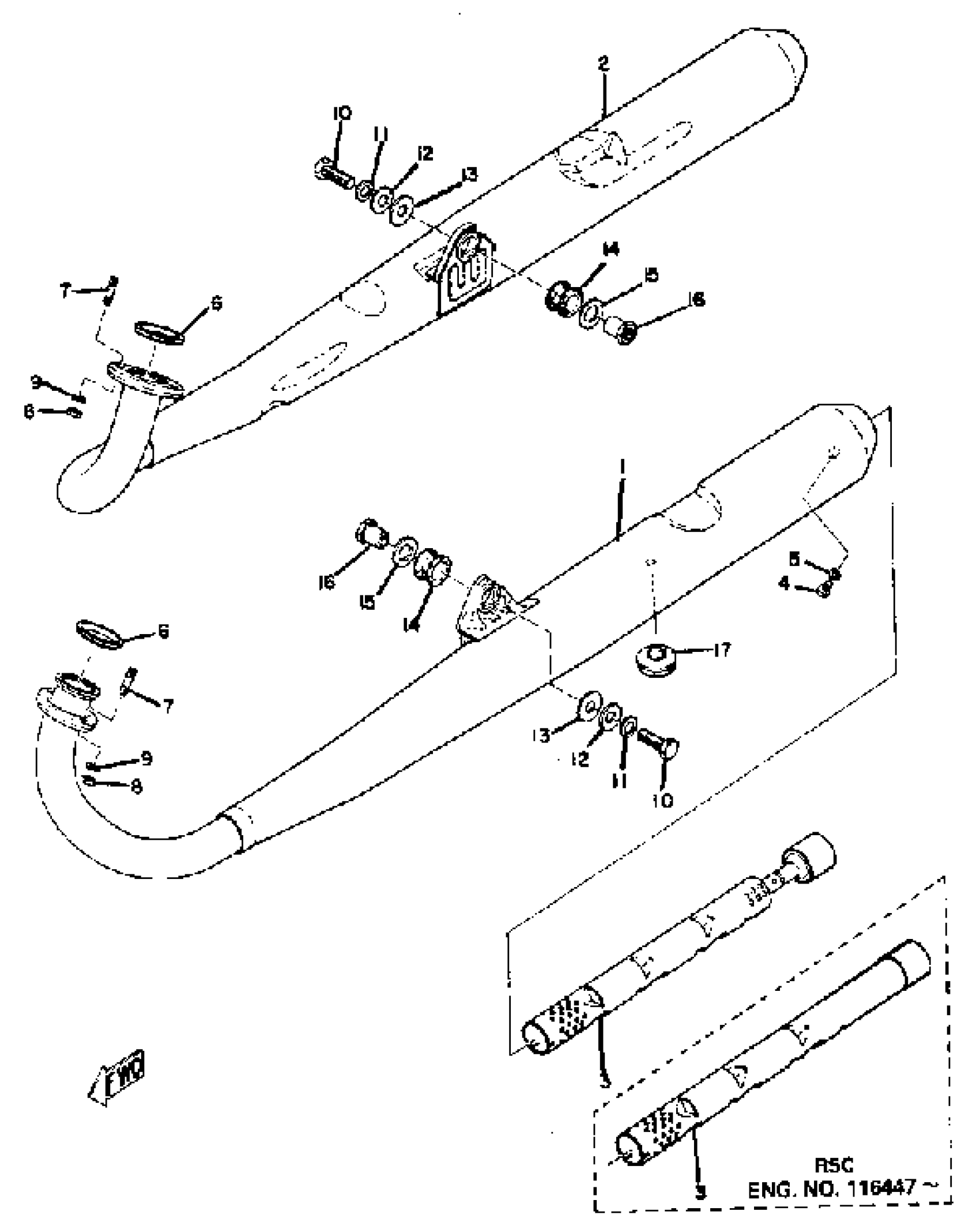

Find the part on the Exhaust diagram for your 1970 Yamaha R5 (R5), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha R5 (R5) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L 001

(278-14610-01-00)

1
Out of stock

1

EXHAUST PIPE ASSEMBLY L 001

(278-14610-01-00)

1
Out of stock

1

EXHAUST PIPE ASSEMBLY L

(278-14610-61-00)

1
Out of stock

2

EXHAUST PIPE ASSEMBLY R 001

(278-14620-51-00)

1
Out of stock

2

EXHAUST PIPE ASSEMBLY R

(278-14620-61-00)

1
Out of stock

3

. SILENCER, EXHAUST

278-14753-00-00

1
Out of stock

3

. SILENCER, EXHAUST 002

(278-14753-50-00)

1
Out of stock

4

SCREW PAN HEAD

98580-06010-00

1
Out of stock

5

WASHER, SPRING

92995-06100-00

1
Out of stock

6

GASKET, EXHAUST PIPE

3PA-14613-10-00

1
Out of stock

7

BOLT, STUD (17W)

90116-08408-00

—
Out of stock

8

NUT(6L2)

95333-08600-00

1
Out of stock

9

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

10

BOLT,FLANGE

95023-10035-00

1
Out of stock

11

YBS67-10 WASHER, SPRING

92990-10100-00

1
Out of stock

12

958-69527-00 WASHER, PLAIN

92990-10200-00

—
Out of stock

13

WASHER, PLATE(3BM)

90201-105R9-00

—
Out of stock

14

DAMPER, REAR

168-21639-00-00

—
Out of stock

15

WASHER, PLATE

90201-15239-00

1
Out of stock

16

NUT, SPEC''L SHAPE

90179-10123-00

1
Out of stock

17

STOPPER MAIN STAND

278-27114-00-00

—
Out of stock

18

PAD, SEAT

1L9-24741-00-00

—
Out of stock
