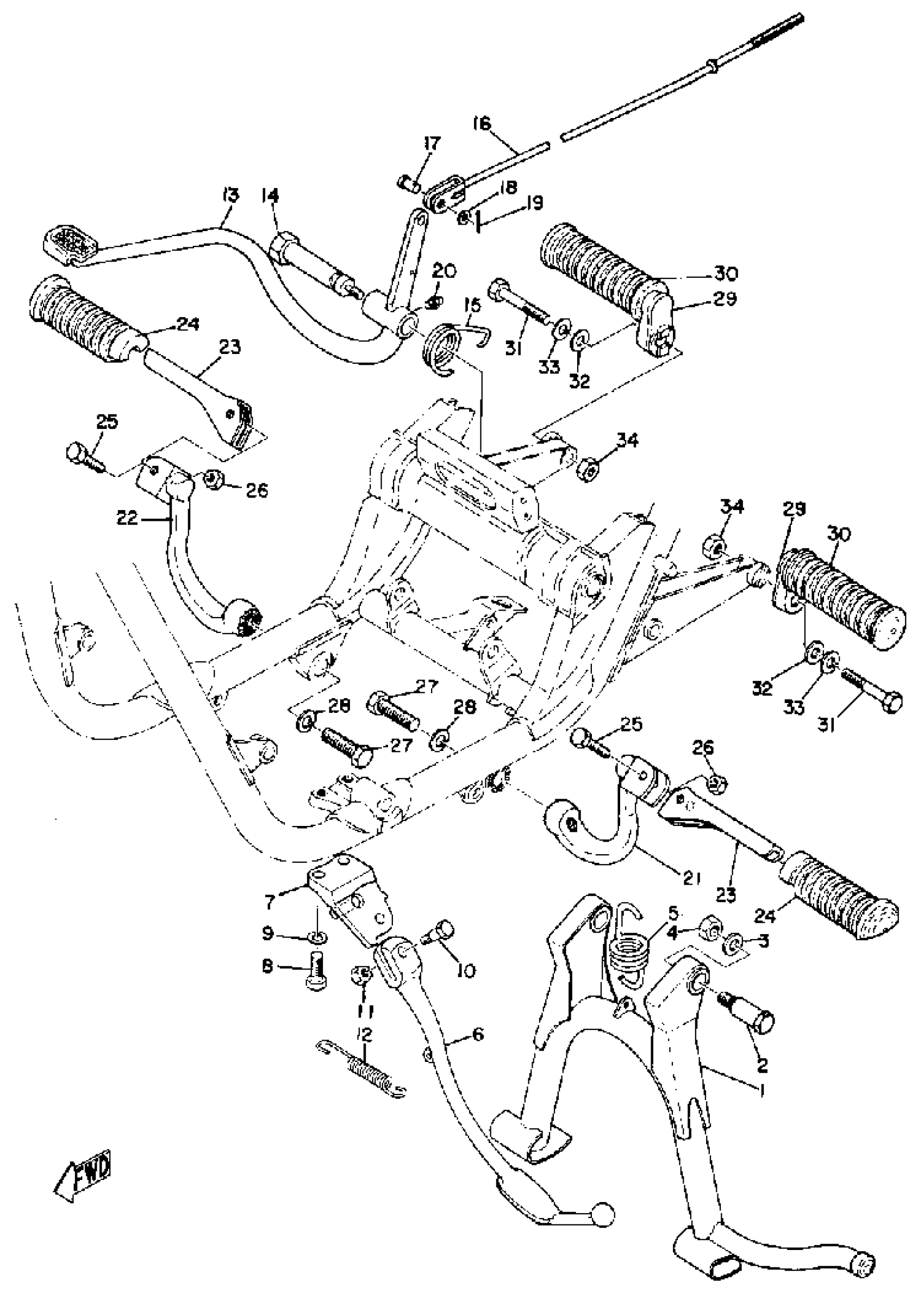

Yamaha R3 (R3) 1969 STAND, FOOT REST AND REAR BRAKE PEDAL Diagram

#

Description
Price

1

STAND, MAIN

(168-27111-00-00)

Unavailable

2

BOLT

(90109-10042-00)

Unavailable

3

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

4

NUT(3BM)

95314-10600-00

$2.39

5

SPRING, TENSION

90506-45063-00

Unavailable

6

STAND, SIDE

(168-27311-00-00)

Unavailable

7

BRACKET, SIDE STAND

(168-27321-00-33)

Unavailable

8

BOLT(6TD)

97017-10025-00

$8.49

9

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

10

BOLT

(90109-08403-00)

Unavailable

11

. NUT

95380-08700-00

Unavailable

12

SPRING TENSION 146273160000

90506-29052-00

$11.49

13

PEDAL, BRAKE

(168-27211-01-00)

Unavailable

14

SHAFT, BRAKE PEDAL

(168-27212-00-00)

Unavailable

15

SPRING, TORSION

(90508-40075-00)

Unavailable

16

ROD, BRAKE

(168-27231-00-00)

Unavailable

17

PIN W/HOLE 307181180000

90240-08013-00

Unavailable

18

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

19

PIN, COTTER

91490-20025-00

Unavailable

20

NIPPLE, GREASE

93700-06M03-00

Unavailable

21

BRACKET, FOOTREST 1

(168-27412-10-00)

Unavailable

22

BRACKET, FOOTREST 2

(168-27422-11-33)

Unavailable

23

FOOTREST 1

(157-27411-00-00)

Unavailable

24

COVER, FOOT REST

156-27413-00-00

Unavailable

25

BOLT (157-27416-00)

90109-08376-00

Unavailable

26

. NUT

95380-08700-00

Unavailable

27

BOLT,HEXAGON

97321-12040-00

Unavailable

28

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

29

FOOTREST, REAR 1

(168-27431-00-00)

Unavailable

30

COVER, RR FOOTREST

(156-27433-00-00)

Unavailable

31

BOLT, HEXAGON

97013-10055-00

Unavailable

32

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

33

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

34

NUT(3BM)

95314-10600-00

$2.39
