1969 Yamaha R3 (R3) Shifter Diagram

← All diagrams

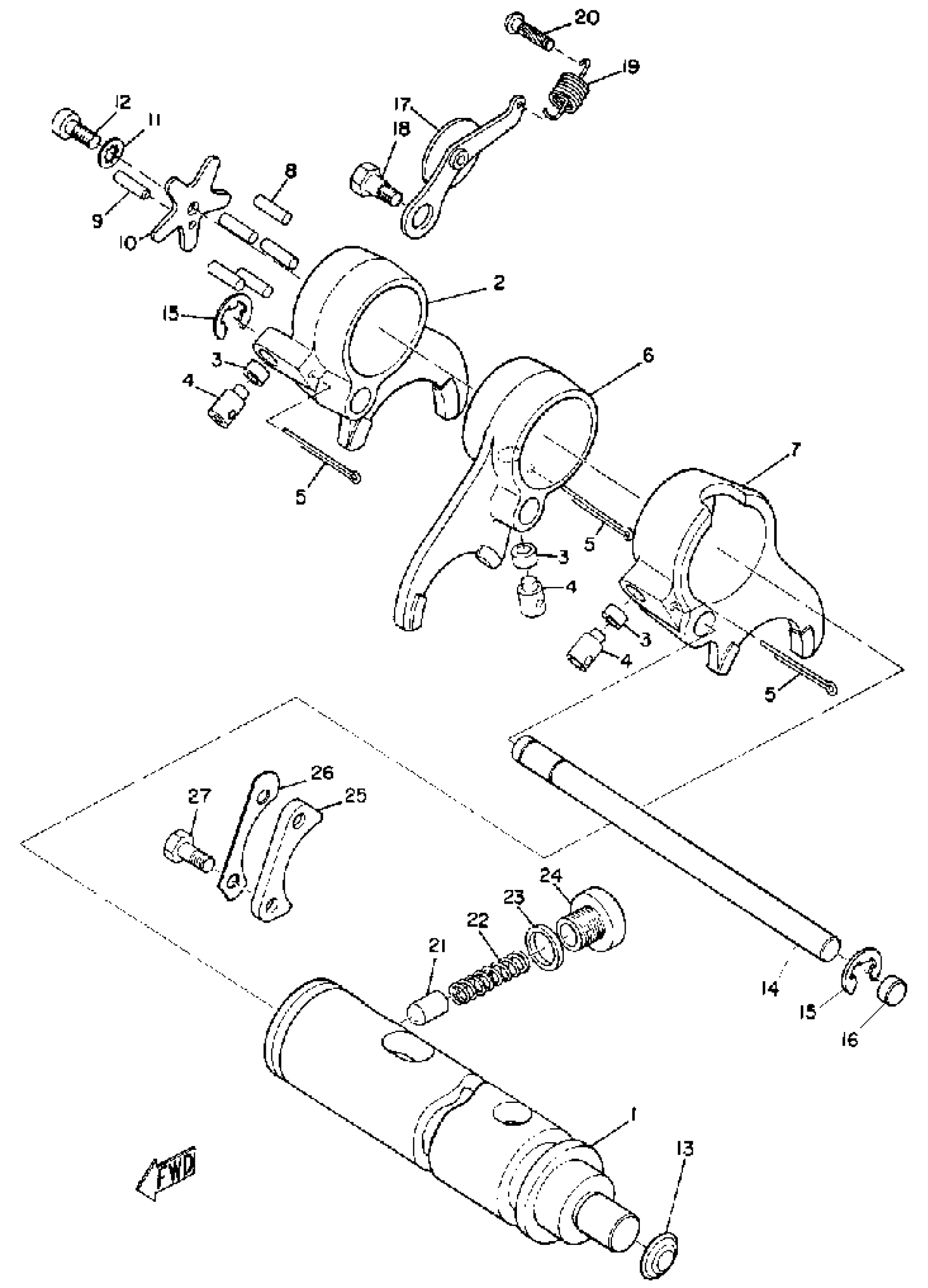

Find the part on the Shifter diagram for your 1969 Yamaha R3 (R3), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha R3 (R3) Shifter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFTER ASSEMBLY

(168-18500-01-00)

1
Out of stock

1

CAM, SHIFT

(168-18541-01-00)

1
Out of stock

2

FORK, SHIFT 1

(168-18511-00-00)

1
Out of stock

3

PIN,SPEC'L SHAPE

90249-05035-00

1
Out of stock

4

PIN, SPEC''L SHAPE

(90249-05041-00)

1
Out of stock

5

PIN, COTTER

(168-18553-00-00)

1
Out of stock

6

FORK, SHIFT 2

(168-18512-00-00)

1
Out of stock

7

FORK, SHIFT 3

(168-18513-00-00)

1
Out of stock

8

PIN,DOWEL (137)

93604-14012-00

1

$1.88

In stock

9

PIN, DOWEL

93603-14026-00

1
Out of stock

10

PLATE, SIDE 1

(168-18561-00-00)

1
Out of stock

11

WASHER, TOOTH

92990-05300-00

—
Out of stock

12

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock

13

PLUG, EXPANSION

(90330-18003-00)

1
Out of stock

14

BAR, SHIF FRK GDE 1

(168-18531-00-00)

1
Out of stock

15

CIRCLIP(2R6)

99001-08600-00

—
Out of stock

16

PLUG, BLIND

90334-10006-00

1
Out of stock

17

STOPPER LEVER ASSEMBLY

(168-18140-00-00)

1
Out of stock

18

BOLT

90109-06239-00

—

$5.77

In stock

19

SPRING, TENSION

(90506-09008-00)

1
Out of stock

20

HANGER, SPRING

(168-18144-00-00)

1
Out of stock

21

STOPPER, CAM

137-18547-00-00

1
Out of stock

22

SPRING, COMPRESSION

(90501-09051-00)

1
Out of stock

23

GASKET (3JD1)

90430-12207-00

—

$6.77

In stock

24

BOLT (59W)

90109-127A3-00

1
Out of stock

25

PLATE, STOPPER 2

(168-18562-00-00)

1
Out of stock

26

PLATE, LOCK SCREW

(168-18565-00-00)

1
Out of stock

27

SCREW, STPPR PLATE

(168-18563-01-00)

1
Out of stock
