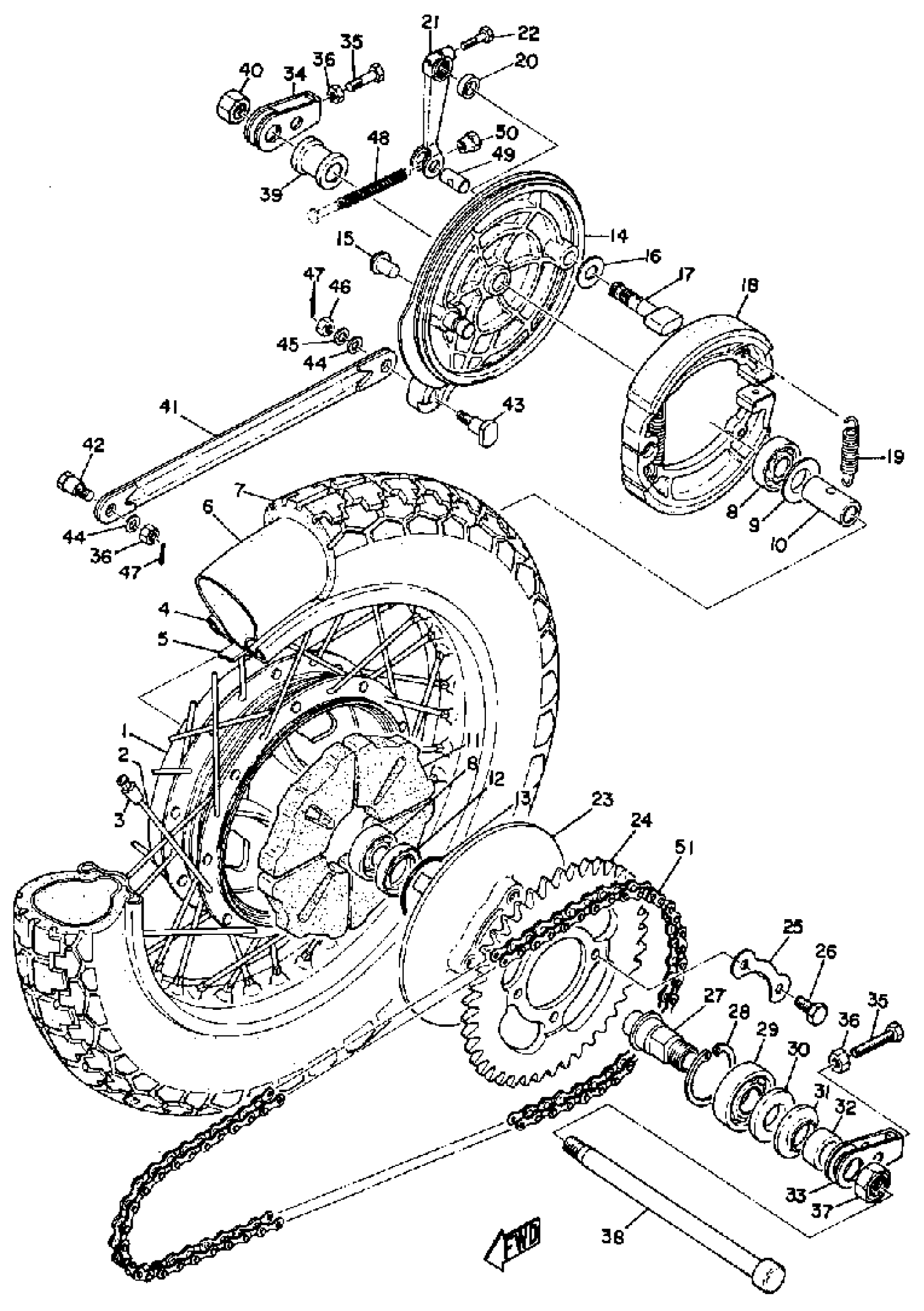

Yamaha R3 (R3) 1969 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

(278-25311-00-00)

Unavailable

2

SPOKE SET, REAR

(152-25304-00-00)

Unavailable

3

BALANCER, WHEEL

3HT-25398-00-00

$7.99

4

RIM 1.85X18

94418-18026-00

Unavailable

5

BAND, RIM (2J4)

94340-18086-00

$17.99

6

TUBE (2RH)

94232-18113-00

$29.99

7

350X18 BS 21R

(94135-18360-00)

Unavailable

8

BEARING(4HM)

93306-30317-00

$39.99

9

FLANGE, SPACER

146-25315-00-00

$7.99

10

SPACER

(90560-17140-00)

Unavailable

11

DAMPER

(168-25364-00-00)

Unavailable

12

OIL SEAL

93102-32037-00

Unavailable

13

O-RING (70E)

93210-54534-00

Unavailable

14

BRAKE SHOE PLT ASSEMBLY

(360-25026-10-38)

Unavailable

15

PLUG, SPEC''L SHAPE

(90338-11048-00)

Unavailable

16

SHIM, CAM SHAFT

148-25353-00-00

Unavailable

17

CAMSHAFT

(168-25351-00-00)

Unavailable

18

BRAKE SHOE KIT

5R3-W253E-00-00

Unavailable

19

SPRING, TENSION 2462533300

90507-20002-00

Unavailable

20

SEAL, CAM SHAFT

148-25359-00-00

Unavailable

21

. LEVER, CAMSHAFT (168-25355-00)

4V5-25355-00-00

Unavailable

22

BOLT, HEXAGON

97017-06025-00

Unavailable

23

CLUTCH, HUB

(168-25366-00-00)

Unavailable

24

SPROCKET, DRIVN 43T

(168-25443-10-00)

Unavailable

24

SPROCKET, DRIVN 39T

(360-25439-90-00)

Unavailable

24

SPROCKET, DRIVN 41T

(360-25441-90-00)

Unavailable

25

WASHER

148-25412-00-00

Unavailable

26

BOLT (583)

90101-10303-00

Unavailable

27

AXLE, SPROCKET

152-25387-00-00

Unavailable

28

CIRCLIP(26H)

99009-52500-00

Unavailable

29

BEARING

93306-20503-00

Unavailable

30

OIL SEAL

93104-25008-00

Unavailable

31

COVER, HUB DUST

(168-25367-00-00)

Unavailable

32

COLLAR

90387-23441-00

Unavailable

33

PULLER, CHAIN 2

(1A1-25389-00-00)

Unavailable

34

PULLER,CHAIN 2

12R-25389-00-00

Unavailable

35

BOLT

90101-08060-00

Unavailable

36

NUT(6L2)

95333-08600-00

Unavailable

37

NUT, HEXAGON

90170-22097-00

Unavailable

38

AXLE,WHEEL

150-25381-01-00

Unavailable

39

COLLAR, WHEEL

148-25383-00-00

Unavailable

40

NUT,HEXAGON

90170-16083-00

Unavailable

41

BAR, TENSION

(168-25371-00-00)

Unavailable

42

BOLT

90109-08375-00

Unavailable

43

BOLT

90109-08369-00

Unavailable

44

WASHER, PLAIN

92990-08200-00

Unavailable

45

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

46

NUT(6L2)

95333-08600-00

Unavailable

47

PIN, COTTER

91490-20025-00

Unavailable

48

SPRING, COMPRESSION (168-27236-00)

90501-10073-00

Unavailable

49

PIN, SPEC''L SHAPE (168-27237-00)

90249-12007-00

Unavailable

50

NUT, SPEC''L SHAPE (168-27238-00)

90179-07031-00

Unavailable

51

UNAVAILABLE IN PRICE BOOK

51A---

Unavailable

51

530HDS 98L

(94575-30098-00)

Unavailable
