OIL PUMP

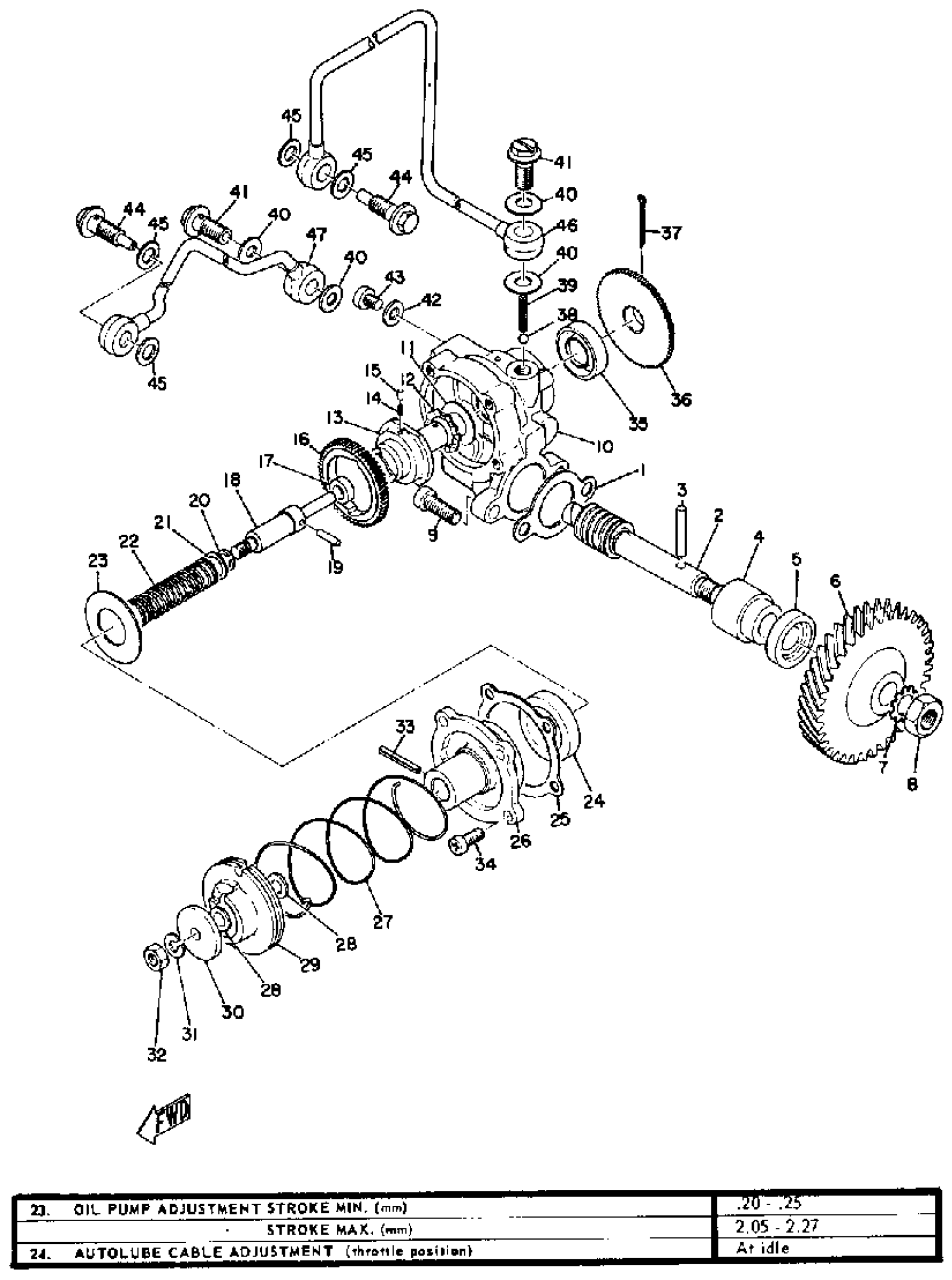

Yamaha R3 (R3) 1969 OIL PUMP Diagram
#
1
OIL PUMP ASSEMBLY
(168-13101-03-00)
Unavailable
2
SHAFT, WORM
(168-13175-00-00)
Unavailable
4
METAL, WORM SHAFT OUTER
137-13176-00-00
Unavailable
6
GEAR, PUMP DRIVE
(168-13178-00-00)
Unavailable
7
WASHER (688)
92990-08400-00
Unavailable
8
. NUT
95380-08700-00
Unavailable
9
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
10
TOOL
UNA-VAILA-BL-EI
Unavailable
11
PLATE, CAM THRUST
137-13148-00-00
Unavailable
12
WASHER, WAVE (137)
90206-11016-00
Unavailable
13
TOOL
UNA-VAILA-BL-EI
Unavailable
14
SPRING, PLNGR RTRN
(137-13135-00-00)
Unavailable
15
PIN, DOWEL
(93602-04029-00)
Unavailable
16
GEAR, WORM WHEEL
(168-13124-00-00)
Unavailable
17
OIL SEAL
93104-04114-00
Unavailable
18
TOOL
UNA-VAILA-BL-EI
Unavailable
19
PIN,DOWEL (137)
93603-12030-00
Unavailable
20
. CIRCLIP, PLUNGER
93440-08001-00
Unavailable
21
SEAT, SPRING
(137-13134-00-00)
Unavailable
22
SPRING, PLNGR RTRN
(137-13135-00-00)
Unavailable
23
PLATE, WORM WHEEL
(137-13127-00-00)
Unavailable
24
OIL SEAL (14X25X5-2H7)
93104-14059-00
Unavailable
25
. GASKET, PUMP CASE COVER
137-13142-00-00
Unavailable
26
TOOL
UNA-VAILA-BL-EI
Unavailable
27
. SPRING, TORSION (156-13145-00)
90508-10013-00
Unavailable
28
SHIM,PLUNGER
137-13137-00-10
Unavailable
29
PULLEY, ADJUSTING
(364-13144-01-00)
Unavailable
30
PLATE, ADJUSTING
137-13138-01-00
Unavailable
31
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
32
NUT, HEXAGON (663)
95380-05600-00
Unavailable
33
. PIN
91608-20010-00
Unavailable
34
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
35
OIL SEAL (J10)
93101-10090-00
Unavailable
36
PLATE, STARTER
(137-13128-00-00)
Unavailable
37
. PIN, COTTER
91401-12018-00
Unavailable
38
BALL
93505-32002-00
Unavailable
39
SPRING, COMPRESSION
(90501-02017-00)
Unavailable
40
GASKET(3FP)
90430-06224-00
Unavailable
41
BOLT UNION 137131650000
90401-06001-00
Unavailable
42
GASKET 137131870000
90430-04004-00
Unavailable
43
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
44
BOLT, UNION
90401-06011-00
Unavailable
45
GASKET(3FP)
90430-06224-00
Unavailable
46
PIPE, DELIVERY 1
(168-13161-00-00)
Unavailable
47
PIPE, DELIVERY 2
(168-13171-00-00)
Unavailable
