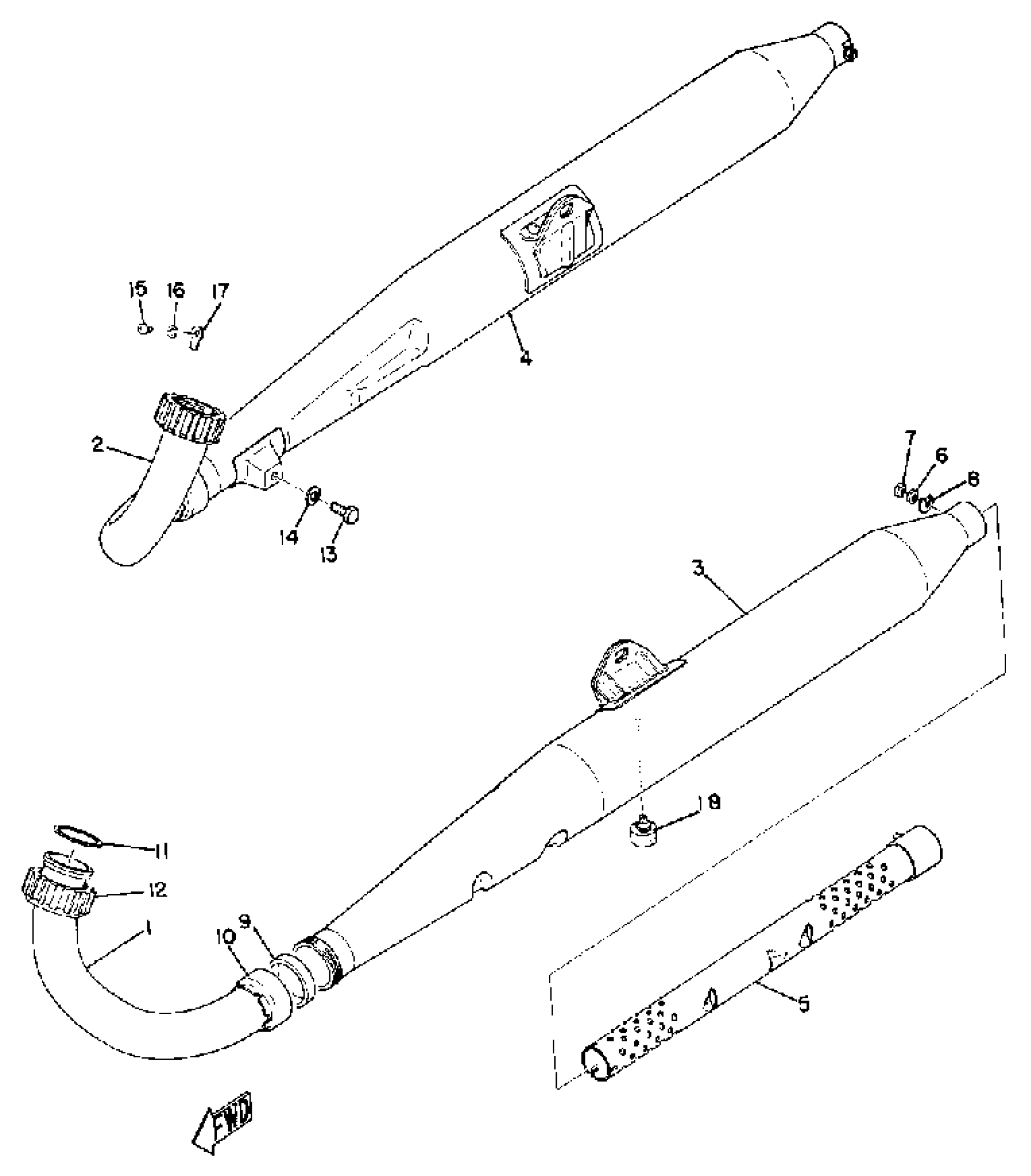

Find the part on the Muffler diagram for your 1969 Yamaha R3 (R3), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha R3 (R3) Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE, EXHAUST L

(168-14611-00-00)

1
Out of stock

2

PIPE, EXHAUST R

(168-14621-00-00)

1
Out of stock

3

MUFFLER ASSEMBLY L

(235-14710-00-00)

1
Out of stock

4

MUFFLER ASSEMBLY R

(235-14720-00-00)

1
Out of stock

5

SILENCER, EXHAUST

(168-14753-01-00)

1
Out of stock

6

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

7

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

8

WASHER

(235-14759-00-00)

1
Out of stock

9

GASKET (168-14714-00)

90430-42088-00

1
Out of stock

10

NUT, MUFFLER JOINT

(168-14713-00-00)

1
Out of stock

11

GASKET, EXST PIPE

168-14613-00-00

1
Out of stock

12

NUT, RING

(168-14612-00-00)

1
Out of stock

13

BOLT, HEXAGON

97013-08020-00

1

$1.54

In stock

14

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

15

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

PLATE

(168-14685-00-00)

1
Out of stock

18

STOPPER MAIN STAND

278-27114-00-00

—

$8.45

In stock
