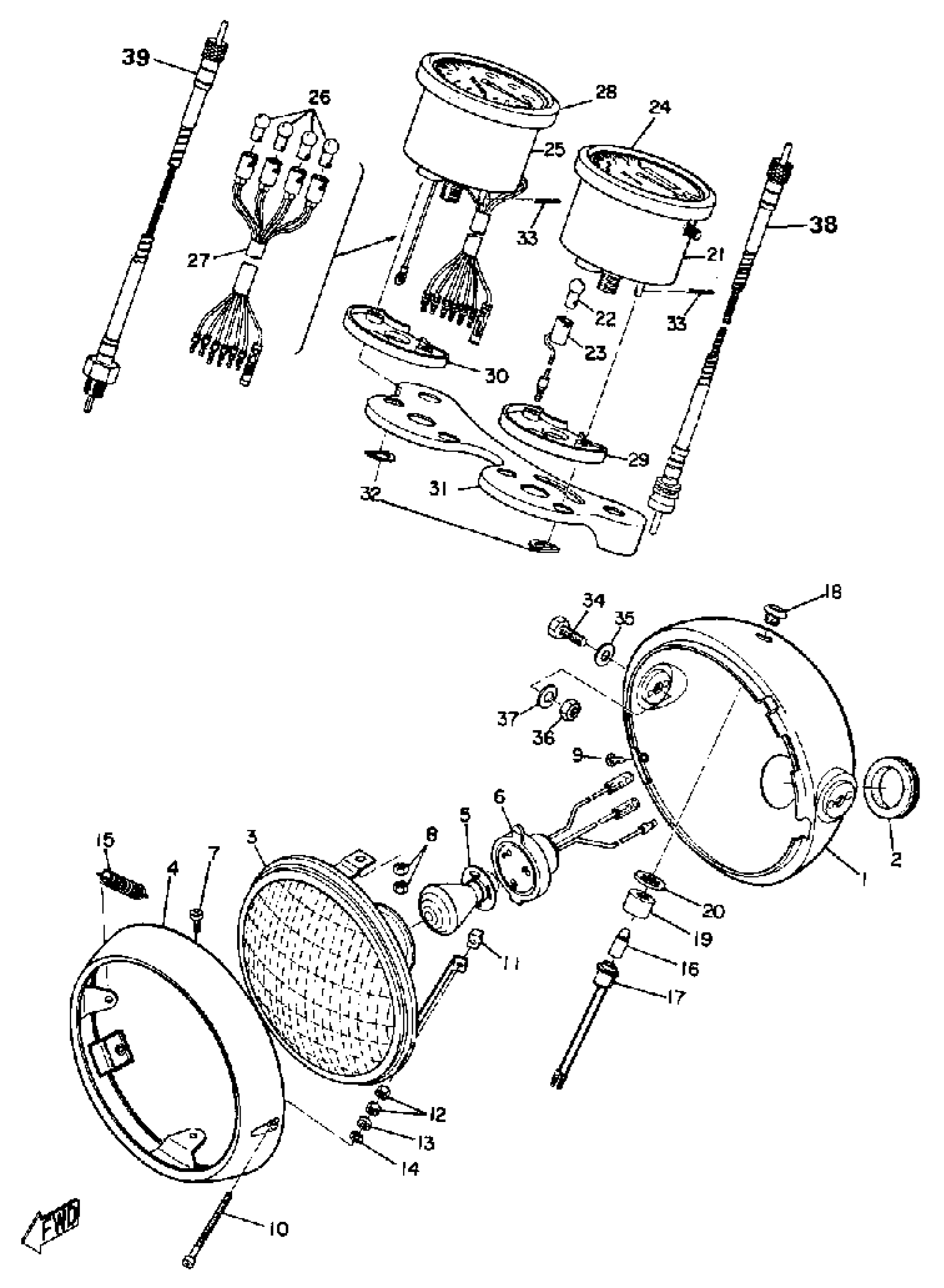

Yamaha R3 (R3) 1969 HEADLAMP, SPEEDOMETER AND TACHOMETER Diagram

#

Description
Price

1

BODY ASSEMBLY

(235-84330-60-65)

Unavailable

1

BODY ASSEMBLY

(235-84330-60-65)

Unavailable

2

GROMMET, WIREHARNESS

214-84153-60-00

$7.99

3

LENS ASSEMBLY

(235-84320-60-00)

Unavailable

4

RIM, HEADLIGHT

235-84315-60-00

Unavailable

5

BULB, H.L.12V35/25W

235-84314-00-00

Unavailable

6

SOCKET

(235-84312-60-00)

Unavailable

7

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

8

NUT, HEXAGON (663)

95380-05600-00

$8.49

9

SCREW, OVAL HEAD (1A0)

90152-05005-00

$4.29

10

SCREW 214841316100

90157-04001-00

$8.49

11

NUT, ADJUST

198-84334-60-00

$7.99

12

NUT(6L4)

95380-04700-00

Unavailable

13

SPACER

168-84328-60-00

Unavailable

14

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

15

SPRING

(168-84335-60-00)

Unavailable

16

BULB

256-84347-00-00

Unavailable

17

PILOT LIGHT ASSEMBLY 1

256-84301-61-00

Unavailable

18

PILOT LIGHT ASSEMBLY

214-84101-61-00

Unavailable

19

PILOT LIGHT ASSEMBLY

214-84101-61-00

Unavailable

20

WASHER, IN.TOOTH

(92901-12300-00)

Unavailable

21

SPEEDOMETER ASSEMBLY

(235-83510-40-00)

Unavailable

22

BULB (12V-3.4W)

123-83516-21-00

Unavailable

23

SOCKET, METER

(235-83536-21-00)

Unavailable

24

. DAMPER

336-83513-00-00

Unavailable

25

TACHOMETER ASSEMBLY

(235-83540-00-00)

Unavailable

26

BULB (12V-3.4W)

123-83516-21-00

Unavailable

27

SOCKET CORD ASSEMBLY

(235-83520-00-00)

Unavailable

28

. DAMPER

336-83513-00-00

Unavailable

29

DAMPER

214-83523-00-00

Unavailable

30

DAMPER

237-83523-00-00

Unavailable

31

BRACKET, METER

(235-83519-00-33)

Unavailable

32

WASHER 214835240000

90209-05029-00

Unavailable

33

CLIP (156-83525-00)

90468-10050-00

Unavailable

34

BOLT (682)

97013-08025-00

Unavailable

35

WASHER, PLAIN

92990-08200-00

Unavailable

36

NUT(6L2)

95333-08600-00

Unavailable

37

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

38

SPEEDOMETER CABLE (256-83550-00)

237-83550-01-00

Unavailable

39

TACHOMETER CABLE

235-83560-01-00

Unavailable
