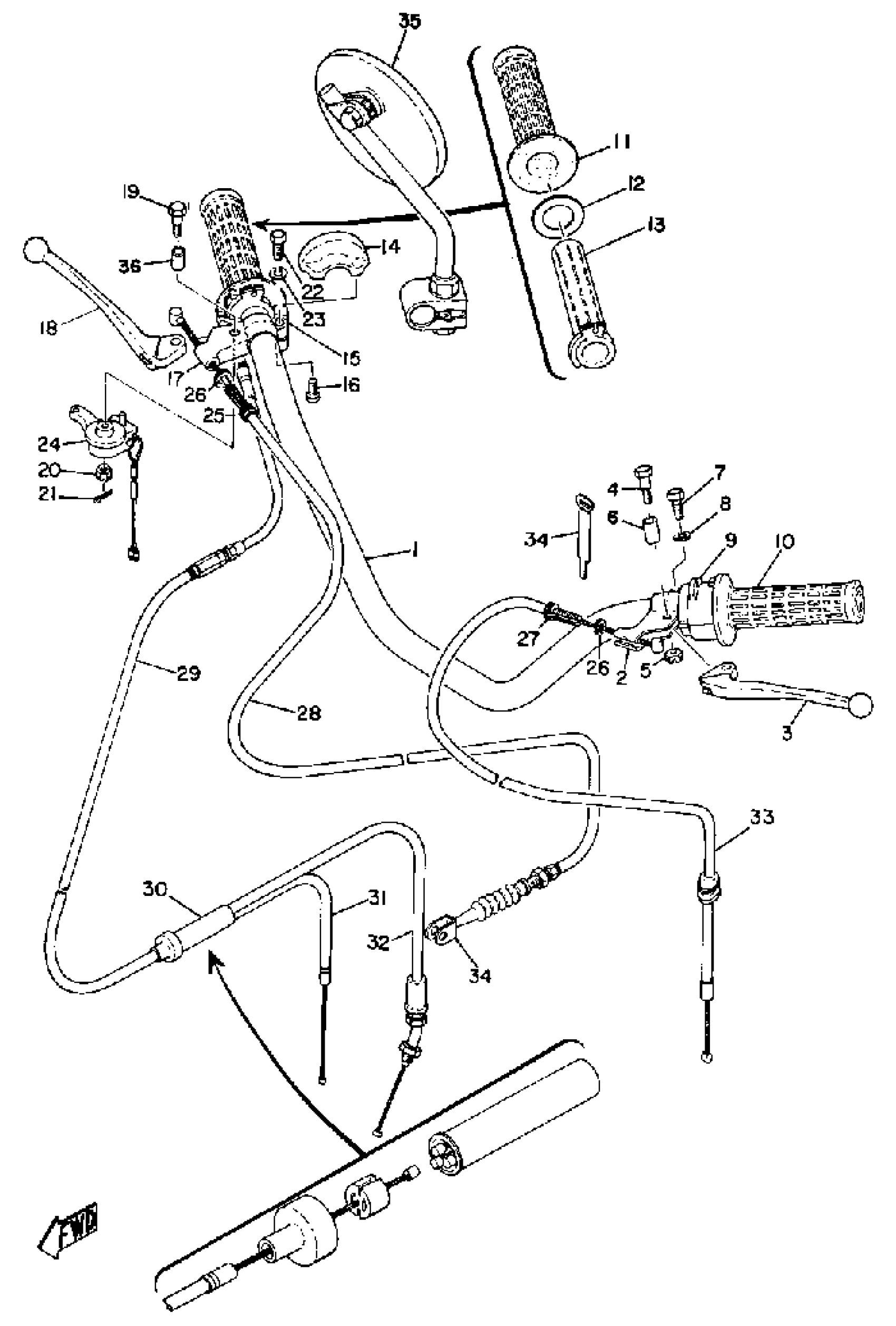

Yamaha R3 (R3) 1969 HANDLE AND WIRE Diagram

HANDLEBAR

(156-26111-10-00)

Unavailable

LEVER HOLDER ASSY 1

214-82910-07-00

Unavailable

HANDLEBAR

(235-26111-00-00)

Unavailable

HOLDER, LEVER (L.H)

214-82911-01-00

$56.99

LEVER HOLDER ASSY 2

233-82920-32-00

Unavailable

LEVER(L.H)

214-83912-00-00

$23.99

. SCREW, LVR FITTING

214-83915-00-00

Unavailable

. NUT, SLOTTED

95301-06900-00

Unavailable

COLLAR, LEVER

214-83913-00-00

$7.99

BOLT(3DM)

97024-06020-00

$8.49

WASHER, SPRING

92995-06100-00

Unavailable

SWITCH, HANDLE 4

235-83972-00-94

Unavailable

GRIP LH

341-26241-00-00

Unavailable

GRIP RH

(306-26242-10-00)

Unavailable

RING, LEAF

150-26249-00-00

Unavailable

TUBE, GUIDE

214-26243-00-00

Unavailable

CAP, GRIP UPPER

(235-26281-00-00)

Unavailable

CAP, GRIP LOWER

235-26282-01-00

Unavailable

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

HOLDER, LEVER (R.H)

233-82921-31-00

Unavailable

LEVER(R.H)

233-83922-30-00

Unavailable

. BOLT

90109-05197-00

Unavailable

NUT, SLTED

95307-05900-00

Unavailable

. PIN, COTTER

91401-12018-00

Unavailable

BOLT(3DM)

97024-06020-00

$8.49

WASHER, SPRING

92995-06100-00

Unavailable

FRONT STOP SWITCH ASSY

232-83980-30-00

Unavailable

BOLT

90123-08002-00

Unavailable

NUT

90179-08030-00

Unavailable

BOLT

90123-08002-00

Unavailable

CABLE, BRAKE

235-26341-30-00

Unavailable

CABLE, BRAKE

(246-26341-10-00)

Unavailable

CABLE, THROTTLE 1

(235-26311-12-00)

Unavailable

CABLE, THROTTLE 1

(235-26311-31-00)

Unavailable

CYLINDER, WIRE

156-26261-01-00

Unavailable

CABLE, THROTTLE 2

(235-26312-00-00)

Unavailable

CABLE, PUMP

(235-26321-00-00)

Unavailable

CABLE, CLUTCH

(235-26335-10-00)

Unavailable

CABLE, CLUTCH

235-26335-30-00

Unavailable

JOINT, WIRE

156-26347-00-00

Unavailable

MIRROR ASY

253-26290-00-00

Unavailable

COLLAR, LEVER

214-83913-00-00

$7.99
