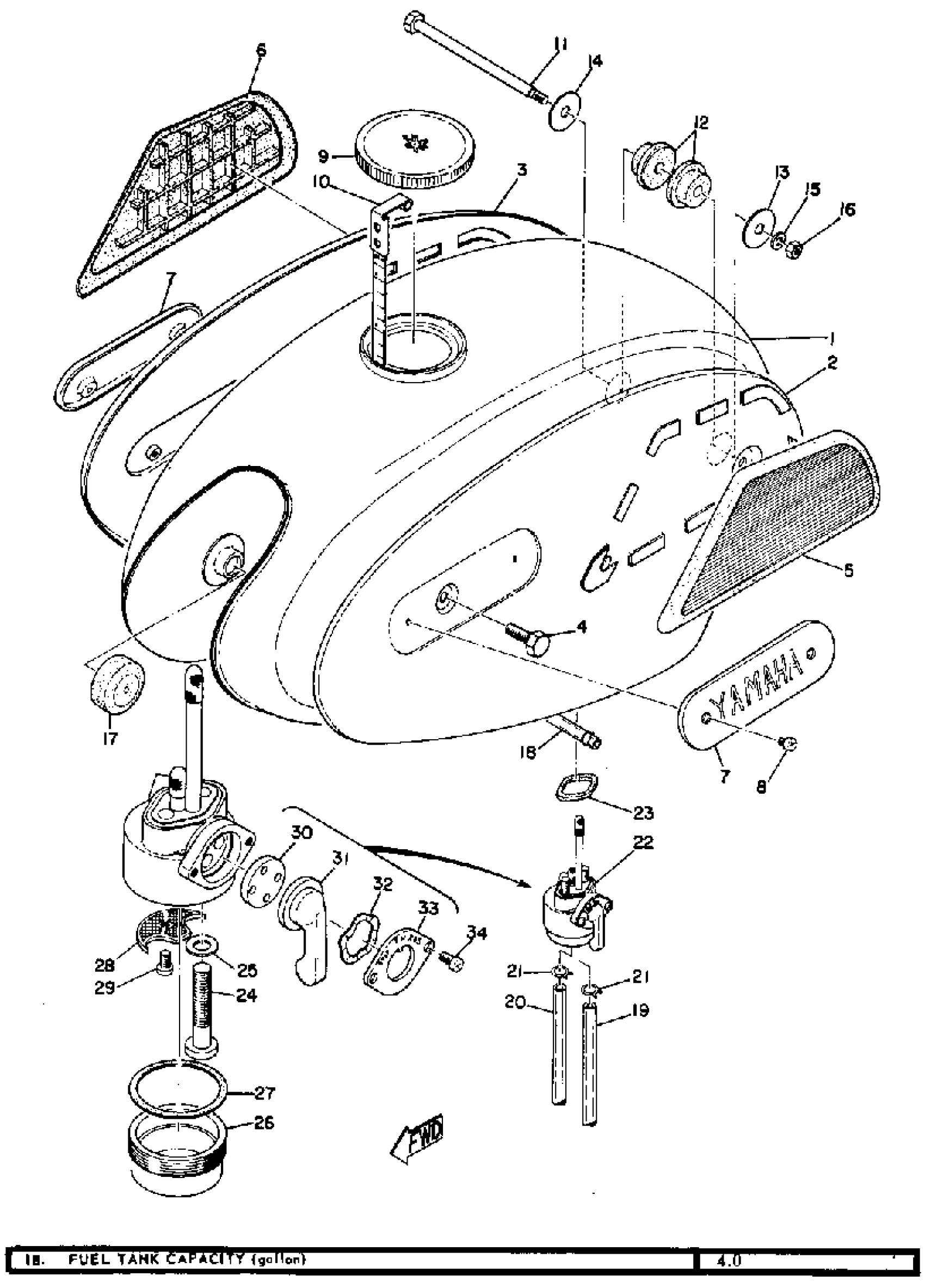

Yamaha R3 (R3) 1969 FUEL TANK Diagram

#

Description

Price

1

FUEL TANK

(211-24110-00-64)

Unavailable

1

UNAVAILABLE IN PRICE BOOK

212-24110-00-64

Unavailable

2

COVER, SIDE 1

(211-24129-01-01)

Unavailable

2

COVER, SIDE 1

(211-24129-01-02)

Unavailable

3

COVER, SIDE 2

(211-24139-01-01)

Unavailable

3

COVER, SIDE 2

(211-24139-01-02)

Unavailable

4

BOLT,HEXAGON

97017-06008-00

$3.55

5

GRIP, KNEE 1

(211-24171-00-00)

Unavailable

6

GRIP, KNEE 2

(211-24172-00-00)

Unavailable

7

EMBLEM 1

211-24161-00-00

Unavailable

8

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

9

CAP ASSY

7V5-24610-01-00

$48.99

10

GAUGE, FUEL

(168-24179-60-00)

Unavailable

11

BOLT

(90109-06026-00)

Unavailable

12

DAMPER, LOCATING 2

(156-24182-01-00)

Unavailable

13

WASHER, PLATE (5J0)

90201-085E6-00

Unavailable

14

WASHER, PLATE

90201-06086-00

Unavailable

15

WASHER, SPRING

92995-06100-00

Unavailable

16

NUT, HEXAGON

95380-06600-00

Unavailable

17

DAMPER, LOCATING 1

3TB-24181-00-00

Unavailable

18

HOSE (L420)

90445-092K1-00

Unavailable

19

HOSE (L420)

90445-092K1-00

Unavailable

20

HOSE (L420)

90445-092K1-00

Unavailable

21

CLIP 101235600

90467-08003-00

Unavailable

22

FUEL COCK ASSEMBLY 1

360-24500-00-00

Unavailable

23

GASKET, BODY

168-24512-00-00

Unavailable

24

SCREW, PAN HEAD(6H4)

97885-06035-00

Unavailable

25

GASKET(J17)

90430-06218-00

Unavailable

26

. CUP, FILTER

360-24521-00-00

Unavailable

27

. GASKET

168-24522-00-00

Unavailable

28

. NET, FILTER 2

168-24515-00-00

Unavailable

29

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

30

VALVE

137-24523-00-00

Unavailable

31

. LEVER, COCK

168-24524-00-00

Unavailable

32

WASHER, WAVE

132-24518-00-00

Unavailable

33

PLATE, LEVER FITTING

(132-24525-01-00)

Unavailable

34

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable
