FRONT FORK AND FRONT FENDER

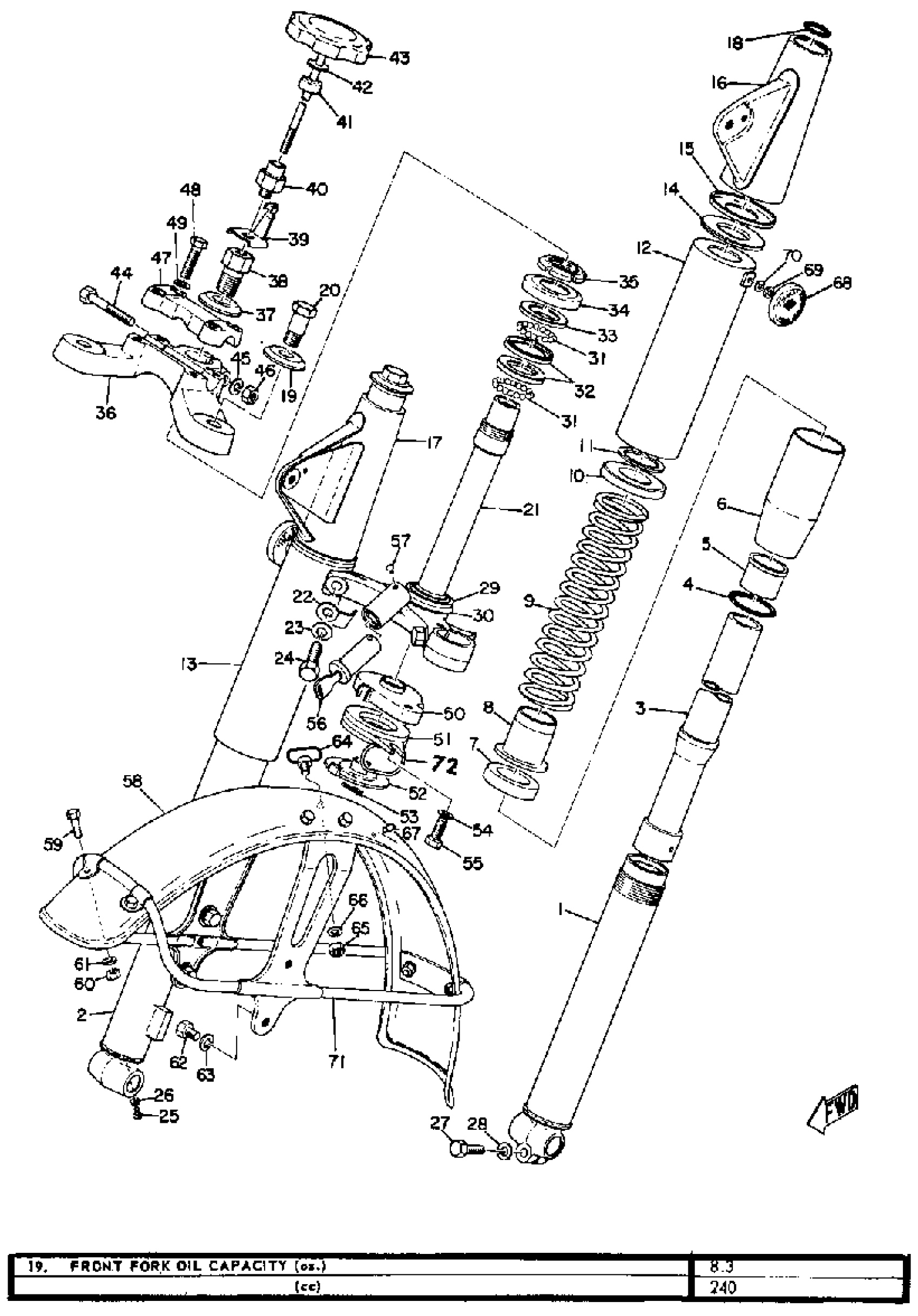

Yamaha R3 (R3) 1969 FRONT FORK AND FRONT FENDER Diagram
#
1
TUBE, OUTER 1
(168-23126-01-00)
Unavailable
1
FRONT FORK ASSEMBLY
(235-23100-60-64)
Unavailable
1
FRONT FORK ASSEMBLY
(235-23100-60-65)
Unavailable
2
TUBE, OUTER 2
(168-23136-01-00)
Unavailable
3
TUBE, INNER 1
(168-23124-01-00)
Unavailable
4
. O-RING
156-23147-00-00
Unavailable
5
STEERING LOCK ASSEMBLY
(156-23480-00-00)
Unavailable
5
METAL, SLIDE 1
(168-23125-01-00)
Unavailable
6
OUTER NUT
(211-23150-00-00)
Unavailable
8
SEAT, SPRING LOWER
(168-23143-00-00)
Unavailable
9
SPRING, FRONT FORK
(211-23141-00-00)
Unavailable
10
SEAT, SPRING UPPER
(168-23142-01-00)
Unavailable
11
WASHER, OIL SEAL
(168-23146-00-00)
Unavailable
12
COVER, LOWER 1
(235-23123-60-64)
Unavailable
12
COVER, LOWER 1
(235-23123-60-65)
Unavailable
13
COVER, LOWER 2
(235-23133-60-64)
Unavailable
13
COVER, LOWER 2
(235-23133-60-65)
Unavailable
14
GASKET
(168-23163-01-00)
Unavailable
15
GUIDE, COVER LOWER
(168-23116-01-00)
Unavailable
16
COVER, UPPER 1
(211-23121-00-64)
Unavailable
16
COVER, UPPER 1
(211-23121-00-65)
Unavailable
17
COVER, UPPER 2
(211-23131-00-64)
Unavailable
17
COVER, UPPER 2
(211-23131-00-65)
Unavailable
18
GASKET
(168-23114-01-00)
Unavailable
19
WASHER, CAP
(156-23112-00-00)
Unavailable
20
BOLT, CAP
(156-23111-01-00)
Unavailable
21
UNDER BRACKET
(168-23340-00-33)
Unavailable
22
HOLDER, CABLE 1
(183-23318-00-00)
Unavailable
23
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
24
BOLT 1
122-23346-02-00
Unavailable
25
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
26
GASKET, DRAIN PLUG
122-23129-00-00
Unavailable
27
BOLT, HEXAGON
97013-08030-00
Unavailable
28
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
29
RACE, BALL 1
B6E-23411-00-00
Unavailable
30
SEAL, DUST
164-23462-00-00
Unavailable
31
BALL
93501-04011-00
Unavailable
32
RACE, BALL 2
B6E-23412-00-00
Unavailable
33
RACE, BALL 1
B6E-23411-00-00
Unavailable
34
COVER, BALL RACE 1
156-23415-00-00
Unavailable
35
NUT, FITTING 2
(156-23454-00-00)
Unavailable
36
CROWN, HANDLE
(168-23435-00-00)
Unavailable
37
WASHER, PLATE
(90201-16249-00)
Unavailable
38
BOLT, FITTING 1
(168-23451-00-00)
Unavailable
39
SPRING
(156-23428-00-00)
Unavailable
40
GUIDE, DAMPER
(156-23424-00-00)
Unavailable
41
WASHER, PLATE 1412342700
90202-06008-00
Unavailable
42
WASHER, PLATE
90201-06061-00
Unavailable
43
SHAFT, DAMPER
(168-23419-00-00)
Unavailable
44
BOLT, HEXAGON
97013-08055-00
Unavailable
45
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
46
NUT(6L2)
95333-08600-00
Unavailable
47
HOLDER, HANDLE UPR
(168-23441-00-00)
Unavailable
48
BOLT
97013-08035-00
Unavailable
49
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
50
PLATE, DAMPER 3
(168-23423-00-00)
Unavailable
51
PLATE, DAMPER 2
(169-23422-01-00)
Unavailable
52
PLATE, DAMPER 1
(169-23421-00-33)
Unavailable
53
CLIP (156-83525-00)
90468-10050-00
Unavailable
54
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
55
BOLT, HEXAGON
97013-08020-00
Unavailable
57
RIVET
(122-23483-00-00)
Unavailable
58
FENDER, FRONT
(235-21510-00-00)
Unavailable
59
BOLT(3JP)
97017-06010-00
Unavailable
60
NUT, HEXAGON
95380-06600-00
Unavailable
61
WASHER, SPRING
92995-06100-00
Unavailable
62
BOLT(62E)
97013-08012-00
Unavailable
63
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
64
HOLDER, CABLE
(152-21518-00-00)
Unavailable
65
NUT, HEXAGON
95380-06600-00
Unavailable
66
WASHER, SPRING
92995-06100-00
Unavailable
67
DAMPER 2
5A8-21639-00-00
Unavailable
68
REFLECTOR, FRONT 1
(233-85111-00-00)
Unavailable
69
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
70
. WASHER, PLAIN
92990-05200-00
Unavailable
71
STAY, FENDER 1
(235-21513-00-00)
Unavailable
72
CLAMP, CABLE
(169-21337-00-00)
Unavailable
