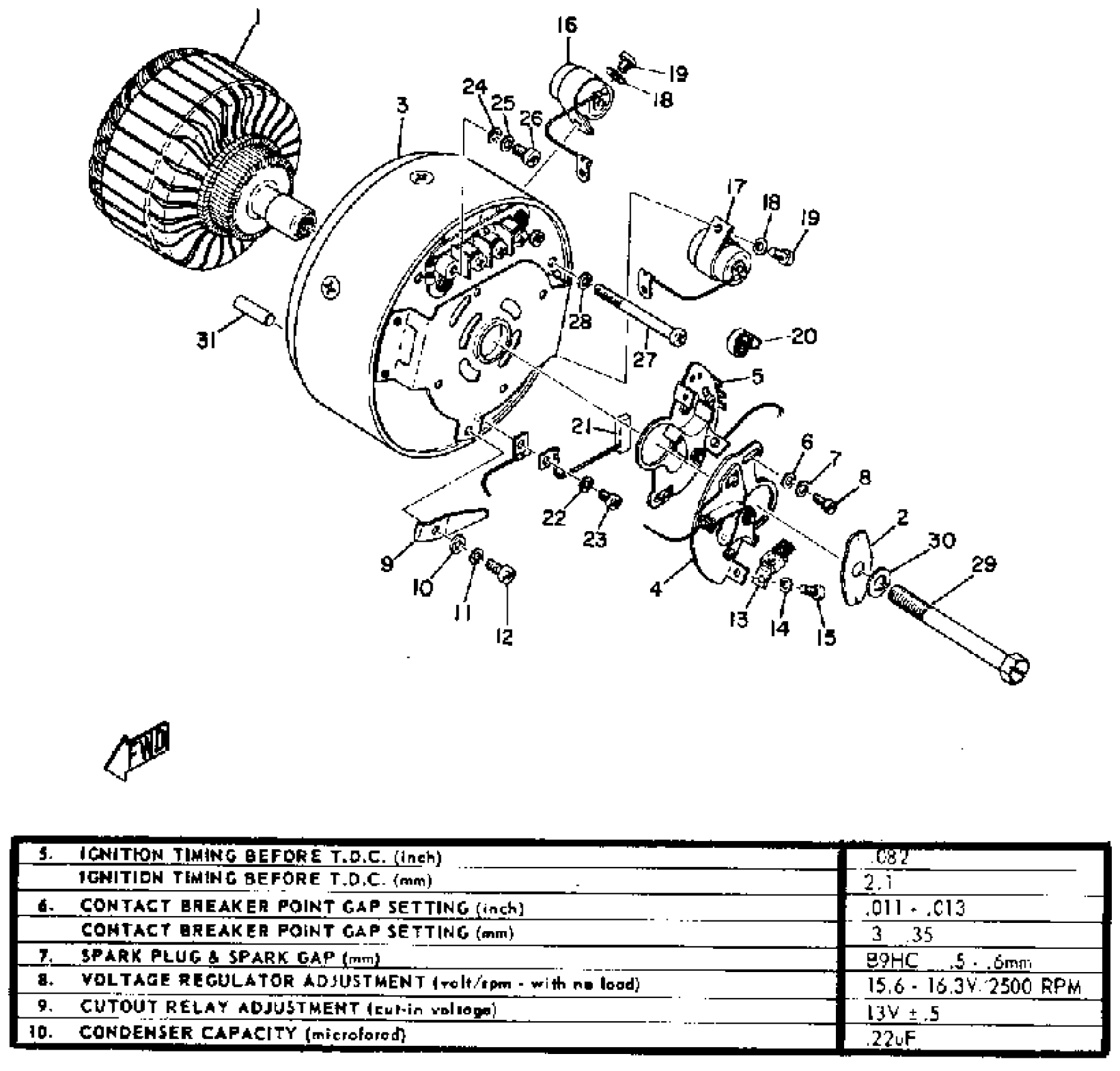

Yamaha R3 (R3) 1969 D - C - GENERATOR Diagram

#

Description
Price

1

DC GENERATOR ASSEMBLY

(168-81200-22-00)

Unavailable

1

ARMATURE

(168-81255-22-00)

Unavailable

2

PLATE, CAM

(168-81254-21-00)

Unavailable

3

STATOR ASSEMBLY

(168-81210-21-00)

Unavailable

4

.. CONTACT BRKR ASSEMBLY

168-81221-21-00

Unavailable

5

.. CONTACT BRKR ASSEMBLY

168-81222-21-00

Unavailable

6

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

7

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

8

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

9

PLATE, TIMING

(168-81232-20-00)

Unavailable

10

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

11

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

12

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

13

LUBRICATOR

(168-81231-20-00)

Unavailable

14

WASHER, SPRING

92990-03100-00

$8.49

15

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

16

.. CONDENSER 2

168-81226-20-00

Unavailable

17

.. CONDENSER 1

168-81225-20-00

Unavailable

18

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

19

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

20

SPRING, BRUSH

(131-81213-20-00)

Unavailable

21

.. BRUSH

131-81211-20-00

Unavailable

22

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

23

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

24

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

25

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

26

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

27

SCREW,PANHEAD (EG9)

98580-05570-00

Unavailable

28

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

29

BOLT

(168-81252-21-00)

Unavailable

30

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

31

PIN, DOWEL

93603-14026-00

Unavailable
