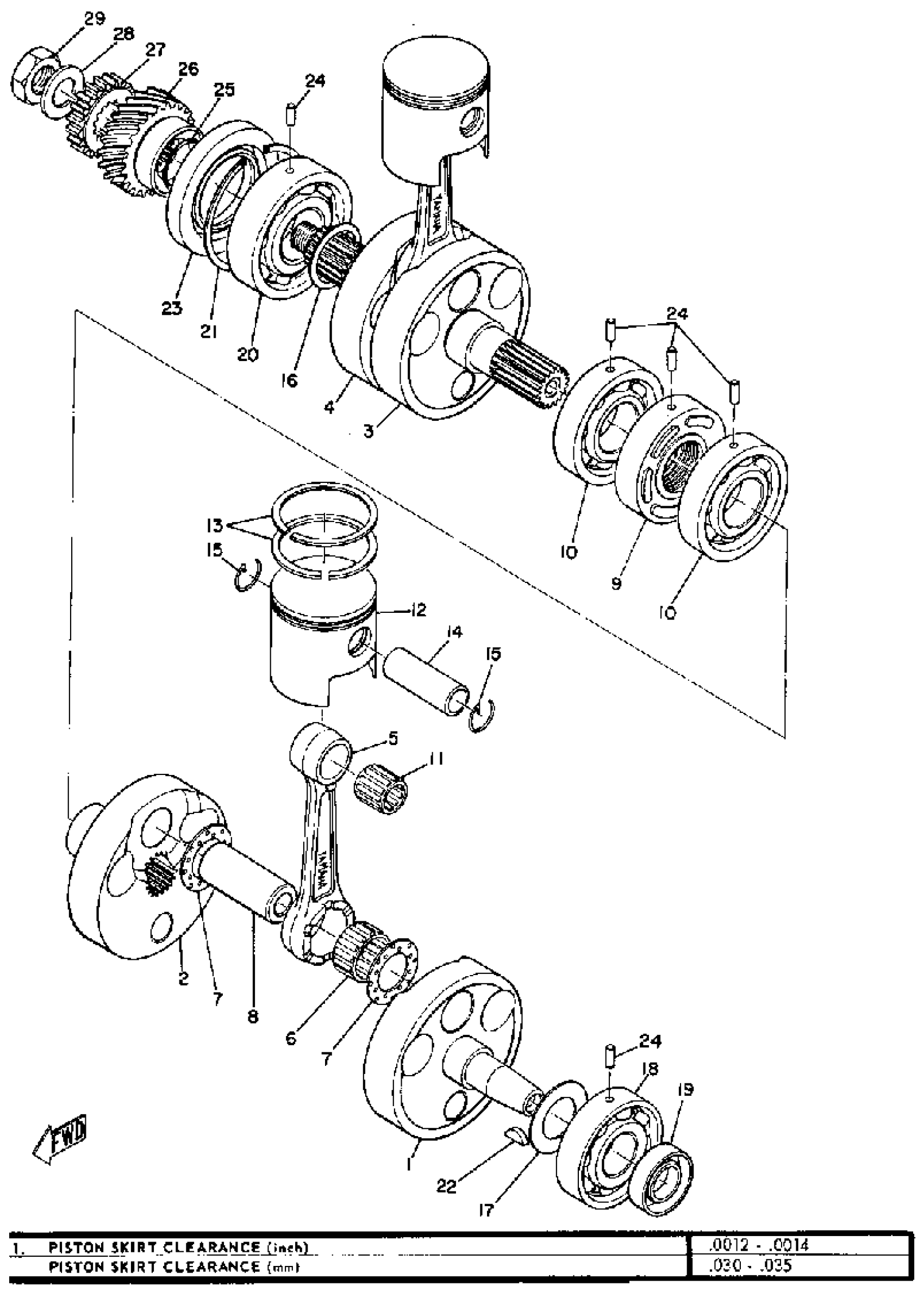

Yamaha R3 (R3) 1969 CRANKSHAFT AND PISTON Diagram

#

Description
Price

1

CRANK 1

(168-11412-01-00)

Unavailable

1

CRANKSHAFT ASSEMBLY

(235-11400-00-00)

Unavailable

2

CRANK 2

(168-11422-00-00)

Unavailable

3

CRANK 3

(168-11432-00-00)

Unavailable

4

CRANK 4

(168-11442-01-00)

Unavailable

5

. ROD, CONNECTING (838-11651-00)

8A7-11651-00-00

Unavailable

6

BEARING

93310-424E8-00

Unavailable

7

WASHER (152-11685-00)

90209-24073-00

$14.99

8

. PIN, CRANK 1

168-11681-00-00

Unavailable

9

SEAL, LABYRINTH 1

(168-11515-00-00)

Unavailable

10

BEARING(8V0)

93306-20633-00

$76.99

11

BRG,CYL-CAL ROLLER 15.6G KY

93310-218A6-00

$38.99

12

PISTON STD

235-11631-00-96

Unavailable

12

PISTON 1 O/S 0.25

(235-11635-00-00)

Unavailable

12

PISTON 2 O/S 0.50

(235-11636-00-00)

Unavailable

12

PISTON 3 O/S 0.75

(235-11637-00-00)

Unavailable

12

PISTON 4 O/S 1.00

(235-11638-00-00)

Unavailable

13

PISTON RINGSET STD

168-11601-00-00

Unavailable

13

PISTON RINGSET 1ST

(168-11601-10-00)

Unavailable

13

PISTON RINGSET 2ND

(168-11601-20-00)

Unavailable

13

PISTON RINGSET 3RD

(168-11601-30-00)

Unavailable

13

PISTON RINGSET 4TH

(168-11601-40-00)

Unavailable

13

RING SET STD KS

235-11601-00-00

Unavailable

13

RING SET 1ST KS

(235-11601-10-00)

Unavailable

13

RING SET 2ND KS

(235-11601-20-00)

Unavailable

13

PISTON RINGSET 3RD

(235-11601-30-00)

Unavailable

14

PIN, PISTON

168-11633-00-00

Unavailable

15

CLIP 6041163400

93450-20026-00

Unavailable

16

SHIM, CRANK 1

(168-11561-00-03)

Unavailable

17

SHIM, CRANK 2

(156-11562-00-05)

Unavailable

18

BEARING

(93306-30505-00)

Unavailable

19

OIL SEAL, SW-TYPE

93103-20046-00

Unavailable

20

BEARING

93306-30604-00

Unavailable

21

CIRCLIP, OUTER

93440-78011-00

Unavailable

22

KEY,WOODRUFF

90280-04005-00

Unavailable

23

OIL SEAL, SW-TYPE (SW42-78-10)

93103-42047-00

Unavailable

24

PIN,DOWEL (168)

93604-12037-00

Unavailable

25

O-RING (437)

93210-24235-00

Unavailable

26

GEAR, PRI DRIVE

(168-16111-00-00)

Unavailable

27

GEAR, DRIVE

(168-13188-00-00)

Unavailable

28

WASHER(JN5)

92907-16100-00

Unavailable

29

NUT

90170-16425-00

Unavailable
