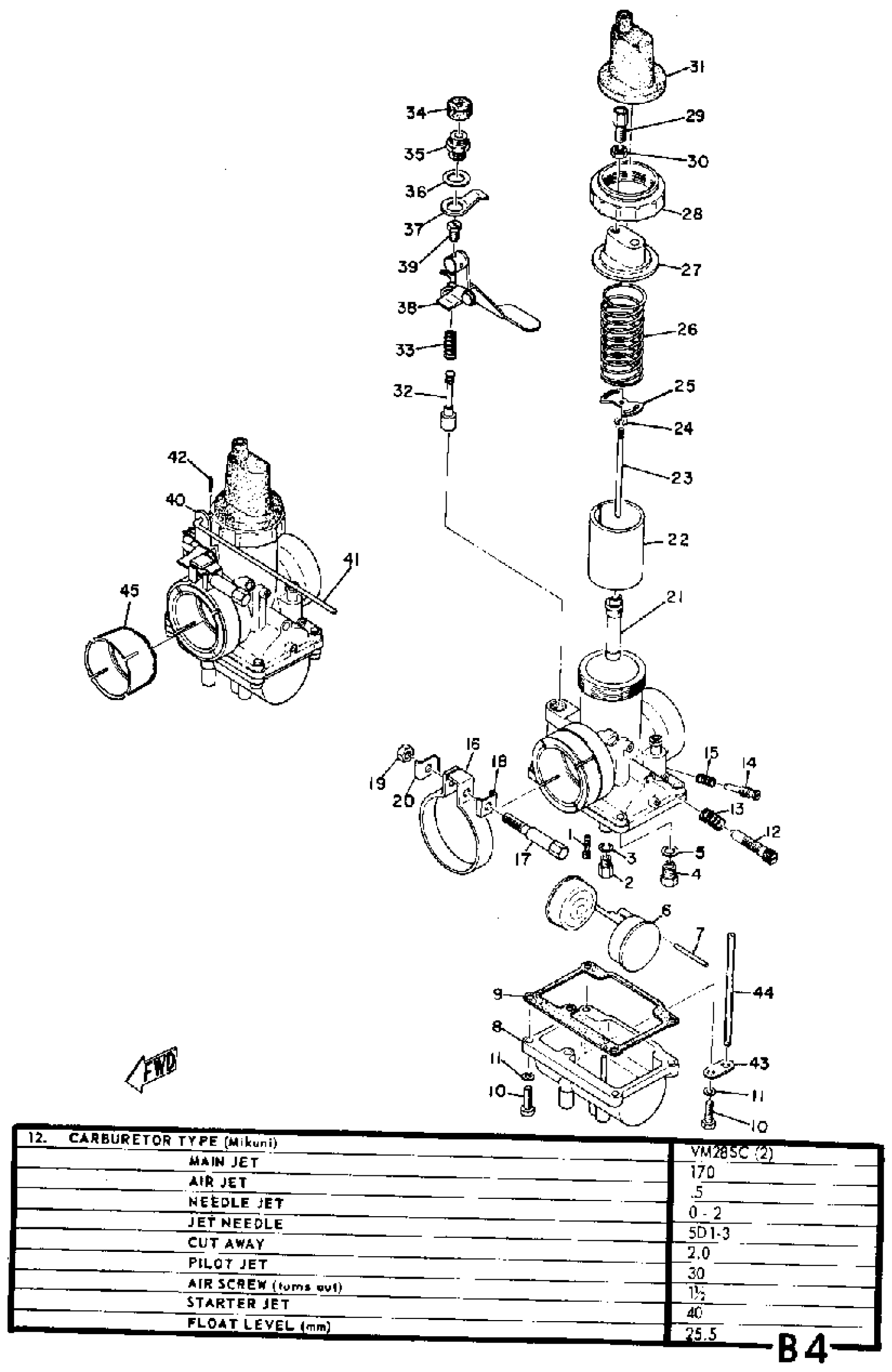

Yamaha R3 (R3) 1969 CARBURETOR Diagram

#

Description
Price

1

JET, PIL0T (# 30)

193-14142-30-A0

Unavailable

1

CARBURETOR ASSEMBLY 1

(211-14101-61-00)

Unavailable

2

JET, MAIN #160

137-14143-32-00

$9.99

2

JET, MAIN #170

137-14143-34-00

$7.99

2

JET, MAIN #180

137-14143-36-A1

Unavailable

2

CARBURETOR ASSEMBLY 2

(211-14102-61-00)

Unavailable

3

WASHER,MAIN JET

137-14153-00-00

$7.99

4

. NEEDLE VALVE ASSEMBLY

137-14190-20-00

Unavailable

5

WASHER, VALVE SEAT

127-14195-00-00

$7.99

6

FLOAT

(168-14185-00-00)

Unavailable

7

PIN, FLOAT

127-14186-00-00

$6.65

8

BODY, FLOAT CHMBR 1

(168-14181-01-00)

Unavailable

9

GASKET, FLOAT CHAMBER

500-14184-00-00

$47.99

10

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

11

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

12

THROTTLE SCREW SET

40T-14103-00-00

Unavailable

13

SPRING, THROTTLE STOP

137-14133-00-00

Unavailable

14

AIR SCREW SET

23X-14104-00-00

Unavailable

15

SPRING, AIR ADJUSTING

127-14134-00-00

Unavailable

16

CLIP

(168-14127-00-00)

Unavailable

17

SCREW, BODY FITTING

(168-14125-02-00)

Unavailable

18

WASHER

(168-14128-00-00)

Unavailable

19

NUT, HOLDING

(168-14164-00-00)

Unavailable

20

WASHER

(168-14129-00-00)

Unavailable

21

NOZZLE, MAIN

(168-14141-32-00)

Unavailable

22

VALVE, THROTTLE 1

(211-14112-20-00)

Unavailable

22

VALVE, THROTTLE 2

(211-14113-20-00)

Unavailable

23

. NEEDLE

168-14116-01-00

Unavailable

24

CLIP

3FA-14137-00-00

Unavailable

25

SEAT, SPRING

(168-14136-00-00)

Unavailable

26

SPRING, THRTL VALVE

(168-14131-00-00)

Unavailable

27

TOP, MIXING CHAMBER

(211-14158-00-00)

Unavailable

28

CAP, MIXING CHAMBER

(168-14168-01-00)

Unavailable

29

CABLE ADJUST SCREW SET

12G-14106-00-00

Unavailable

30

NUT, WIRE ADJUSTING

127-14161-00-00

Unavailable

31

CAP

(156-14169-00-00)

Unavailable

32

PLUNGER, STARTER

132-14171-00-00

Unavailable

33

SPRING, PLUNGER

156-14135-00-00

Unavailable

34

COVER, PLUNGER CAP

132-14173-00-00

Unavailable

35

CAP, PLUNGER

(132-14174-00-00)

Unavailable

36

WASHER, STARTER LVR

(132-14179-00-00)

Unavailable

37

. PLATE, STARTER LEVER

(170-14178-00-00)

Unavailable

37

. PLATE, STARTER LEVER

(170-14178-00-00)

Unavailable

38

LEVER, STARTER 1

(168-14175-01-00)

Unavailable

39

SCREW, ROD

(193-14486-00-00)

Unavailable

40

LEVER, STARTER 2

(168-14176-00-00)

Unavailable

41

ROD, STARTER LEVER

(170-14177-00-00)

Unavailable

42

. PIN, COTTER

91490-12012-00

Unavailable

43

PLATE

132-14146-00-00

Unavailable

44

PIPE, AIR VENT

183-14197-01-00

Unavailable

45

INSULATOR

168-14156-00-00

Unavailable
