10- Electrical Accessories (Quest XT)

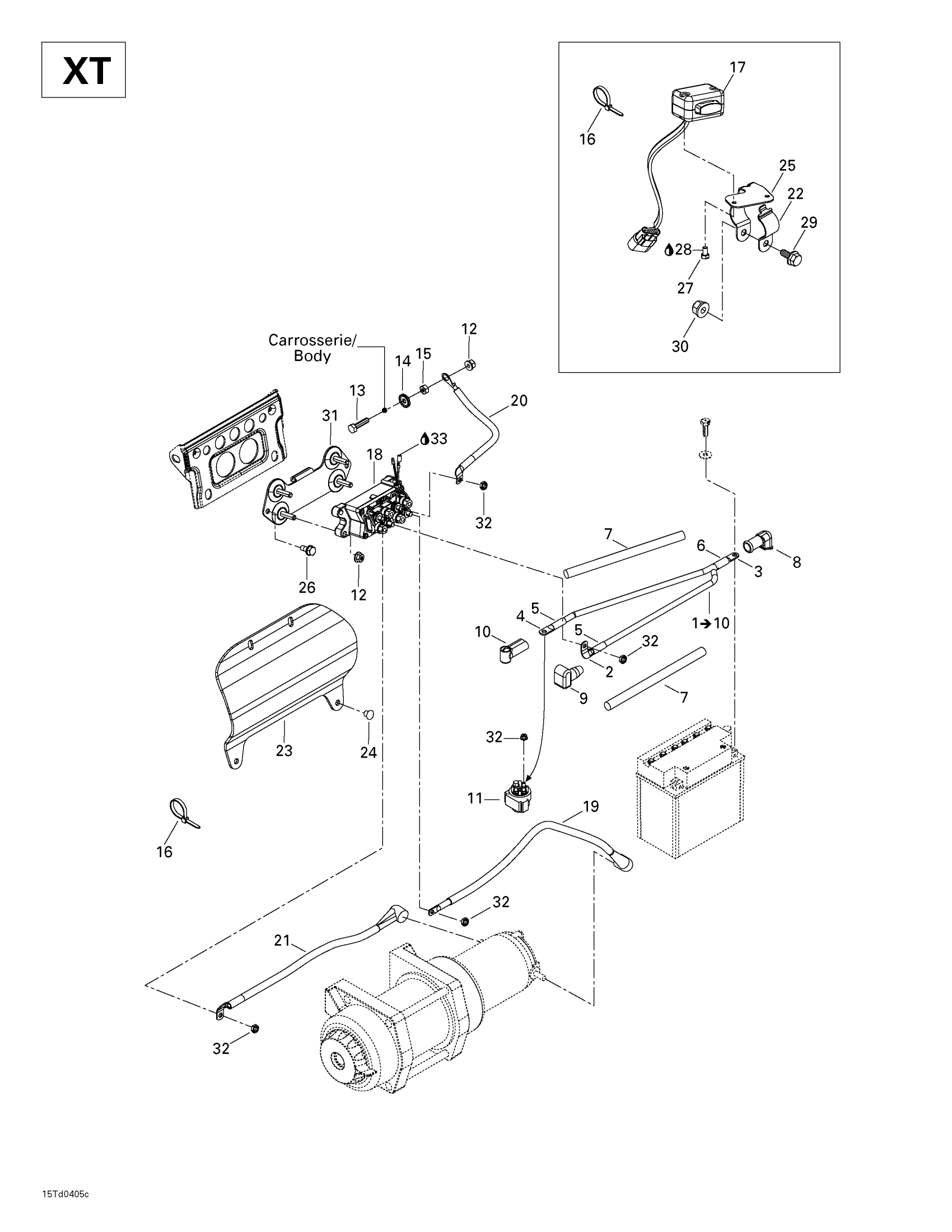

Can-Am Quest XT, 2004 10- Electrical Accessories (Quest XT) Diagram
#
1
Cable, Battery-solenoid | Includes 1 to 10 / Traxter CVT XT
710000434
Unavailable
2
TERMINAL_FEMALE - Call your local BRP dealership | STD Models
710000475
Unavailable
3
FLAT OPEN BAREL 6.6 MM - Call your local BRP dealership
710000478
Unavailable
4
Flat Open Barel 6.6 mm
710000479
Unavailable
5
Was 710000483 Heat Shrink Tubing
219704447
Unavailable
6
Shrink Tubing | XT Models
275500578
Unavailable
7
PROTECTOR TUBE, 9 MM - Call your local BRP dealership
710000497
Unavailable
8
Protector Cap
710000495
Unavailable
9
Protector Cap | STD Models
710000523
Unavailable
10
Protector Cap
710000527
Unavailable
11
Starter Relay
710000344
Unavailable
12
Elastic stop nut M6 | Quest XT.
232261414
Unavailable
13
Hex. Screw M6 X 20 | XT Models
207162044
Unavailable
14
External Serrated Lock Washer 6 mm
234461608
Unavailable
15
Hex. Nut M6
232061414
Unavailable
16
Tie-Rap 180 mm
414115200
Unavailable
Tie Wrap 368 mm
293750008
Unavailable
17
WINCH INTERRUPTER - Call your local BRP dealership | XT Models, Includes 13 To 16
710001001
Unavailable
18
Winch Solenoid | XT Models
710001000
Unavailable
19
Winch Solenoid Cable Ass'y | Includes 17 to 21
710000438
Unavailable
20
Frame Solenoid Cable Ass'y | Includes 22 to 25
710000439
Unavailable
21
Winch Solenoid Cable Ass'y | Includes 26 to 31
710000440
Unavailable
22
Collar
710000566
Unavailable
23
Protector Pad
710000511
Unavailable
24
Black, Dart
293730011
Unavailable
25
Support, Black
710000564
Unavailable
26
Hex. Forming Screw M6 X 10
210261050
Unavailable
27
Hex. Cap Screw 6-32 X 1/4" | XT Models
250000153
Unavailable
28
Loctite 243, 10 ml
293800060
Unavailable
29
Hex. Flange Screw M6 X 16
207661654
Unavailable
30
Hex. Flange Elastic Nut M6
233261494
Unavailable
31
SOLENOID SUPPORT, BLACK - Call your local BRP dealership
710000535
Unavailable
32
Elastic Stop Nut M6
232561414
Unavailable
33
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
