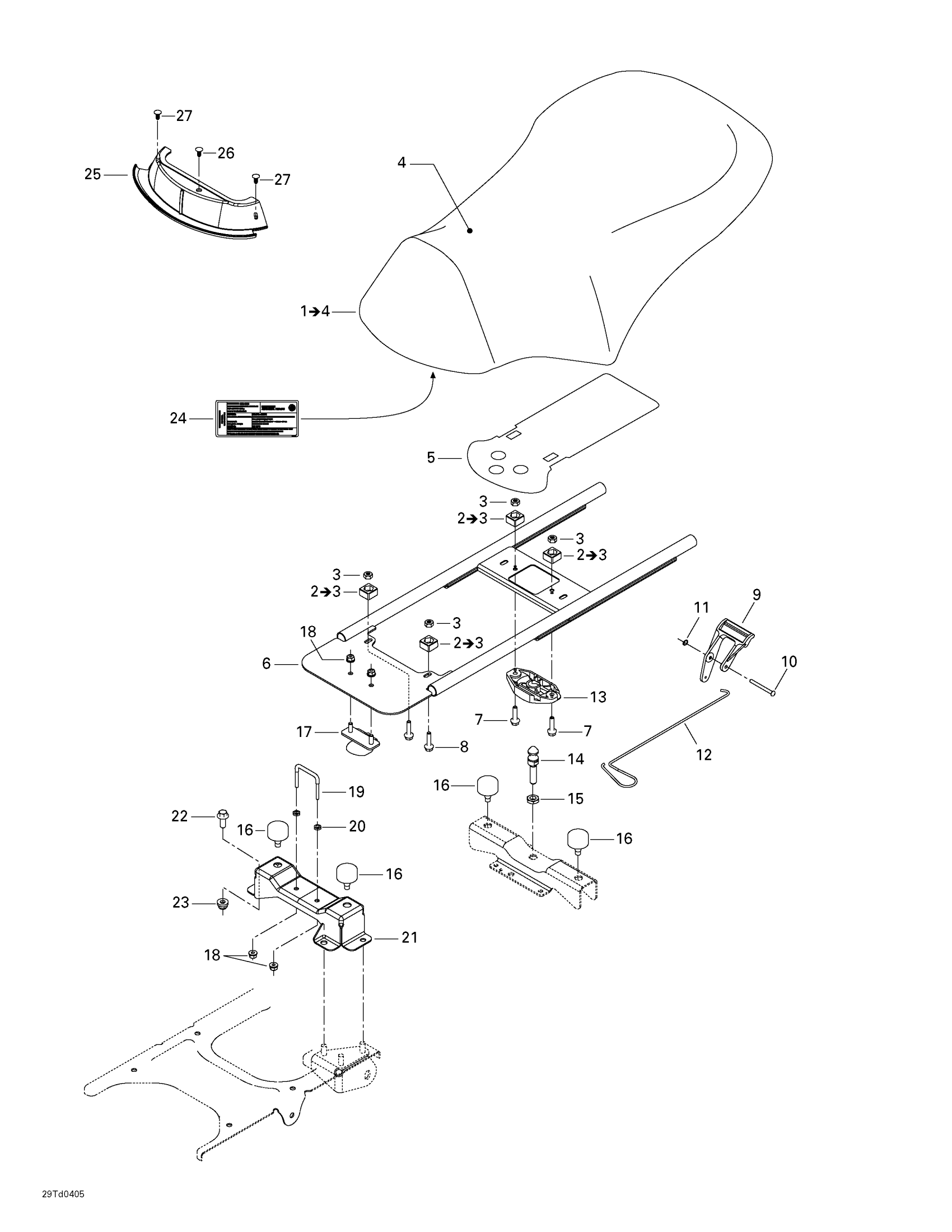

Can-Am Quest XT, 2004 09- Seat Diagram

#

Description
Price

1

Seat ass'y | Includes 1 - 4.

708000238

Unavailable

2

NUT HOUSING ASS'Y M6 - Call your local BRP dealership | Includes 2 To 3

708000046

Unavailable

3

Elastic Stop Nut M6

232561414

Unavailable

4

Seat Cover

708000233

Unavailable

5

Reflective Sheet

708000160

Unavailable

6

Seat Support

708000299

Unavailable

7

Hex. Flange Screw M6 X 25

207662544

Unavailable

8

Hex. Flange Screw M6 X 16

207661644

Unavailable

9

Lever Latch

708000010

Unavailable

10

SOLID RIVET 3/16 X 1-7/8 - Call your local BRP dealership

293150062

Unavailable

11

Push Nut

389804300

Unavailable

12

SPRING - Call your local BRP dealership

708000015

Unavailable

13

Latch Base

708000034

Unavailable

14

SEAT STUD - Call your local BRP dealership

291000945

Unavailable

15

Hex. Jam Nut M10

232100600

Unavailable

16

Rubber Stopper

708000758

Unavailable

17

Seat Hook

291001479

Unavailable

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

19

SEAT HOOK - Call your local BRP dealership

291000468

Unavailable

20

Hex. Nut M6

232061600

Unavailable

21

Seat Support

708000088

Unavailable

22

Hex. Flange Screw M8 X 20

207682044

Unavailable

23

Hex. Flange Elastic Nut M8

233281414

Unavailable

24

Emission label (M-500)

704900626

Unavailable

Emission Label

704900627

Unavailable

25

HEAT SHIELD - Call your local BRP dealership

708000274

Unavailable

26

Tuflok Plastic Rivet

293150230

Unavailable

27

Avdel Rivet

293150027

Unavailable
