09- Frame And Luggage Racks

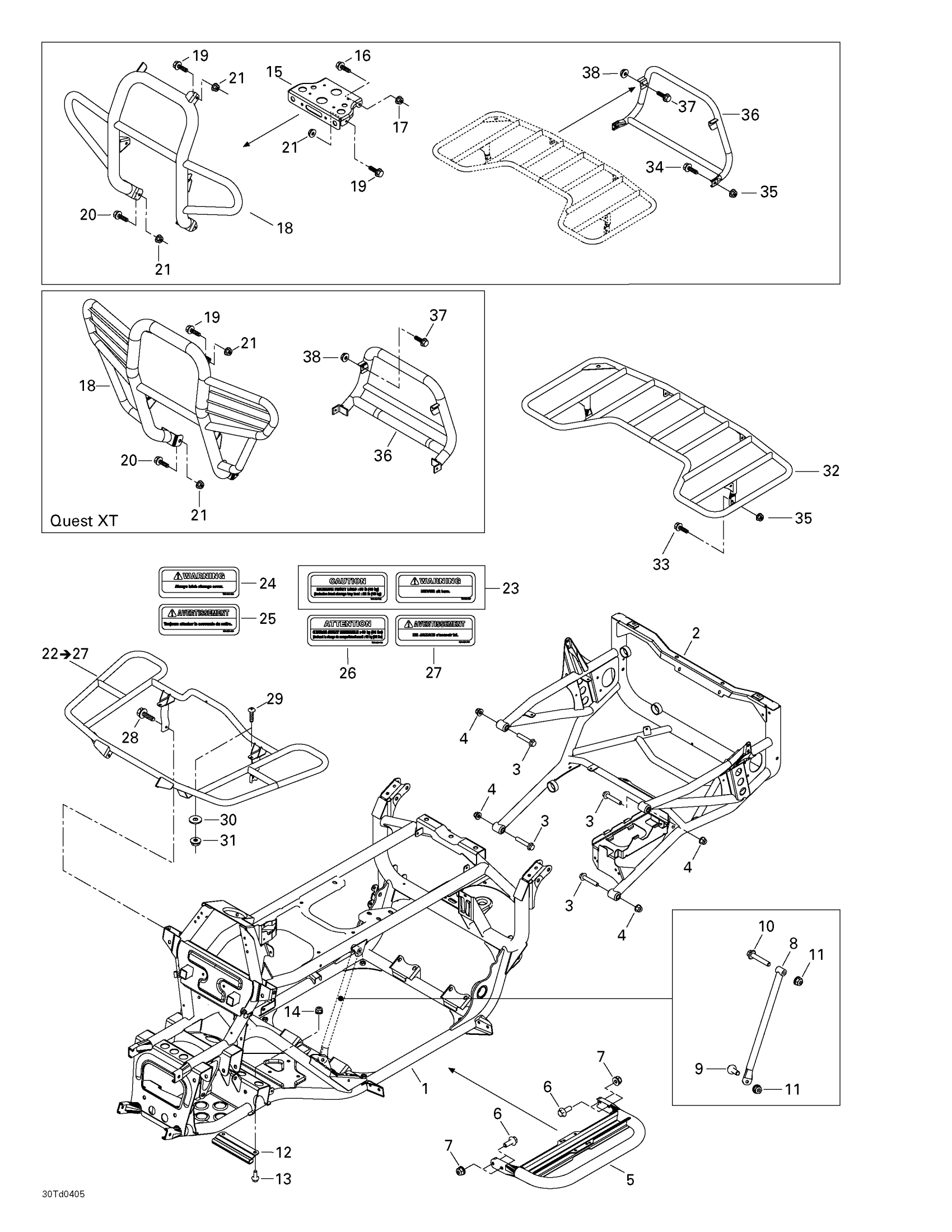

Can-Am Quest XT, 2004 09- Frame And Luggage Racks Diagram
#
1
Frame, Black
705200718
Unavailable
2
Frame Extension, Black
705200546
Unavailable
3
Hex. Flange Screw M10 X 55
207605544
Unavailable
4
Hex. Flange Elastic Nut M10
233201414
Unavailable
5
Footrest, Black
705000610
Unavailable
6
Hex. Flange Screw M8 X 20
207682044
Unavailable
7
Hex. Flange Elastic Nut M8
233281414
Unavailable
8
RH Removable Brace
705200404
Unavailable
LH Removable Brace
705200405
Unavailable
9
Hex. Flange Screw M8 X 25
207682544
Unavailable
10
Hex. Flange Screw M8 X 50
207685044
Unavailable
11
Hex. Flange Elastic Nut M8
233281414
Unavailable
12
Bracket, Black
705200575
Unavailable
13
Hex. Flange Screw M6 X 16
207661644
Unavailable
14
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
15
WINCH LATCH, BLACK - Call your local BRP dealership
705200196
Unavailable
16
Hex. Flange Screw M8 X 20
207682044
Unavailable
17
Hex. Flange Elastic Nut M8
233281414
Unavailable
18
FRONT BUMPER, BLACK - Call your local BRP dealership | Traxter 5 Speed XT
705000585
Unavailable
Front Bumper, Black | Traxter 5 Speed STD
705000591
Unavailable
19
Hex. Flange Screw M8 X 20
207682044
Unavailable
20
Hex. Flange Screw M8 X 25
207682544
Unavailable
21
Hex. Flange Elastic Nut M8
233281414
Unavailable
22
Front Luggage Rack Kit (Black) | Includes 22 - 27.
703500350
Unavailable
23
Warning Label, Front Load | Includes 8 - 9.
704900037
Unavailable
24
Warning Label, Tray Cover
704900038
Unavailable
25
Warning Label (French) | (Front Trunk Cover)
704900039
Unavailable
26
Caution Decal, Maximum Load | French Version
704900016
Unavailable
27
WARNING LABEL (FRENCH) - Call your local BRP dealership | (Do Not Sit)
704900018
Unavailable
28
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
29
TRUSS PHILLIPS SCREW M6 X 25 - Call your local BRP dealership
250000035
Unavailable
30
Flat Washer
224060201
Unavailable
31
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
32
Rear luggage rack
705000784
Unavailable
33
Hex. Flange Screw M8 X 20
207682044
Unavailable
34
Hex. Flange Screw M8 X 50
207685044
Unavailable
35
Hex. Flange Elastic Nut M8
233281414
Unavailable
36
Rear bumper | STD Quest Std.
705000793
Unavailable
Rear Bumper, Black | XT
705000799
Unavailable
Rear Bumper, Black | Traxter 5 Speed STD
705000602
Unavailable
Rear bumper (silver)
705000210
Unavailable
37
Hex. Flange Screw M8 X 20
207682046
Unavailable
38
Hex. Elastic Flange Nut M8
233281416
Unavailable
